    Modern Head Exit Device

    SKU: KIC-5500-R-36-32D

    KeyinCode



    Your new keyless exit. The KeyinCode 5000 Modern Head Exit Device provides heavy-duty reliable access for schools, universities, and commercial buildings or where high traffic operation is required. Featuring a durable housing and multiple mounting holes for easy installation.

    Finish

    Quantity left : 5

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $61.35

    • Matching KIC5500PK Exit Trim available
    • Universal mount for use in institutions, schools, universities, and commercial buildings or where reliable operation is needed

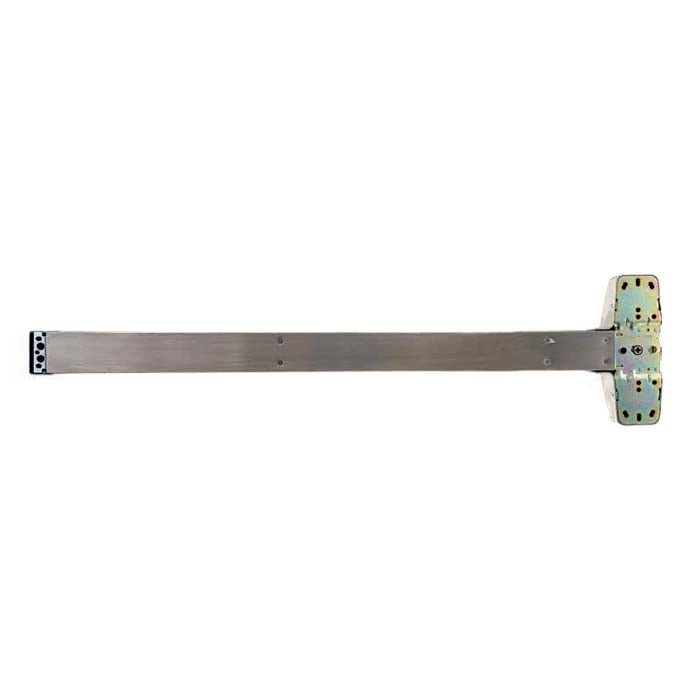

    • Rail assemblies are heavy gauge steel, cast chassis with multiple mounting holes (through-bolts to and through trim)
    • Full size steel (Panic Grade) and steel construction for (Fire Grade) allows for through-bolt of trim and retrofit of device to popular footprint
    • Fits 25 in. to 36 in. door (model available to fit up to 48 in. door), Non-handed for use on right or left opening doors, for vertical rod 36 in. x 84 in. or 48 in. x 96 in. available
    • ANSI A156.3, Grade 1 heavy duty exit device in surface mount rim and vertical rod designs

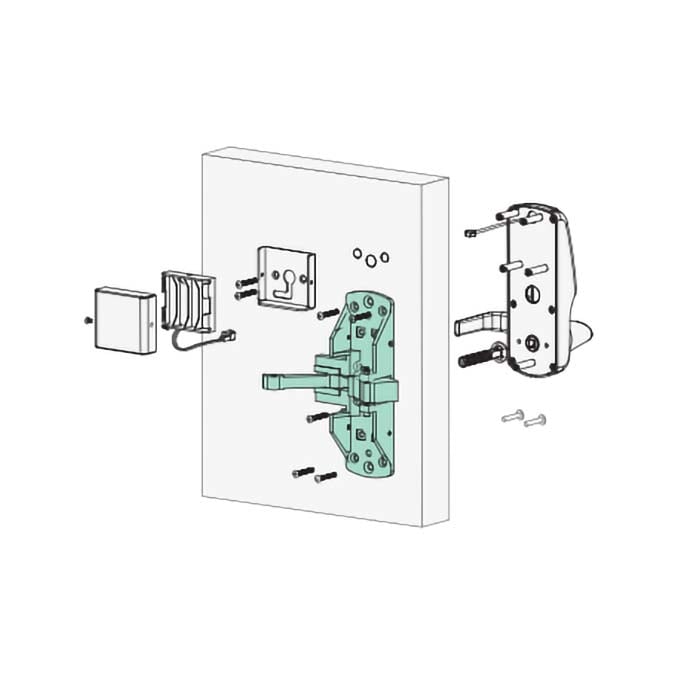

    • Can be used with various trim including rim cylinder with pull handle, Cylindrical keyed lever, escutcheon keyed lever, escutcheon keyed thumb-latch or door pull, passage or dummy
    • Includes complete installation kit; latch-bolt strike, shims, fasteners, strike plates, mounting templates and easy instructions
    • For Doors 1 3/4 in. standard
    • Alarm Kit available

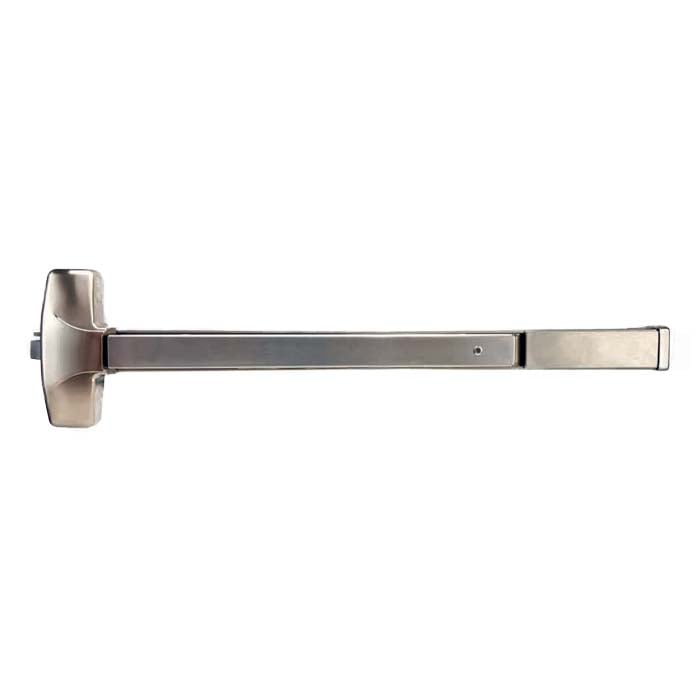

    The KeyinCode 5000 Series Modern Head Exit Device provides heavy-duty reliable access for schools, universities, and commercial buildings or where high traffic operation is required. Featuring a durable housing made from non-ferrous cast and steel with multiple mounting holes for easy installation. Its “Architectural Design” allows for the through-bolt of exit trim and retrofitting to popular footprints. This adaptable exit device can be used with various trim, including rim cylinder with pull handle, cylindrical keyed lever, escutcheon keyed lever, and much more. KeyinCode 5000 series fits door widths of 25 to 36 inches and left or right opening doors. Installation kit includes latch-bolt strike, shims, fasteners, strike plates, mounting templates and easy operating instructions.

    Basic

    Manufacturer KeyinCode
    ANSI Rating A156.3, Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Finish Aluminum, Duronodic, Stainless Steel
    Warranty Lifetime Manufacturer
    Locking Device Panic/Exit
    Brand KeyinCode

    Door requirements

    Security

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Dimensions 8 5/8 (H) x 33 3/4 (W) x 3 1/4 (D) in.
    Door Stile Width Minimum 3 3/4 in.
    Weight 11 lbs

    KeyinCloud offers a Cloud Based Access Control Platform (ACaaS) eliminating the need for local PC’s, Panels, Wiring, or Software.

    USE YOUR EXISTING WIFI NETWORK
    KeyinCloud enabled locks directly connect to existing WiFi infrastructure or we can connect to a variety of 3rd Party Locks via Z-Wave Gateways.

    EVERYTHING IN ONE DASHBOARD
    KeyinCloud’s centralized, easy to use dashboard puts everything in one place. Manage all your properties, doors and users from anywhere via our App or Mobile Web Portal.

    CENTRALIZED ACCESS MANAGEMENT
    Manage access for employees, guests and vendors across multiple locations and partition the management of our solution all the way down to a single door/tenant.

    NOTIFICATIONS AND HISTORY
    Always know who’s coming and going with email and text notifications along with a complete audit trail of events all searchable based on detailed criteria.

    NO LOST KEYS, NO REKEYING
    Remove the hassle of rekeying doors and handing off keys to employees and guests.

    SCALES WITH YOUR BUSINESS
    KeyinCloud software scales with your needs, whether you are managing a small business or a large enterprise.

    MANAGED ACCESS FOR EVERY DOOR
    Leveraging existing WiFi allows us to provide managed access to doors that may be cost prohibitive to a hard-wired Access System.

    3RD PARTY INTEGRATION – OPEN API & WEBHOOKS
    Robust and comprehensive API allows for 3rd party integrations, including Mercury Security, Vera and August Lock along and more.
