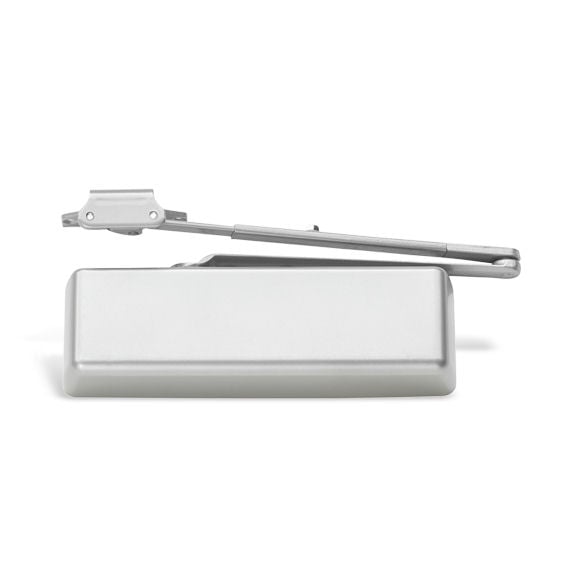

LCN 4040XP RWPA

Name: LCN 4040XP RWPA
Brand: GoKeyless
SKU: 4040 XP Rw/PA 689
Price: 515.16 USD
Availability: InStock

Heavy Duty Door Closer

SKU: 4040 XP Rw/PA 689

LCN

Double Lever Regular Arm with Parallel Arm System
Stronger, smarter and built for the real world. This heavy-duty closer is LCN's most durable surface-mounted closer, designed for the most demanding applications. Ideal for schools or public buildings where heavy or abusive usage is expected, exterior doors, doors subject to draft, winds, or air pressure differentials, and high frequency doors such as those on department stores, malls, or mixed use tenancies. Includes 30 year manufacturer warranty.

$515.16

Features
Description
Specifications

Body construction

Cast iron cylinder with full-complement bearing
3/4″ diameter piston
Double-heat treated steel pinion journal
Arm system: Double lever regular arm with a parallel arm system. Main arm is parallel to the face of the closed door

Quality and durability

All-weather Liquid X fluid
LCN patented Green Dial spring force indicator
30-year warranty

Installation

Universal non-handed
Peel-n-stick template and snap-on cover
One size fits all with adjustable spring sizes 1-6
Perimeter or interior door applications

More Features

Adjustable hydraulic back-check cushions opening swing prior to 90°
Separate regulation of general closing speed and latching speed
Joints in regular arm and shoe adapt to uneven trim
Reversible shoe to boost latching power on double lever arms
Available in a wide range of standard or optional custom powder
Coat finishes to blend with door and frame
Plated finishes available to accent door and frame
Not designed for exterior mounting or exposed to elements.

No need to turnaround and shut the door with this new, heavy duty, commercial grade closer. Made by LCN the Super Smoothee series has tremendous life cycle value, and is engineered so well that prior generations of closers have lasted 10,000,000 cycles. The 4040XP Series meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. This closer is cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. The 4040XP Series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations. LCN peel-n-stick templates assure quick and accurate installation, and the patented LCN Green Dial takes the guesswork out of spring force adjustments.

Basic

Manufacturer	Allegion
ANSI Rating	Grade 1 (Best)
BHMA Rating	Grade 1 (Best)
Warranty	30 Year Manufacturer
Brand	LCN

Door requirements

Door Handing	Non-Handed
Mounting	Hinge Side, Top Jamb

Security

Dimensions

Door Size	Up to 48 in. exterior, Up to 60 in. interior
Weight	12 lbs

LCN 4040XP RWPA

Basic

Door requirements

Security

Dimensions
