  • LCN 4642-REG AL

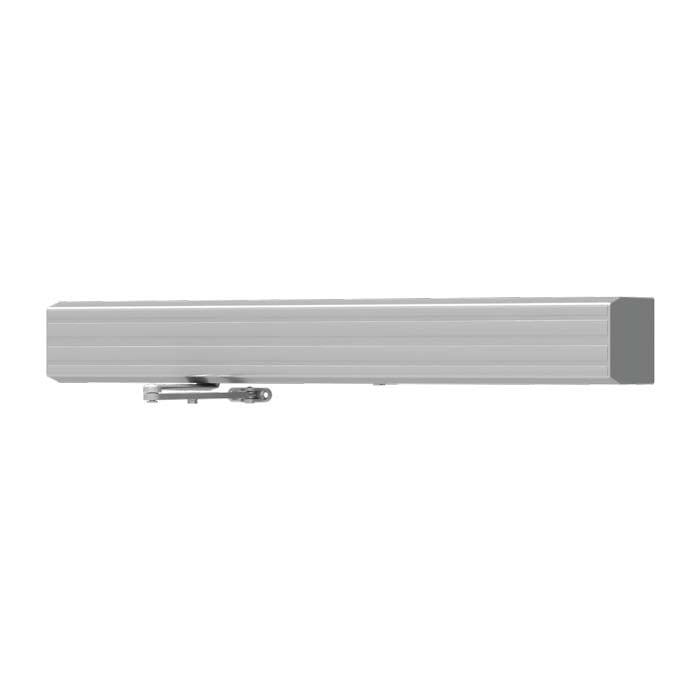

    Electrohydraulic Door Operator

    SKU: 4642-REG AL

    LCN



    We'll get the door. The LCN 4642 Door Operator provides easy access for the elderly and people with disabilities. This electrically powered, low-energy operator is ideal for multi-door applications. Equipped with a “No Destruct” drive system that resists damage to the unit.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $1,207.89

    • Non-handed design
    • Meets ADA requirements (power mode)
    • Non-sized cylinders for interior doors to 54 in. and exterior doors to 42 in.
    • Aluminum finish standard, various finishes available via special order
    • Black end caps
    • Optional plated finish on cover, arm and fasteners
    • Standard metal cover

    Body construction

    • Digital control box
    • On-board power supply
    • Factory default memory

    Quality and durability

    • On-board diagnostics
    • “No Destruct” drive system reduces chance of damage
    • 2-year warranty

    Installation

    • The 4640 Series mounts top jamb (push side) with a double lever regular arm
    • Plug-and-play connections
    • Installs without guard rails or safety mats
    • Wood and machine screws

    The LCN 4642 Door Operator provides easy access for the elderly and people with disabilities. This electrically powered, low-energy power operator is ideal for multi-door applications. Designed for manual with occasional automatic operation, such as at a doctor’s office or nursing home. Features a digital control box for easy adjustments, on-board power supply, and a “No Destruct” drive system that reduces chances of damage to the unit. Equipped with non-sized cylinders for installation on interior doors up to 54 in. and exterior doors up to 42 in. wide. The 4640 Series mounts with the top jamb “push side” with a double lever regular arm. No need for guard rails or safety mats during install. Plug-and-play connections make electrical setup safe and simple. Create a touchless entry system at public restrooms or retail entrances by pairing the LCN 4642 with PIR switches to help keep people healthy and safe.

    Basic

    Manufacturer LCN
    ANSI Rating Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Finish Aluminum
    Warranty 2 Year Manufacturer
    Brand LCN

    Door requirements

    Door Handing Non-Handed
    Mounting Top Jamb

    Security

    Dimensions

    Certifications ADA
    Dimensions 4 3/8 (H) x 33 1/2 (W) x 12 5/32 (D) in.
