Precision mounting made simple. The Locinox CLB-TIGER Chain Link Bracket for the Tiger Gate Closer provides easy installation of the Tiger gate closer on round chain link fences. Installed between the gate closer and post for precise and secure mounting.
Aluminum anodized assembly brackets for Locinox Tiger gate closer on chain link fences
Diameter post: 1 7/8 in. to 4 in.
Diameter gate profile: 1 3/8 in. to 1 7/8 in.
All fixations included
Drilling jig included for easy installation
Gap from 1 1/16 in. to 1 11/16 in.

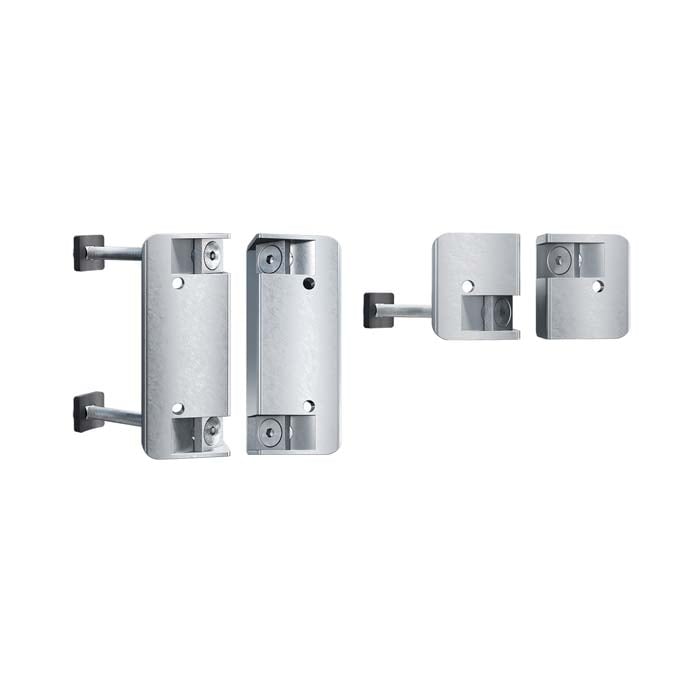

High-quality aluminum bracket for installation of Tiger gate closer on round chain link fences. The brackets are installed between gate closer and post. A perfect, firm and easy installation is guaranteed thanks to the drilling jig. The brackets for the Puma hinge are included.
Basic
Manufacturer
Locinox
Brand
Locinox
Door requirements
Security
Dimensions
Dimensions
4 7/8 (H) x 2 (W) x 1 5/8 (D) in.
Weight
2.4 lbs

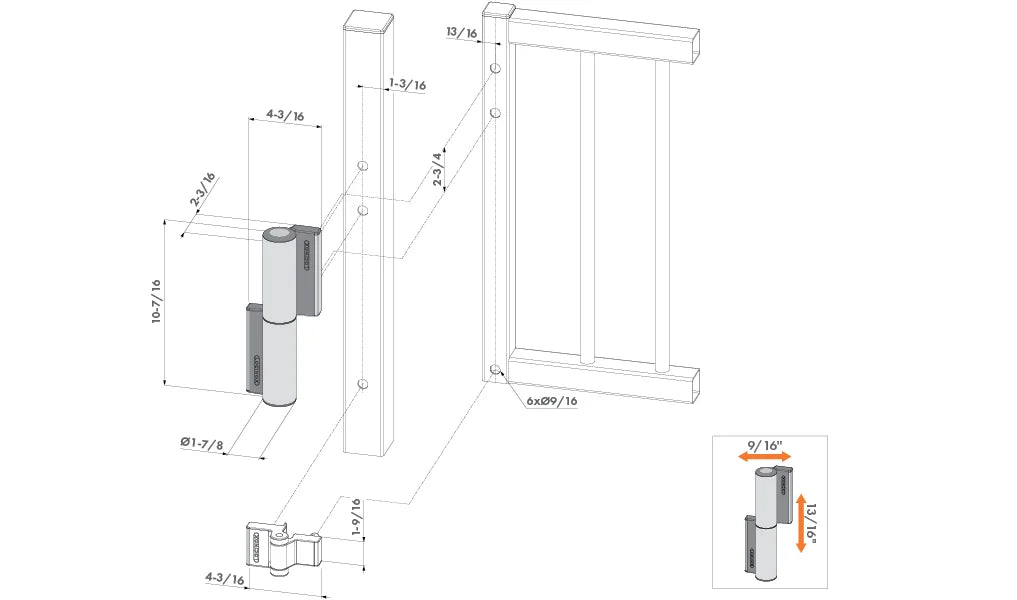

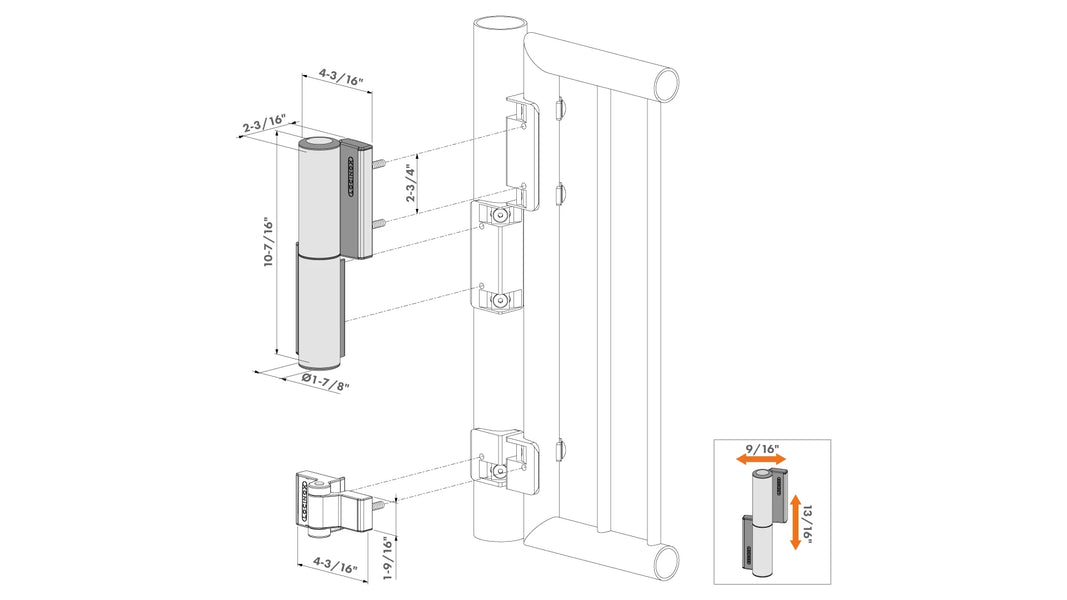

LOCINOX TIGER DIMENSIONS & LOCINOX TIGER ON POST DIMENSIONS
