  • Locknetics MG1200

    Electromagnetic lock

    SKU: MG1200

    Locknetics

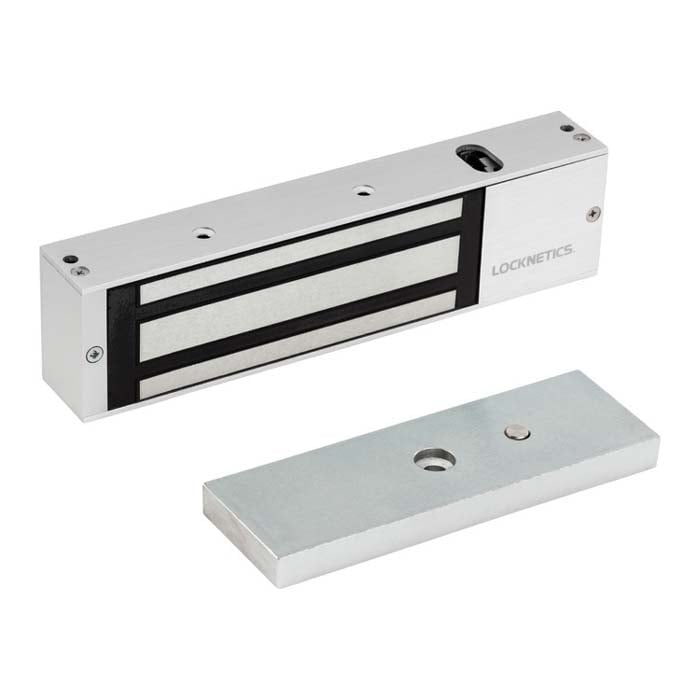

    Just close it. The Locknetics MG1200 Electromagnetic lock provides a dependable, cost effective solution for doors that don't need an electric strike. Its slim profile, small footprint and 1200 lbs of holding force are ideal for a wide range of high security applications. Field selectable for easy voltage changes on the go.

    Option

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $29.18

    • 1200 lb. hold force model for high security applications – 600 lb. hold force model available
    • Bi-colored LED sensor provides easy lock status identification
    • Adjustable mounting plate for quick, simple installation
    • Removable Printed Circuit Board (PCB) for easy configuration
    • Built-in voltage spike suppressor
    • Field selectable 12/24 VDC
    • Power supplieskeypads/card readersswitches, and door closers available to complete your project
    • Stainless steel housing in 630 satin finish
    • 5-year limited warranty

    DT models only:

    • Door status sensor for Single Pole Double Throw (SPDT) switch to determine if door is open or closed
    • Timer to provide a 0-90 second delay for relocking

    Need a secure locking solution but don’t want to change up your lock hardware or strike? Look no further! The Locknetics MG1200 provides a dependable, cost effective solution for doors that don’t need an electric strike. Its slim profile, small footprint and 1200 lbs of holding force are ideal for a wide range of high security applications. Know at a glance if your door is locked with the bi-colored LED sensor. Easily configure the lock with the removable Printed Circuit Board (PCB). A built in voltage spike suppressor protects your lock against voltage increases. An adjustable mounting plate is included for quick and simple installation. This mag lock is field selectable 12/24 VDC making voltage changes on the fly to match your needs.

    Offered in single and double lock configurations for both standard and Door Status Sensor with Timer (DT) models. The door status sensor for Single Pole Double Throw (SPDT) switch determines if door is open or closed. The timer allows a set time between 0-90 seconds delay for relocking.

    Basic

    Manufacturer Locknetics
    Finish Satin Stainless Steel
    Holding Force 1200 lbs
    Solution Electronic
    Voltage 12/24 VDC, Field Selectable
    Warranty 5 Year Limited Manufacturer
    Brand Locknetics

    Door requirements

    Security

    Dimensions

    Armature Dimensions 7 1/3 (H) 2 2/5 (W) x 3/5 (D) in.
    Certifications UL 10C, UL 294
    Dimensions 10 1/2 (H) x 2 7/8 (W) x 1 1/2 (D) in.
    Weight 5 lbs
