    Locknetics RS200

    Electric Rim Strike

    SKU: ESTK-100 RS200-LBM-US10B

    Locknetics

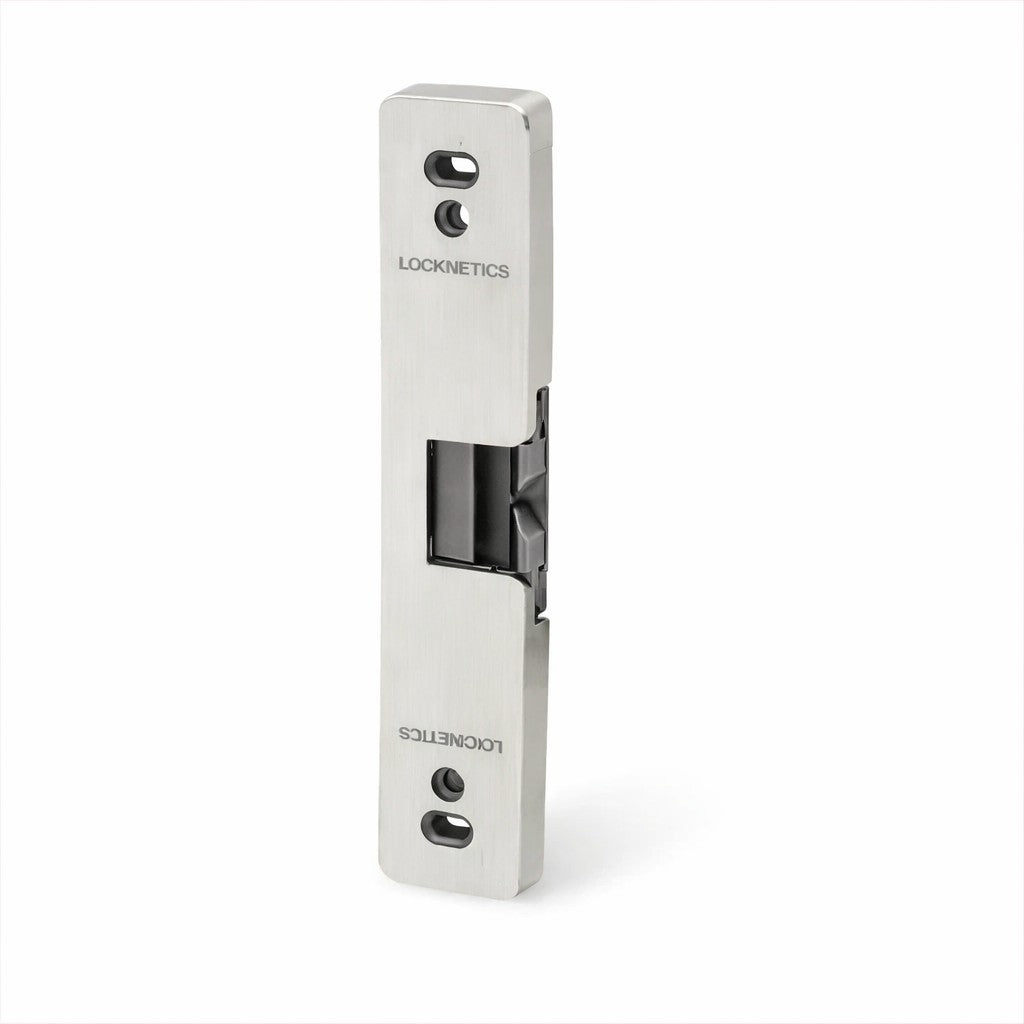

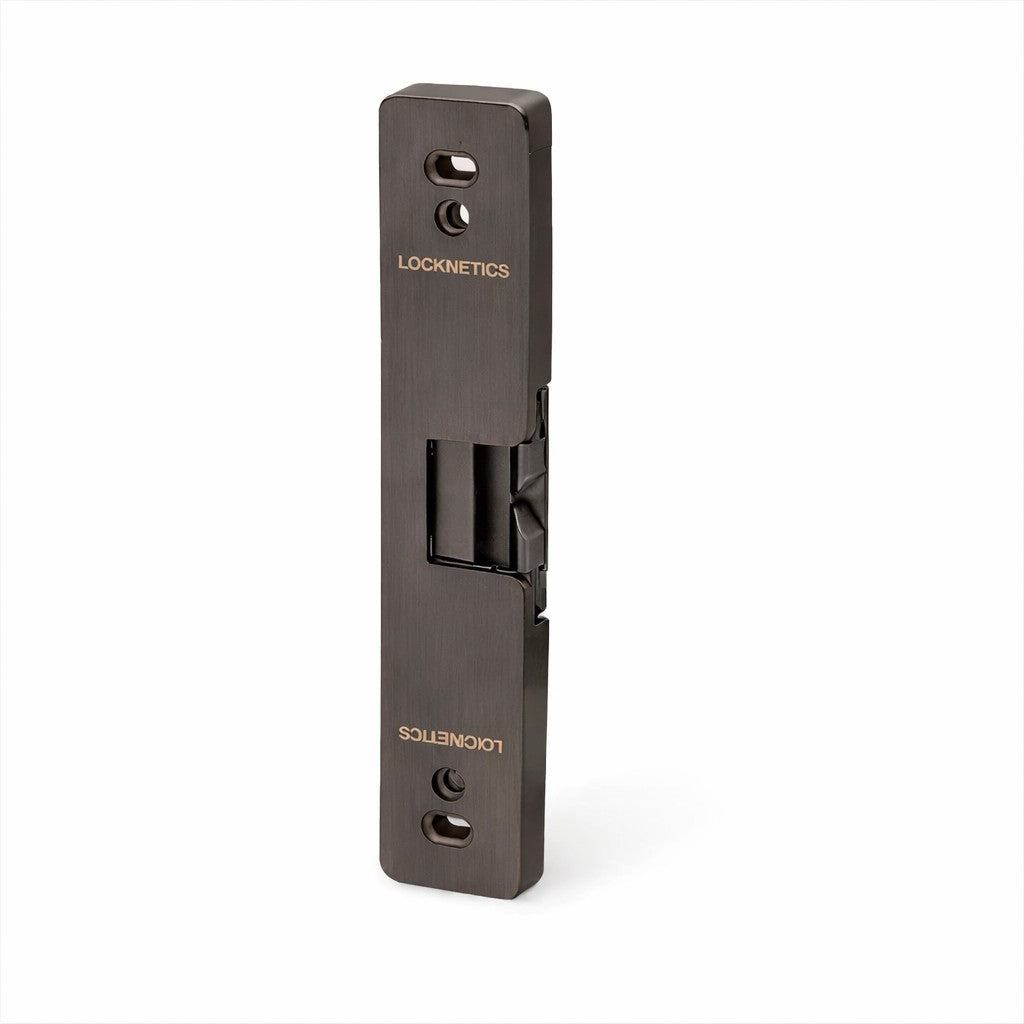

    You won't strike out with this! The Locknetics RS200 is a surface mounted electric rim strike designed for versatility with a sleek low-profile cover case. With slotted mounting holes and multiple spacers, this strike fits just about every stile of door.

    Finish
    Option

    Quantity left : 2

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $84.03

    • Surface mounted for easy installation – RS300 model with 3/4 in. rim strike and Fire Rated models also available
    • Power supplieskeypads, and card readers available
    • Slotted mounting holes for increased adjustment flexibility
    • Multiple spacers included for easy installation
    • Sleek low-profile cover case design
    • Field selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw position change (non-fire rated models)
    • Field selectable 12/24 VDC
    • Built-in voltage spike suppressor
    • Latch Bolt Monitor (LBM) option available, monitors the position of the latch bolt
    • Includes ESTK-100 E-strike metal template kit (CS, MDS, RS)

    Certifications

    • UL1034 Burglary-resistant electric locking mechanisms, listed
    • UL294 (indoor), listed
    • UL10C Fire Rated, 90 min. RS300-F models only
    • Static strength of 1500 lb. static load, UL certified
    • Dynamic strength of 70 ft.-lb. dynamic load, UL certified
    • 250,000 cycles endurance, UL certified

    Choosing a strike for your door giving you a headache? Skip the hassle and choose the Locknetics RS200 Rim Strike. This surface mounted electric rim strike is designed for endurance and flexibility. With a sleek cover low-profile case design, slotted mounting holes and multiple spacers creating multiple thicknesses, this strike fits just about every stile of door. Accommodates rim exit devices with a 1/2 in. throw pullman latch bolt. Four attachment points to the frame provide for extra durability.

    Basic

    Manufacturer Locknetics
    Finish Oil Rubbed Bronze, Stainless Steel
    Voltage 12/24 VDC
    Brand Locknetics

    Door requirements

    Security

    Dimensions

    Certifications UL 1034, UL 294
    Dimensions 9 (H) x 1 3/4 (W) x 1/2 (D) in.
