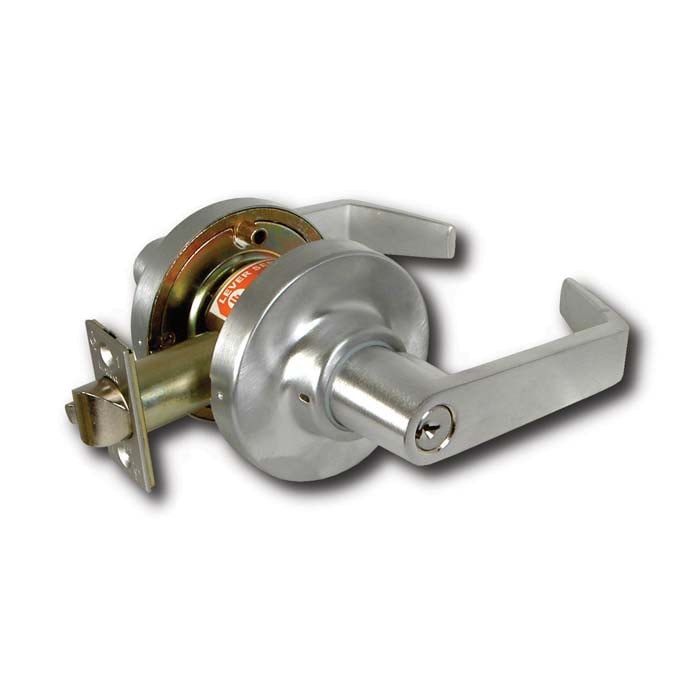

  • Marks 195 SURVIVOR Series

    Grade 1 Cylindrical Leverset

    SKU: 195A/26D

    Marks

    Discover the added protection of antimicrobial finishes for this product! For more information and assistance with placing an order, please don't hesitate to give us a call. Our team is ready to help you find the perfect solution.



    Outlast the competition. The Marks 195 SURVIVOR Series Grade 1 Cylindrical Leverset provides a long-lasting solution for your door hardware. Featuring a unique clutch mechanism and free swinging levers when locked that drastically reduce wear and tear on lock components.

    Function

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $34.12

    Call For Price
    • High quality, longer lasting, lower maintenance design
    • Exceeds BHMA Grade 1 Spec by 300%, over 3.6 million cycles
    • Unique stainless steel “clutch” and bronze bearings dramatically reduce wear and abuse while eliminating lever droop
    • Backset 2-3/4 in.
    • Latch #1834, Front: 1-1/8 in. x 2-1/4 in.; Throw: 9/16 in.; Stainless steel nose
    • Levers: Solid cast Zamac; w/ 1/2 in. return
    • Roses: Thru-bolted, 3-7/16 in. dia., spring loaded 2-#10 thru-bolts
    • Strike: #1135, 4-7/8 in. ASA curved lip strike
    • Door thickness: 1-5/8 in. to 1-7/8 in.; For 1-3/8 in. door use K1904 spacer
    • Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys

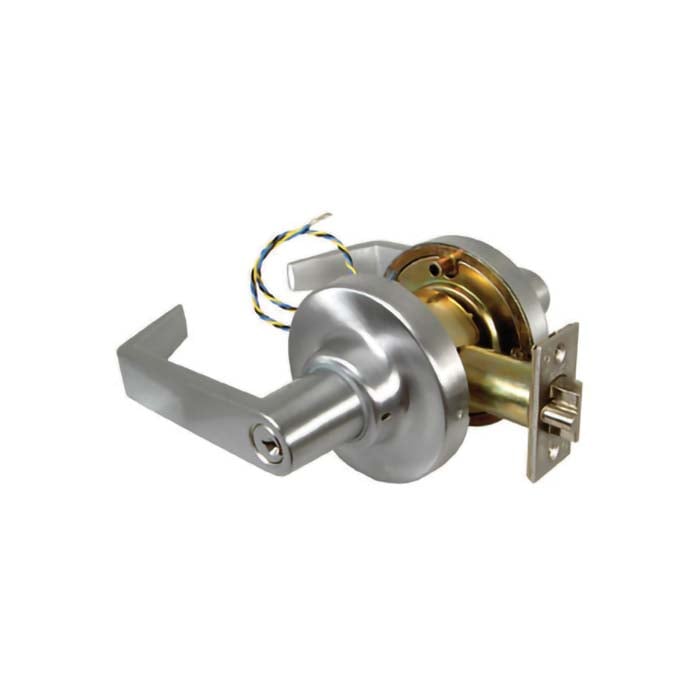

    Electrified Functions

    • 100% Duty Cycle 24v AC/DC, supplied w/ bridge rectifier
    • .21 Amps
    • Fail Secure
    • Exterior always locked until unlocked by key or electrically energized
    • Deadlocking latch by lever inside
    • Lever Only

    Marks USA Cylindrical Locksets are designed with durability as the utmost priority. Each cylindrical lock chassis are constructed with cast retractors on bronze roller bearings, giving the ability to last millions of cycles. The unique “clutch” mechanism of Marks USA Survivor leversets drastically reduces wear and abuse that typical cylindrical lever sets endure. This results in longer lasting, lower maintenance, eloquent solution. Levers disengage from the retractor and other interior mechanisms when locked and swing freely without resistance. These features reduce the amount of wear and prevent “lever drooping”. With Marks USA lifetime mechanical guarantee, Survivor Locksets will survive!

    Basic

    Manufacturer MarksUSA
    ANSI Rating A156.2, Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Keyway 6 pin C
    Voltage 24V
    Warranty Lifetime Mechanical
    Function Electronically Unlocked
    Classroom Intruder
    Office/Entry
    Handle Type Lever Handle Door Locks
    Brand Marks

    Door requirements

    Security

    Fire Rating UL 3 hr. Latch

    Dimensions

    Door Thickness Minimum 1 5/8 in.
    Door Thickness Maximum 1 7/8 in.
    Backset 2 3/4 in.
    Dimensions 4 1/2 (H) x 6 3/4 (W) x 3 7/16 (D) in.
