  • Marks LifeSaver 195BH Series D-Lig Slide

    Behavioral Health Cylindrical Lockset

    SKU: 195BHF/32D-G3

    Marks

    Discover the added protection of antimicrobial finishes for this product! For more information and assistance with placing an order, please don't hesitate to give us a call. Our team is ready to help you find the perfect solution.

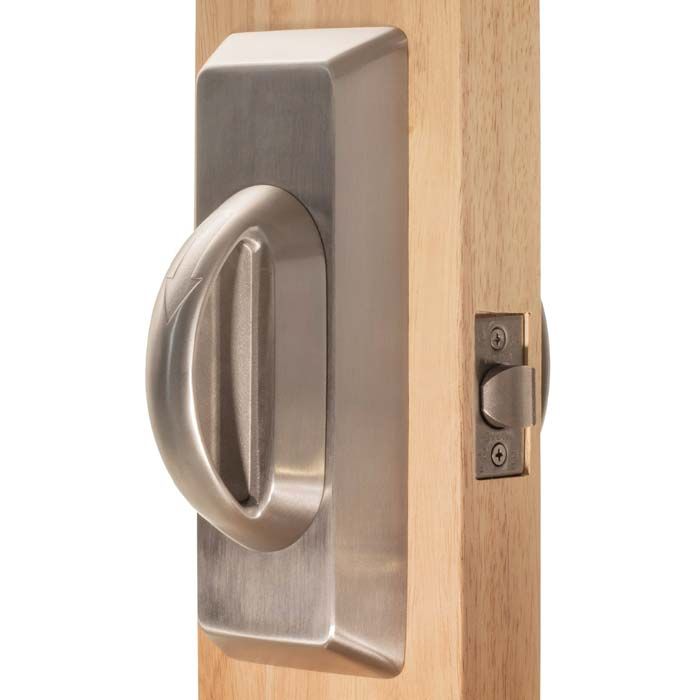

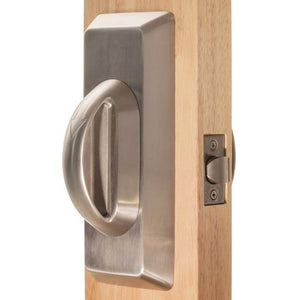

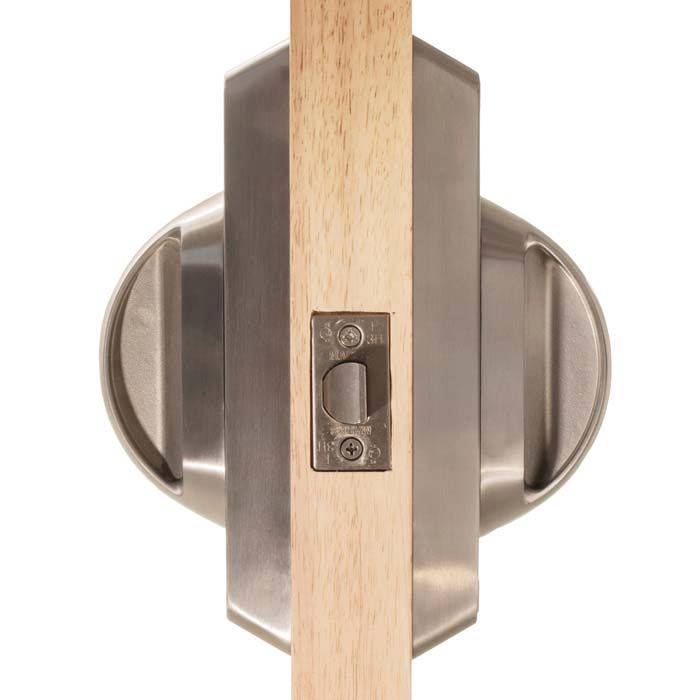

    Safety without a catch. The Marks LifeSaver 195BH Series D-Lig Slide Cylindrical Lockset provides accident and liability prevention in Behavioral Health Care institutions. Simply slide the anti-ligature handle down to operate. Easy to install and ligature resistant hardware retrofits to all popular door preps and constructions.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $87.75

    Call For Price
    • 5- Point Ligature Resistant slide Trim
    • Ergonomic solid cast Stainless Steel Slide, Slides down freely in the locked or unlocked position
    • Escutcheon Plate solid cast Stainless Steel thru bolted for strength and easy installation
    • Tamper Resistant mounting screws
    • Backset: 2 3/4 in. Standard
    • Latch: #1834, stainless Steel Nose
    • Meets BHMA 156.34 Anti Ligature Trim Standard
    • Strike: #1135, 4 7/8 in. ASA curved lip Strike
    • Door Thickness: 1 3/4 in., consult factory for thicker doors
    • Cylinder: Conventional Key n Knob Cylinder, Marks “C” Keyway, 6 pin w/2 keys – Available in IC and all OEM cylinder preps
    • Marks Hi-Security Cylinder available
    • Marks Stainless Steel Retractor - Long life 3X the BHMA Grade 1 cycle Standard
    • Antimicrobial Finish available – Code AM
    • Marks Lifetime Mechanical Warranty
    • ANSI A156.2 Grade 1
    • UL Listed 3Hr Fire Rating
    • Available in Most BHMA ANSI Functions

    Basic

    Manufacturer MarksUSA
    ANSI Rating A156.2, Grade 1 (Best)
    BHMA Rating 156.34 Anti Ligature Trim Standard
    Finish Stainless Steel
    Warranty Lifetime Mechanical
    Handle Type Slide
    Brand Marks

    Door requirements

    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)
    Strike 4 7/8 in.

    Security

    Fire Rating UL 3 hr. Latch

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Backset 2 3/4 in.
    Dimensions 9 1/4 (H) x 5 1/4 (W) x 3 1/16 (D) in.
