  • Marks M8800

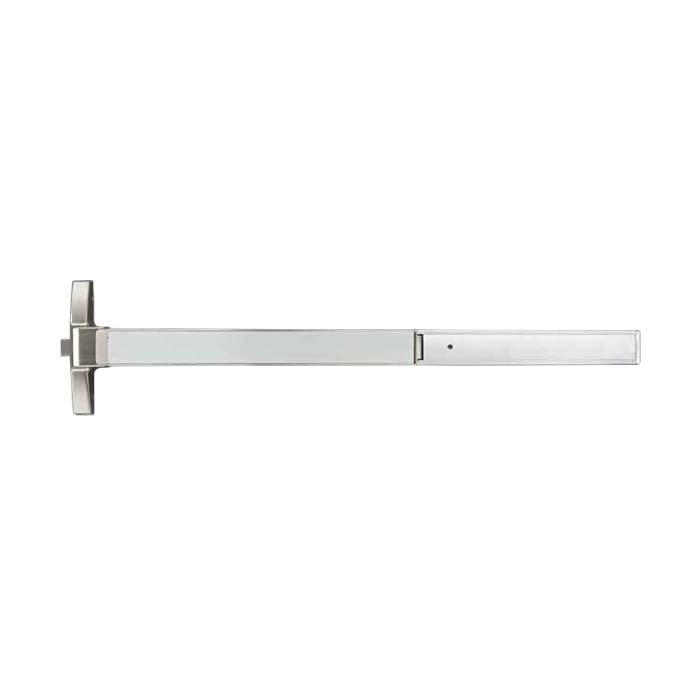

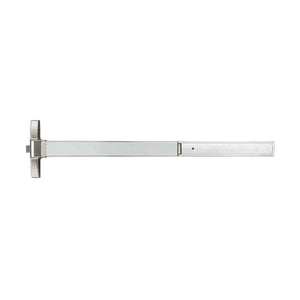

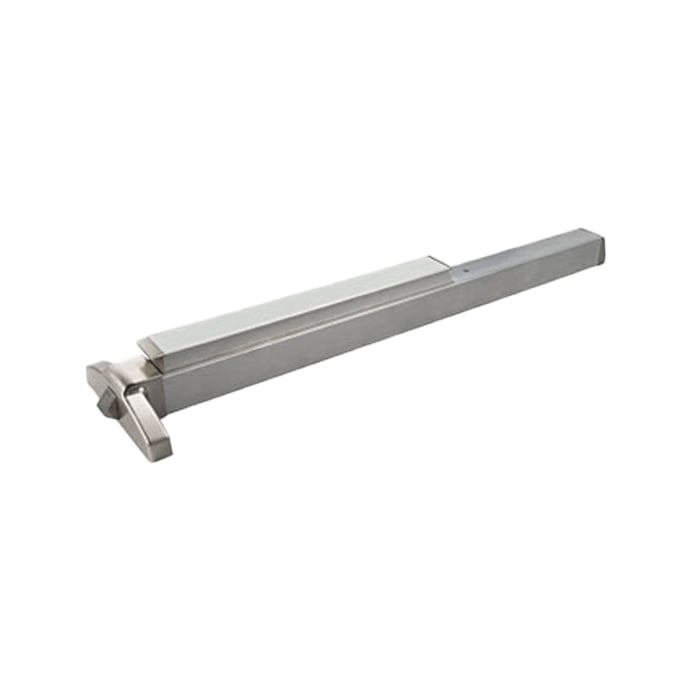

    Narrow Stile Exit Device

    SKU: M8800/32D

    Marks

    Discover the added protection of antimicrobial finishes for this product! For more information and assistance with placing an order, please don't hesitate to give us a call. Our team is ready to help you find the perfect solution.

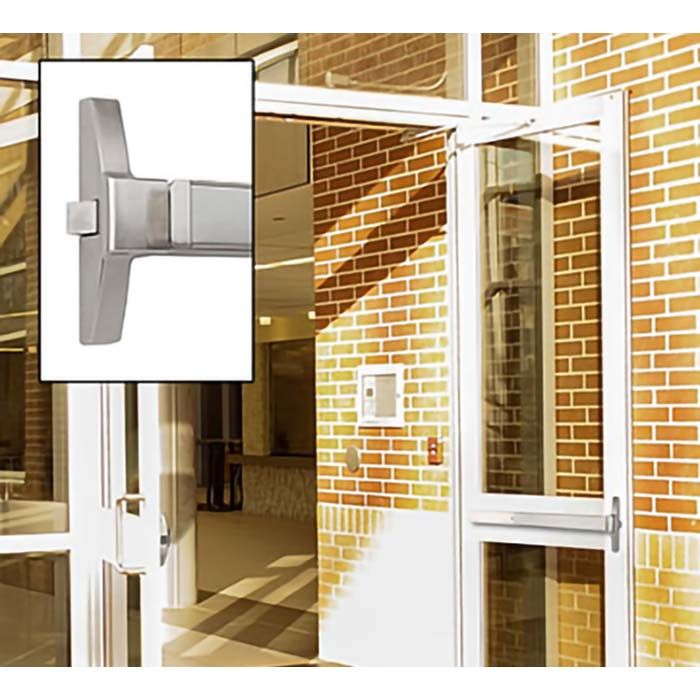

    Security that makes its mark. The Marks M8800 Narrow Stile Exit Device provides heavy-duty panic hardware for all types of narrow stile single and double doors with mullions. Featuring reliable Panic Protector end caps and suitable for schools, universities and other commercial applications.

    Door Width
    Finish

    Quantity left : 3

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $63.19

    • Reliably control all types of narrow stile single and double doors (non-handed)
    • Ultra-Durable, heavy gauge extrusion, Satin Stainless Steel Finish (32D)
    • Marks Lifetime Mechanical Warranty
    • Steel flush mounted Panic Protector End Cap
    • Easy Installation and Retrofits All Popular Preps
    • Mounting: Furnished Standard with Wood and Machine Screws
    • Head Cover: Zinc Alloy
    • Chassis: Aluminum
    • Rail Assembly: Heavy Gauge extruded aluminum with stainless steel on top of touch bar
    • End Cap: Zinc Alloy
    • Hand: Non-handed
    • Latch Bolt: Stainless Steel, 3/4 in. (18mm) throw
    • Strike: Roller Strike (Stainless Steel)
    • Dogging: Allen Key (equipped on panic rate devices only)
    • Touch bar height from finished floor: 41 in. (1041mm) from center of touch bar
    • Touch Bar Projection: Neutral: 3 5/16 in. (84mm)
    • Depressed: 2 19/32 in. (66mm)
    • Head Cover: LxWxH: 8.11 in. (206mm) x 3 in. (76mm) x 2.8 in. (71mm)
    • Device Length: 34 5/8 in. (88cm) for 36 in. door width 46 5/8 in. (118.5 cm) for 48 in. door width
    • Conforms to ANSI BHMA A156.3 Grade 1 Exit Device Requirement Standard
    • ANSI/UL305 Standard for Safety for Panic Hardware
    • 2013 California Building Code Sec. 11B-309.4

    The Marks M8800 Narrow Stile Exit Device provides heavy-duty panic hardware for all types of narrow stile single and double doors of either 36 in. or 48 in. width. Featuring quick installation with convenient, non-handed flexibility. Suitable for schools, universities and other commercial applications and able to retrofit all popular prep types. Extremely durable, Grade 1 exit devices with heavy-duty cast chassis, projection touch-bar, and mitered steel flush mounted Panic Protector™ End Caps. Backed with a lifetime mechanical warranty from Marks.

    Basic

    Manufacturer MarksUSA
    ANSI Rating A156.3, Grade 1 (Best)
    Finish Satin Stainless Steel
    Warranty Lifetime Manufacturer
    Locking Device Panic/Exit
    Brand Marks

    Door requirements

    Door Handing Non-Handed

    Security

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 in.
    Door Opening Width 30 - 36 in.
    Weight 10 lbs
