    Keypad Cabinet Lock

    SKU: NLRK-APO2-619-01P1

    NextLock



    Security comes in all shapes. The NextLock Range Keypad Cabinet Lock provides keyless convenience and security to your storage spaces. Choose from a deadbolt or deadlatch locking mechanism with Shared or Assigned use operation to secure day-use or private-use lockers.


    Locking Device
    Style
    Function | Locker Application

    Quantity left : 0

    Call For Price
    • Keypad operation

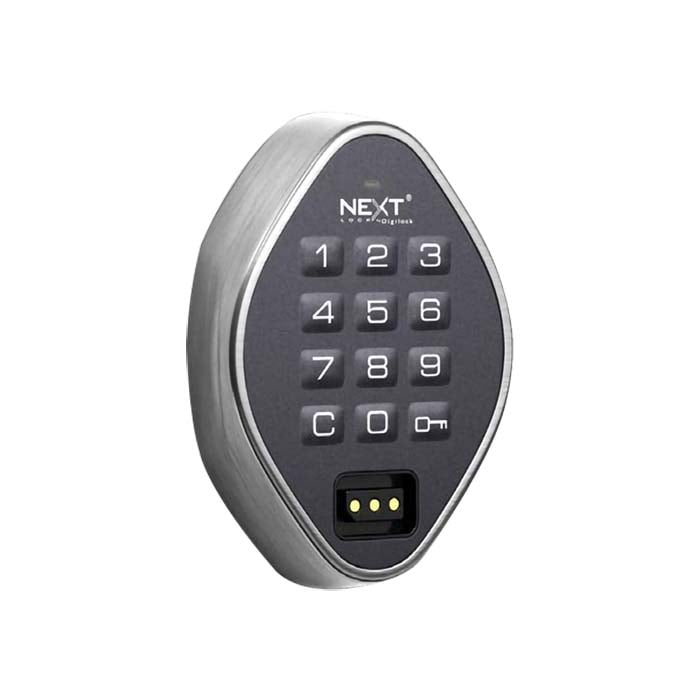

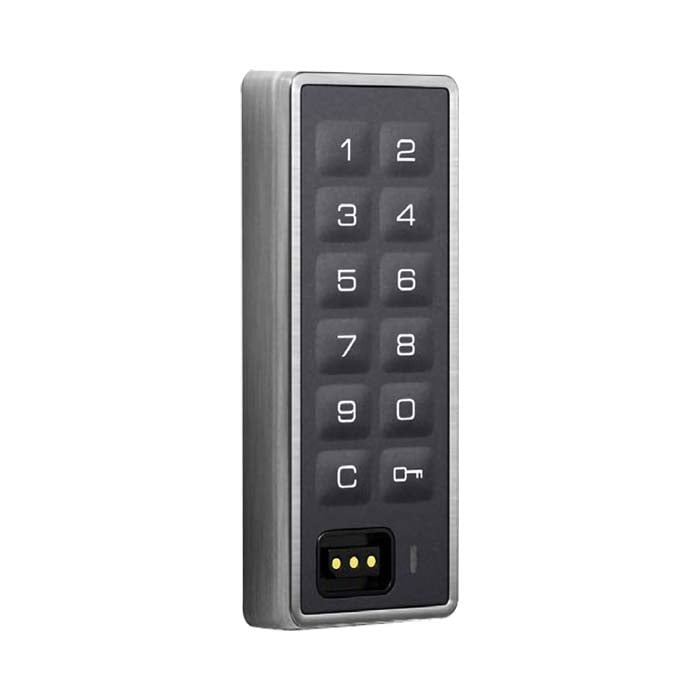

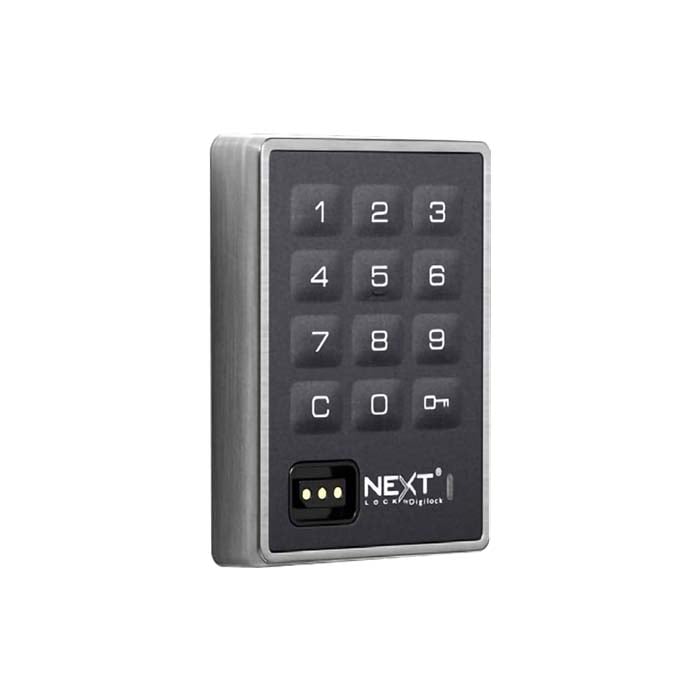

    • Standard, Vertical, and Oval body styles
    • 1/2 in. (12 mm) motorized deadbolt or deadlatch locking mechanism
    • Electronic key management
    • One (1) programming key required per installation (One (1) will be added to your cart for convenience)
    • Dual functionality – shared or assigned (deadlatch assigned use only)
    • Metal housing with integrated pull handle
    • Brushed nickel finish
    • Surface mount
    • Designed for new or retrofit installations
    • Non-handed
    • Adapts to multiple door thickness
    • Visual and audible indicators
    • IP55 rated for moisture and dust protection
    • Patented snap-lock cable or pin connector
    • Powered by 4 premium AA batteries
    • 3-5 year battery life
    • Up to 5 year warranty
    The NextLock Range Keypad Cabinet Lock provides keyless convenience and security to your storage spaces. These have been designed for new or retrofit installations at schools, gyms, recreation centers, and more. Choose from a deadbolt or deadlatch locking mechanism with Shared or Assigned use operation to secure day-use or private-use lockers. Shared use is useful when lockers are located in amusement parks or local gyms where different patrons will be using one unit during the day. Assigned use is for private use at golf club lounges or school lockers where one person uses that same space for long periods of time. Deadlatch models operate in assigned use only. Trade in the keys for simple keypad PIN code entry. With three body styles to choose from, Range locks will compliment any type of decor. Adapts to multiple door thicknesses to fit a range of different types of cabinets, drawers, and lockers. Equipped with visual and audible indicators to tell you locking status and shared (Green LED) or assigned use (Red LED) status. You can also access and manage each lock with electronic manager keys (sold separately).

    Basic

    Manufacturer Digilock
    Battery Type 4 AA
    Finish Brushed Nickel
    Locker Application Non-Metal, Metal
    Style Oval, Standard, Vertical
    Warranty 5 Year Manufacturer
    Function Assigned Use
    Shared Use
    Access Type Keypad - Digits
    Locking Device Deadlatch
    Deadbolt
    Brand NextLock

    Door requirements

    Door Handing Non-Handed
    Battery Life 3 to 5 Years

    Security

    Code Length 4 digits
    Code Capacity 1

    Dimensions

    Door Thickness Minimum Metal: 0.04 to 0.16 in. (1-4mm)
    Door Thickness Maximum Non-Metal: Up to .91 in. (23mm)
    Dimensions Oval: 2.742 (H) x 2.061 (W) x .0.492 (D) in., Standard: 2.742 (H) x 2.138 (W) x 0.492 (D) in., Vertical: 3.372 (H) x 1.387 (W) x 0.492 (D) in.
