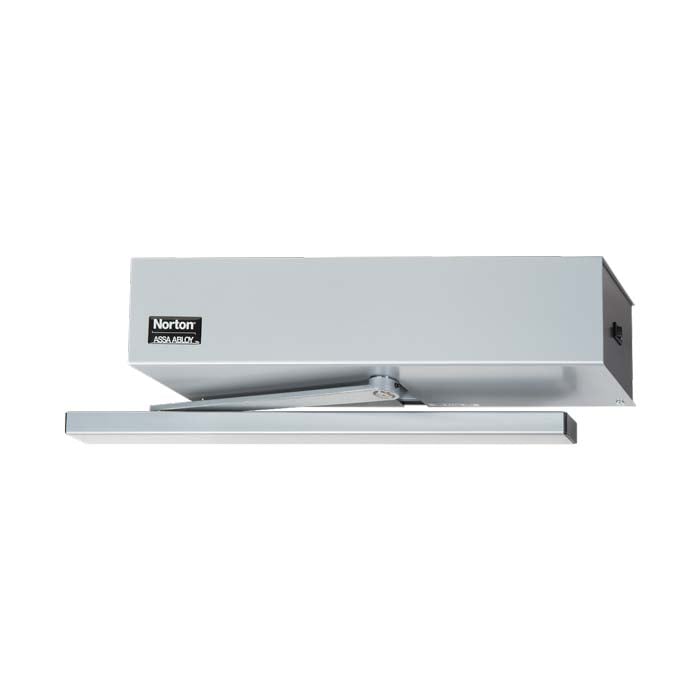

  • Norton 5610K1

    Door Closer

    SKU: 5610K1 689

    Norton

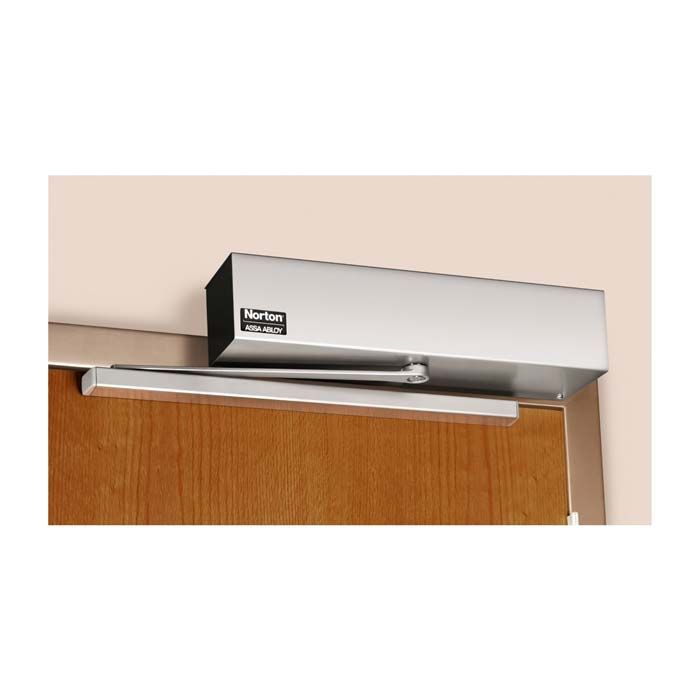

    Now doors open themselves. The Norton 5610K1 Door Closer provides ADA compliant, touchless access for interior, non-fire rated doors. Operate manually or using wall switches or radio frequency devices. Suitable for offices, classrooms, or touch free applications like public restrooms.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $353.33

    • For interior, non-fire rated doors that need to be automated to offer ADA-compliant accessibility
    • Pull side mounting
    • Non-handed
    • Quiet operation
    • Aluminum finish standard, various finishes available via special order
    • Electrically controlled backcheck, sweep and latch
    • Activation options: wall switches, radio frequency devices
    • Ease of installation and set-up
    • Onboard 24VDC (1.1A) power supply for accessories
    • Door closer mode for manual usage
    • Electronic motor dampening – provides feel of high performance, manual door closer
    • Electric hardware and access control interface

    Functions

    • Adjustable Hold Open – Amount of time a door will stay in the full open position after an activation
    • Executive Mode – When door receives activation signal it opens and remains open until second signal is received or door is manually moved in closing direction
    • Obstruction Detection – Motor stops if door is obstructed during opening; door will rest against obstruction
    • On/Off Switch – Disables operator activation
    • Open Delay – Delays operator opening for locking hardware
    • Overload Safety Shut-Off – After 2 minutes of receiving a door activation signal, inverter times out and door closes, Prevents motor/inverter damage
    • Push and Go – As the door is manually opened, the operator “senses” movement and opens door to the full-open position

    The Norton 5610K1 Door Closer provides ADA compliant, touchless access for interior, non-fire rated doors. Operate manually or using wall switches or radio frequency devices. Suitable for offices, classrooms and dorm rooms or touch free applications like public restrooms. Along with whisper quiet operation, this pull side mounted door closer comes packed with functions, such as Push and Go, Executive mode, adjustable hold open, open delay, overload safety shut off, and obstruction detection. Push and Go allows the door to sense movement and continue to automatically open the door, useful when pushing someone in a wheelchair or bringing in packages. In Executive mode, the door remains open after signal activation unless manually moved in closing direction, useful when large groups are entering or leaving the premises. You can set the door to “Hold Open” up to 30 seconds after an activation. You can also program in an open delay to pause opening for locking hardware or your access control system. The unit comes equipped with an Overload Safety Shut-Off where after 2 minutes of receiving a door activation signal, the inverter will time out and the door closes, preventing motor/inverter damage. The motor will also stop if the door is obstructed during opening, leaving the door resting against the obstruction.

    Basic

    Manufacturer Assa Abloy / Norton
    BHMA Rating A156.19
    Finish Aluminum
    Power 120VAC, 60Hz
    Warranty 1 Year Limited Manufacturer
    Brand Norton

    Door requirements

    Door Handing Non-Handed
    Arm PULL

    Security

    Dimensions

    Certifications ADA
    Dimensions 4 7/16 (H) x 17 3/4 (W) x 4 3/8 (D) in.
