  • Norton 8501

    Multi-Sized Architectural Door Closer

    SKU: 8501 689

    Norton



    Full-size cover.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $35.49

    Call For Price
    • Commercial grade, architectural non-handed door closer for interior/exterior use on non-fire or fire rated doors
    • 8501 Non-hold Open Model; Self-closes door every time door is opened
    • Full Power Range Closer with adjustable sizes 1 through 6 to accommodate virtually any door opening width, and interior/exterior applications
    • Staked valves to prevent closer fluid leaks
    • Standard, separate and independent, latch, sweep and backcheck intensity valves.  Provides for adjustment of door speed, and backcheck delivers extra cushioning when door is forcibly opened beyond its pre-adjusted limits
    • Cast aluminum body to accommodate interactive steel components and operating conditions

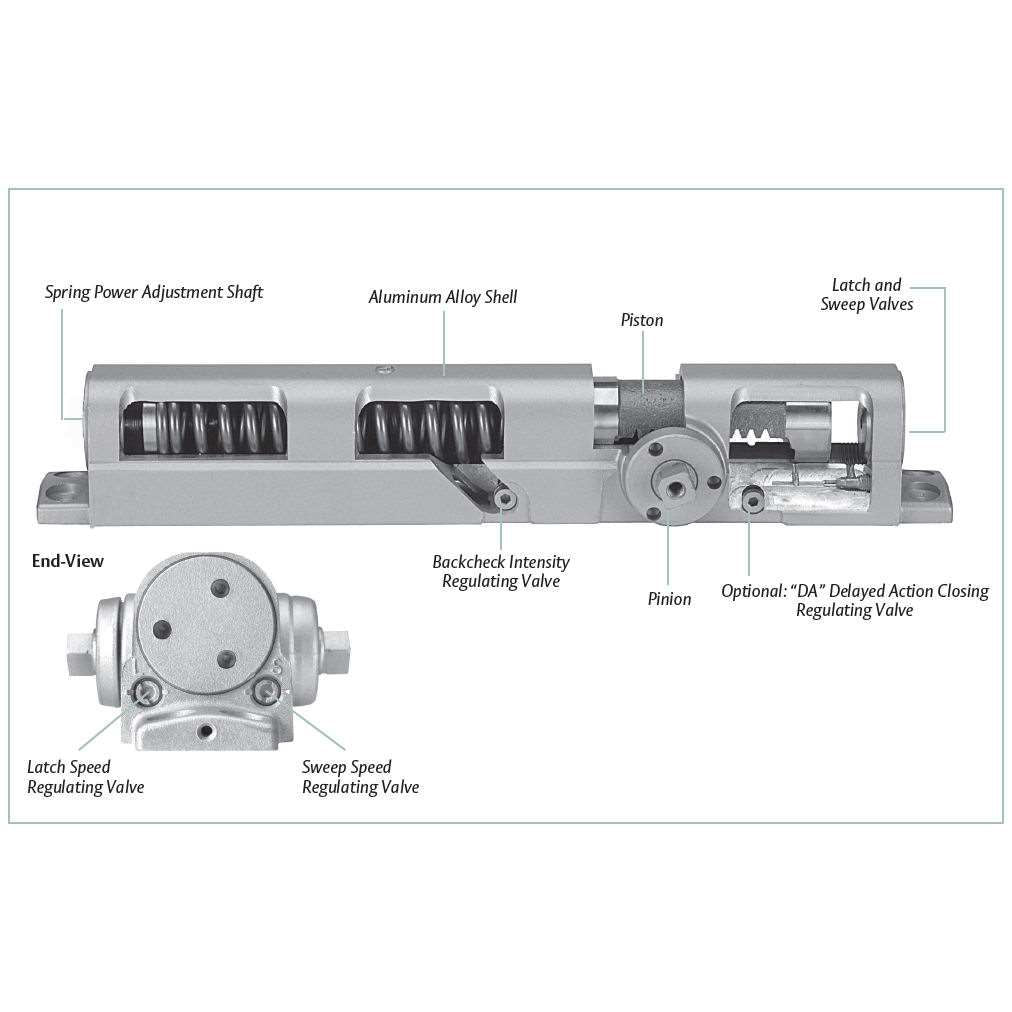

    • Rack-and-pinion design for smooth constant control of the door through its full opening and closing cycle
    • All standard arm applications, allow doors to swing 180 degrees, conditions permitting
    • Includes Full-Size molded cover
    • Full size template for fast, easy mounting
    • 10-year limited warranty

    Compliance Standards

    • ANSI/BHMA A156.4, Grade 1 certified
    • UL listed
    • UL10C compliant for positive pressure
    • ADA compliant

    Specifications

    • Housing Dimensions: — 2-1/2″ (H)  x 2-1/8″ (W) x  13″ (L)
    • Weight:  Appx. 8lbs
    • 1-1/4″ (32mm) diameter piston
    • 5/8″ (16mm) diameter pinion journals
    • 2-1/8″ (54mm) projection (standard covers)

    Ask any security expert, or industry insider which brand of door closers are the best, and you will unanimously hear the name Norton. Norton is the father of design for the door closer in America, dating back to 1880. In fact, other closer brands, are directly modeled after Lewis C. Norton's creation. Along with all of their lines of traditional surface, commercial, security, and electrified door closers, this 8000 series door closer is made right here in the USA at the Norton factory in Monroe, NC. What separates Norton from the rest of the pack is the quality of their rack and pinion construction, valve and spring design, and closer fluid composition. The Norton door closer is the best selling closer, and the door closer chosen by the professionals. Think of Norton door closers as the Titleist of closer hardware. Yes, there are other options, many in fact, just as in golf balls, but when you want performance, reliability, and the mental comfort your door is going to close, every time, without fail, even in conditions where there's a spike in traffic, kids are running furiously in and out the door, or the weather takes a turn for the worst, you want the Norton 8501 door closer. The Norton 8501 door closer employs a double-arm assembly, and is designed to be installed on the pull-side of the door, making it the most power-efficient application for a door closer. Please note the Norton 8501 door closer arm projects directly out from frame. You'll want to ensure safe clearance for door/frame, and/or ceiling before installing.

    Basic

    Manufacturer Norton
    Finish Aluminum, Dull Bronze, Statuary Bronze, Gold
    Holding Weight 250 lbs
    Brand Norton

    Door requirements

    Security

    Dimensions

    Door Size 30 to 48 in.
