  • Norton 8501H

    Architectural Hold Open Door Closer

    SKU: 8501H-SN-689



    Full-size cover.

    ⚠️ Low stock — order soon

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $51.86

    Terms and Conditions
    Call For Price
    Norton 8501H
    - +
    • Commercial grade, architectural non-handed door closer for interior/exterior use on non-fire rated doors
    • 8501H Hold Open Model; Hold open achieved by means of friction or ball and detent/ roller. Friction hold open has a range of 90° to 180° using template location and mechanical adjustment.  Ball and detent or roller hold open is effective in a range of 85° to 110°
    • Full Power Range Closer with adjustable sizes 1 through 6 to accommodate virtually any door opening width, and interior/exterior applications

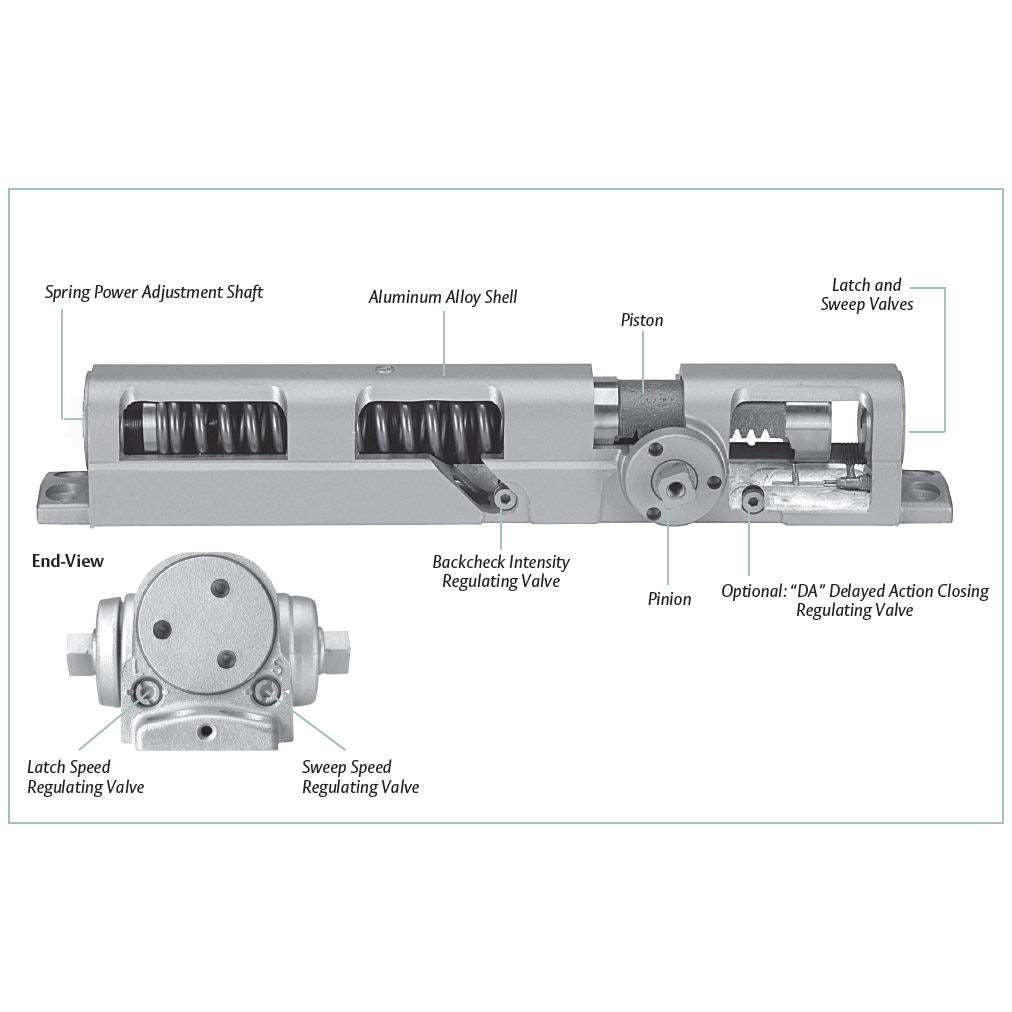

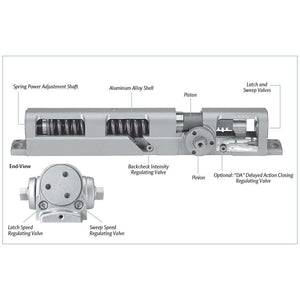

    • Staked valves to prevent closer fluid leaks
    • Standard, separate and independent, latch, sweep and backcheck intensity valves.  Provides for adjustment of door speed, and backcheck delivers extra cushioning when door is forcibly opened beyond its pre-adjusted limits
    • Cast aluminum body to accommodate interactive steel components and operating conditions
    • Rack-and-pinion design for smooth constant control of the door through its full opening and closing cycle
    • All standard arm applications, allow doors to swing 180 degrees, conditions permitting
    • Includes Full-Size molded cover
    • Full size template for fast, easy mounting
    • 10-year limited warranty

    Compliance Standards

    • ANSI/BHMA A156.4, Grade 1 certified
    • UL listed
    • UL10C compliant for positive pressure
    • ADA compliant

    Ask any security expert or industry insider which brand of door closers stands above the rest, and you will hear the same name: Norton. Dating back to 1880, Norton is considered the father of the modern American door closer. In fact, many other closer brands trace their design directly back to Lewis C. Norton’s original invention.

    Alongside their full line of traditional surface, commercial, security, and electrified closers, the Norton 8501H hold open door closer continues that legacy of performance. Made right here in the USA at the Norton factory in Monroe, NC, it reflects the same standards professionals trust every day. What separates Norton from the rest is the quality of its rack and pinion construction, valve and spring design, and the fluid composition inside the closer itself.

    Think of Norton as the Titleist of door closers. Yes, there are plenty of other options, just like golf balls, but when performance and reliability matter, professionals reach for Norton. Whether traffic spikes, kids are running in and out, or the weather turns rough, the Norton 8501H hold open door closer is built to close every time, without fail. Its double-arm assembly is designed for pull-side mounting, making it the most power-efficient closer application. Please note the arm projects directly out from the frame, so proper door, frame, and ceiling clearance should be confirmed before installation.

    Basic

    Manufacturer ASSA ABLOY / Norton
    ANSI Rating ANSI/BHMA A156.4, Grade 1 certified
    Finish Aluminum, Dull Bronze, Statuary Bronze, Gold
    Holding Weight 250 lbs
    Warranty 10-year limited warranty
    Brand Norton

    Door requirements

    Security

    Dimensions

    Door Size 30 to 48 in.
    Weight Appx. 8lbs
