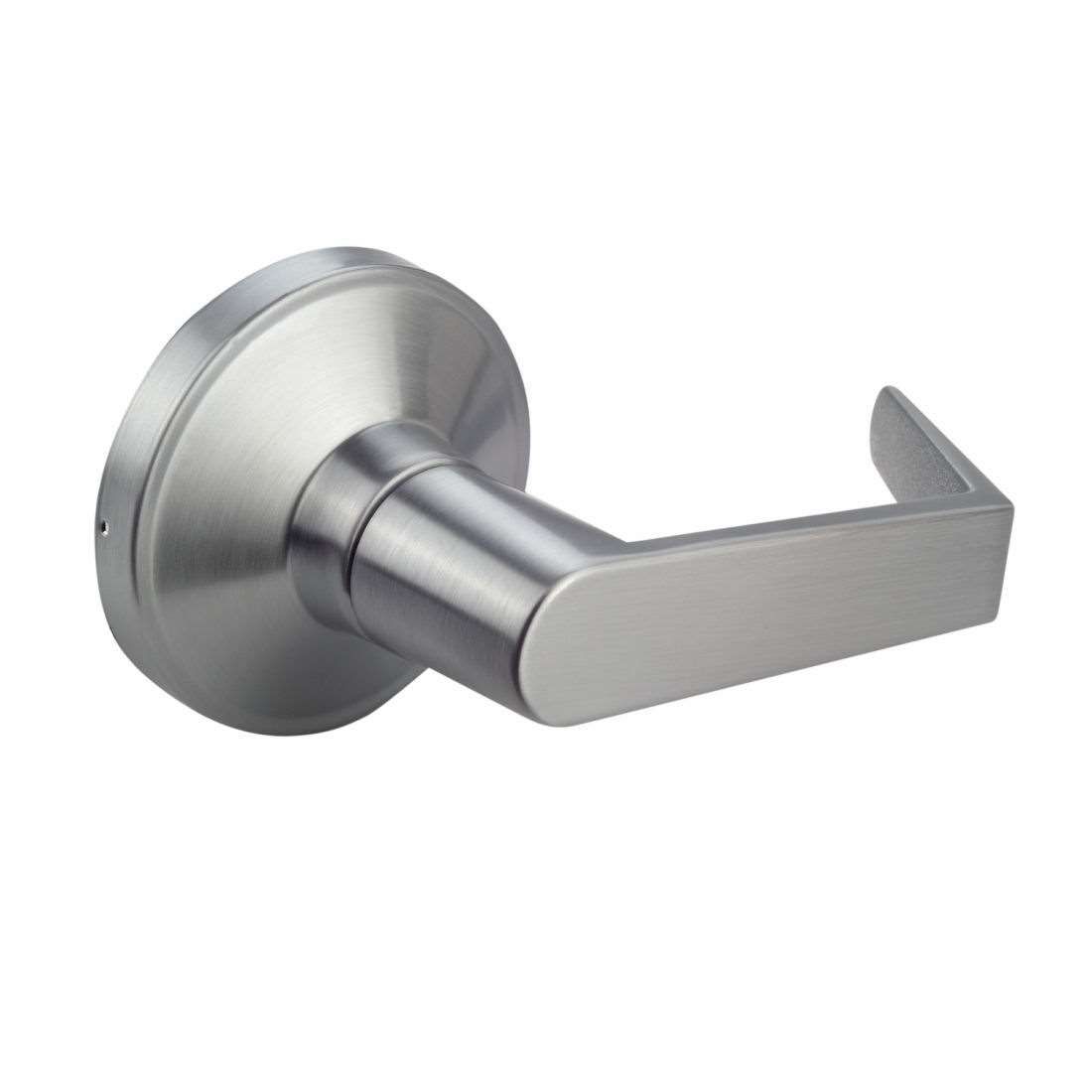

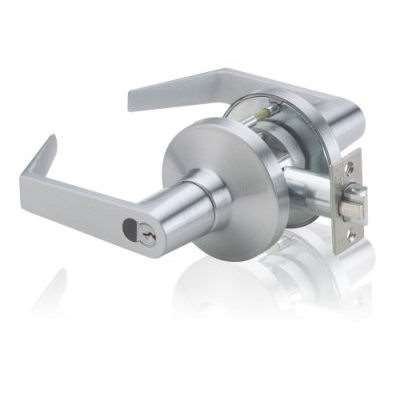

Name: PDQ GT 135 Spirit
SKU: GT 135 PHL 613
Price: 261.34 USD
Availability: InStock

Features
Description
Specifications

2 Day (biz.) Shipping Lead-time

ANSI Grade 1 Extra Heavy Duty cylindrical door lock
Exceeds 2,100 in lbs. of torque resistance
Classroom Security (Intruder) Function (F110) — Latchbolt operated by lever from either side, key in either lever locks outside lever, key in either lever unlocks outside lever, inside lever always free
Backset: 2-3/4″
Handing: Field Reversible
Door Situation: Fits left, right wood/metal swing doors
Lever Style — Philadelphia. Miami & Boston designs available upon request
Architectural Finish
Door Thickness: 1-3/4″ ~ 2-1/4″
Keys: Two (2) keys provided per lock
Keyway — Schlage / SCC. May be custom ordered in keyways of most major manufacturers.
Cylinder: Brass 6-pin cylinder, keyed to 5 pins.
Interchangeable Core (6 or 7 pin): Available in Best IC – less core (SFIC) and Schlage Large Format LFIC (PHL lever only). IC models sold less core, IC cores sold separate if you’re not using your own
Strike: 4-7/8″ ASA strike included. Full lip strike, and T strike available upon request
U.L. LISTED: U.L., U.L.C. listed for “A” label (3 hour) single swing doors (4′ x 8′) / UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”
CERTIFICATIONS: ANSI A156.2-2003, Series 4000, Grade 1. Meets all applicable accessibility requirements of the ADA. U. L. Listed. BHMA.
WARRANTY: Twenty-Five (25) year manufacturer limited warranty
COUNTRY OF ORIGIN: Assembled in the USA using US and Foreign material. This product meets the requirements of the Buy American Act.

There are large gaps in door security in today's classrooms. Many classroom doors don't have locks, and ones that do are not using a lockset with the classroom intruder function, or lockdown capability. Classroom intruder locks, including this ANSI Grade 1 model by PDQ, reduce the time it takes to lock the outside lever. This can delay or outright prevent someone entering the room who is intent on inflicting harm. Everyone assumes you must pay more for premium quality. The PDQ GT Series locks contradict this assumption. They are UL listed, ANSI grade 1, exceed 2100 in lbs. of torque resistance, feature solid zinc diecast ADA levers, and are windstorm resistant. When your door project calls for heavy duty locks, look no further than the GT. From the rose plate, to the thru-bolt bushings, and into the chassis, the extra heavy duty GT lock is designed for reliability. Isn't coming in under budget worth the change to PDQ? Download GT Series Spec Sheet

Basic

Manufacturer	PDQ Manufacturing
Finish	Satin Chrome, Oil Rubbed Bronze, Bright Brass, Satin Brass, Satin Bronze, Bright Chrome
Product Headline	Extra Heavy Duty Classroom Intruder Lock
Function	Classroom Intruder
Handle Type	Lever Handle Door Locks
Locking Device	Cylindrical Latch
Brand	PDQ

Door requirements

Door Prep	Standard 2 1/8 in. Cross-Bore
Door Opening	["Standard"]

Security

Key Override	Best IC, Standard Cylinder, Schlage IC

PDQ GT 135 Spirit

Basic

Door requirements

Security

Dimensions
