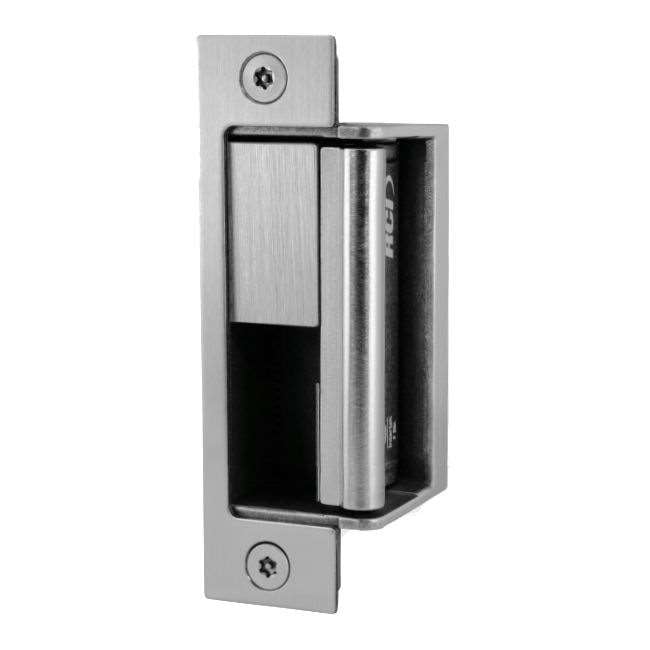

    All-In-One F2 Fire Rated Electric Strike

    SKU: F2164-32D



    Rutherford Controls Electric Lock w/ 1500 lbs Holding Force

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $102.05

    Call For Price
    • “Saw-tooth Adjustment Locator” design that allows the installer to move the deadbolt keeper, or plug and deadlatch ramp vertically to align with a wide variety of mortise locks with offset latches. There’s no need to order special faceplates, you can adjust the strike to work with virtualy any mortise lock type
    • Up to 1500lbs (680kg) holding force
    • Fits frame cutout for HES 1006 (1003)
    • Accommodates ¾” latch projection
    • Centerline faceplate included for centerline latch entry
    • Horizontal adjustability up to 1/8″ (3mm) for misaligned frames

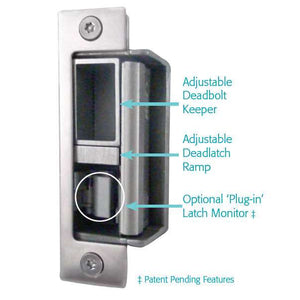

    • Vertical Adjustability for precise deadbolt and latchbolt alignment
    • Adjustable deadbolt keeper and deadlatch ramp
    • Accommodates up to 1″ deadbolt (Night-latch function only, bolt will not release)
    • Field selectable voltage input – Accommodates 12 or 24VDC and 12 to 24VAC. (24VAC is most common, emits ‘buzzing’ sound)
    • Anti-tamper security screws
    • All installation drivers included
    • Low current draw (0.19 Amps @24VDC)
    • “Cool Keeper” Solenoid located in house prevents keeper from heating up
    • Plug-in wire connector
    • Trim plate included
    • Adhesive paper template included
    • Non-handed
    • Fail-locked (fail secure) mode standard. Note: Fail-unlocked (fail-safe) strikes are not permitted on fire labeled doors
    • Optional Latch Monitor kit (available upon request).  May be added in the field if you decide you need monitoring at a later time… no need to buy another strike!

    Certification

    • UL 1034 Burglary Resistant Listed
    • UL 10C (3 Hour) Fire Rated
    • Factory tested to meet ANSI/BHMA 156.31 for strength and endurance

    Warranty

    • 5 Year Limited Warranty

    The fail secure locking mechanism shall only be installed where allowed by the local authority having jurisdiction and shall not impair the operation of the panic hardware or intended operation of the emergency exit.

    The F2 is the latest innovation from RCI and solves one of the biggest challenges in selecting an electric strike for a mortise lock. This is because of the location of the latch mechanism on the wide variety of these lock types. In this new F2 electric strike, RCI creates a patent pending "saw-tooth adjustment locator" for determining the precise position for the lock. You no longer need to determine what mortise lock is being used, or buy multiple face plates to complete the job. The adjustment locator allows you to slide the deadbolt keeper and deadbolt ramp vertically so you can line up with the latch. The "Sliding Shim" design reduces your overall installation time, and project costs. The F2 even accomodates a 1" deadbolt for night-latch function. Put all of these leading design elements together with the strength (1500 lbs holding force), endurance (1.5 million cycles), and convenience (everything you need is in the box), and what you get is the new standard by which all other electric door strikes will be gauged.

    Basic

    Manufacturer dormakaba USA Inc.
    ANSI Rating A156.31
    Finish Brushed Stainless Steel
    Holding Force 1,500 lbs
    Voltage 12/24V AC/DC
    Warranty 5 Year Limited Manufacturer

    Door requirements

    Security

    Dimensions

    Weight 3 lbs
