  • Sargent & Greenleaf Brute 8497

    Electronic Door Deadlatch Lock

    SKU: 8497-100

    Sargent & Greenleaf

    Please be advised that this product is currently experiencing an extended lead time. For further details, kindly give us a call. We'll be more than happy to provide you with the necessary information.

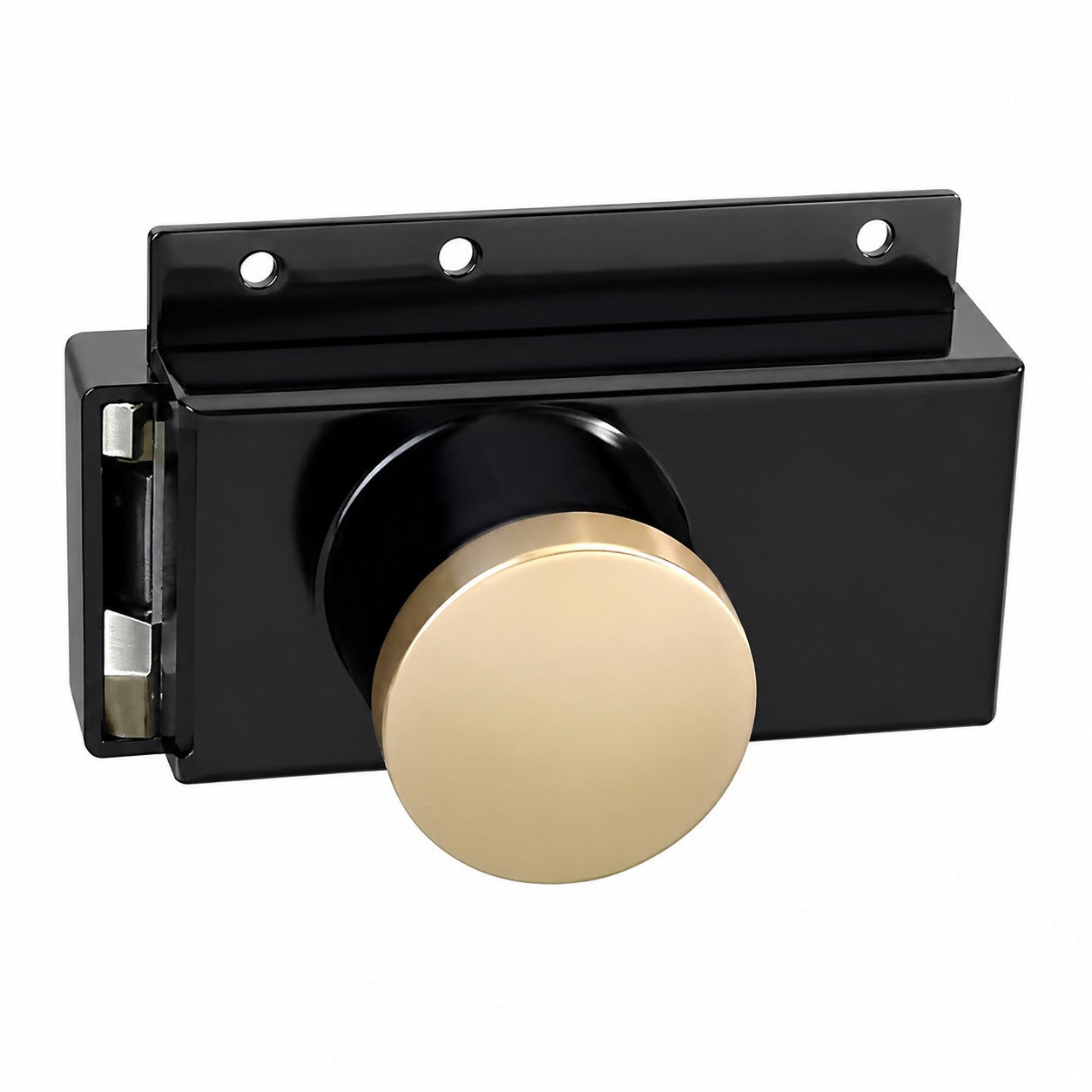

    The Sargent & Greenleaf Brute 8497 is a high powered electronic door lock for extreme use, or extreme security applications. Use your existing cylindrical knob/lever lock for the grip handle to enter. Ideal for use in Military buildings, prisons, naval ships, research laboratories, Casino vault rooms, cash handling areas, and ATM rooms You must use The Brute with an access control device/panel. Simply be sure your panel/system is compatible with The Brute’s 24VDC electrical requirement, which most are.

    Please be advised that this product is currently experiencing an extended lead time. For further details, kindly give us a call. We’ll be more than happy to provide you with the necessary information.

    Strike

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $160.72

    • Inside release knob provided for rapid egress
    • Required Voltage: 24VDC
    • Current: 5.5 to 6.5 AMPS
    • DC Coil Resistance: 6 OHMS
    • Minimum Recommended Wire Size: 18 Gauge
    • Dimensions: 3.8″ (H) x 5.5″ (W)
    • National Stock Number Information (NSN):  5340-01-020-5681 & 6350-00-610-1962

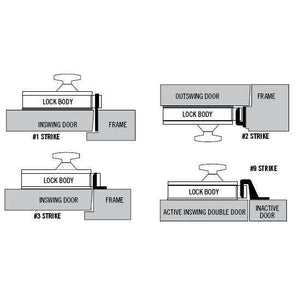

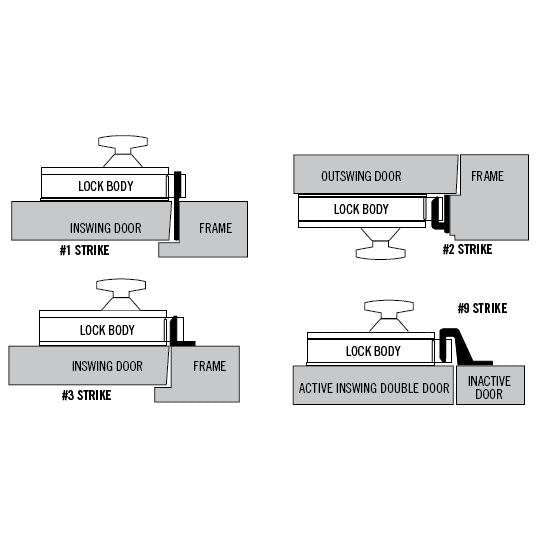

    Strikes

    • #1 for in-swing doors
    • #2 for outswing doors
    • #3 for in-swing or reverse bevel in-swing doors
    • #9 for outswing double doors

    The name says it all.  The Brute is a high powered electronic door lock for extreme use, or extreme security applications.  This electronic lock is such an unprecedented and impressive locking device, it's typically thought of as 'the stuff that doesn't even exist.'  Military buildings, prisons, naval ships, research laboratories, Casino vault rooms, cash handling areas, and ATM rooms, are where you might expect to come across The Brute.  But you can use it on any pedestrian door.  It could be you just want 'the most intimidating' door lock ever made!  Look at this beast; the only visible knob is on the secure side of the door for a quick egress.  You will use your existing cylindrical knob/lever lock for the grip handle to enter.  If you need a lockset, take a look at our D-Series entrance lock.  The ease of use and simple surface mount installation makes The Brute a front-runner high security solution for a wide range of situations.  You must use The Brute with an access control device/panel.  Simply be sure your panel/system is compatible with The Brute's 24VDC electrical requirement, which most are.  When you want The Brute, and don't have an existing access control system in place, we recommend using Crypto Code, or MiniMax 3.
    D-Series entrance lock. The ease of use and simple surface mount installation makes The Brute a front-runner high security solution for a wide range of situations. You must use The Brute with an access control device/panel. Simply be sure your panel/system is compatible with The Brute's 24VDC electrical requirement, which most are. When you want The Brute, and don't have an existing access control system in place, we recommend using Crypto Code, or MiniMax 3.

    Basic

    Manufacturer Sargent & Greenleaf
    Solution Electronic
    Access Type Specialized
    Locking Device Surface Latch
    Brand Sargent & Greenleaf

    Door requirements

    Strike Brute #1, Brute #2, Brute #3, Brute #9

    Security

    Dimensions
