  • Schlage AD-400 CY

    Networked Wireless Cylindrical Lock

    SKU: AD-400-CY-70-MTK-ATH-626

    Schlage AD and Schlage AD Products

    This lock requires a compatible PACS system for operation.

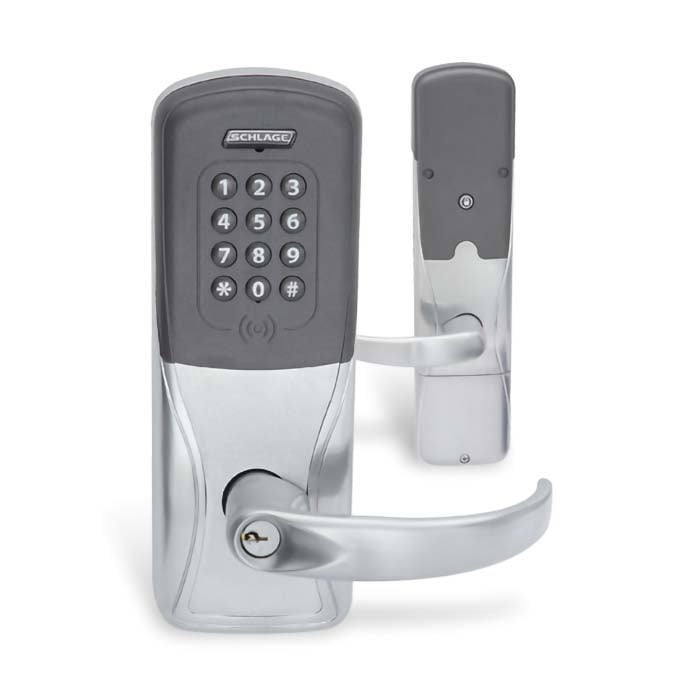

    Install now, upgrade forever! The Schlage AD-400 Networked Wireless Lock provides an adaptable solution to doors connected to an electronic access control system. Upgrade to new technologies without taking the lock off the door. This lock features a built-in credential reader and access control sensors for simplified installation.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $517.03

    Call For Price

    Please note: A compatible PACS system is required to use this lock, Includes One Time License for use in PremiSys

    Security

    • Electronic access control brings more visibility and control to the opening
    • Modular design allows reader upgrade to fit changing credential needs without changing the lock
    • Real-time communication with centralized lockdown capability
    • Unique communication protocols that has a longer range and won’t interfere with other wireless networks
    • Wireless range up to 200 ft with obstructions (normal building construction), 1,000 ft  clear line of sight
    • Read range, Proximity: up to 1.25 in., Smart card: up to .75 in., NFC mobile: mobile device dependent
    • Secure encrypted data transmission
    • Weather-resistant for interior and perimeter applications

    Convenience

    • Integrated design combines electrified lock, credential reader, request-to-exit and request-to-enter sensors, door position switch and tamper switch
    • Smart credentials can be used for vending and other applications
    • Non-invasive installation

    Standard model

    • Networked Wireless Cylindrical Lock
    • Satin Chrome Finish
    • Athens handle
    • Classroom/Storeroom function
    • Multi-technology with keypad (MTK) reader
    • Additional handles, readers and finishes available
    • Includes One Time License for use in PremiSys

    Get the key benefits of a hardwired access control system, without the wires! The Schlage AD-400 Networked Wireless Lock provides an adaptable solution to doors connected to an electronic access control system. This lock features a built-in credential reader and access control sensors for simplified installation. With its modular design and multiple reader options to choose from, you can customize the AD-400 to fit the needs of an application now, and update any future needs without removing it from the door. This allows you to secure doors that were traditionally difficult to run wires to in the past while increasing the security throughout your property.

    Offering a wide range of credential options such as smart card, proximity card, NFC mobile, and more, you will be able to use this lock in most any access control setting. AD-400 wireless locks can work in the same access control system as other wireless devices including Schlage NDE, LE, and the WRI400. Features and capabilities will vary by system.

    Available in cylindrical, mortise, mortise deadbolt and exit trim chassis options.*

    *Please note: Identicard PACS system is required to use this lock

    Basic

    Manufacturer Allegion
    ANSI Rating A156.25, Grade 1 (Best)
    Battery Type 4 AA
    BHMA Rating A156.25, Grade 1 (Best)
    Finish Satin Chrome
    Keyway 6 pin C
    Lock Features Audit Trail, Auto Relocking, Lockdown, Remote Control
    Radio Frequency 902 MHz up to 928 MHz
    Smartphone Compatibility Android 4.1 or later, iOS 10 or later
    Solution Electronic
    Warranty 2 Year Limited Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Smart Card/Fob
    Smartphone/App
    Locking Device Cylindrical Latch
    Brand Schlage AD
    Schlage AD Products

    Door requirements

    Door Handing Non-Handed
    Battery Life 2 Years
    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in.
    Latch Bolt 1/2 in. throw

    Security

    Credential Format 125 kHz Proximity, 13.56 MHz Smart Technology, MIFARE Classic, MIFARE Desfire, MIFARE Plus
    Credential Type 125 kHz Prox, Card, Fob, MIFARE
    Wireless Protocol Advanced Encryption Standard (AES), 128-bit
    Wireless Range 1000 ft.

    Dimensions

    Exterior Dimensions 9.46 (H) x 3.44 (W) x 3.67 (D) in.
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 3/4 in.
    Backset 2 3/4 in.
    Certifications ADA, FCC Part 15, UL 10C, UL 294
    Exterior Dimensions 9.46 (H) x 3.44 (W) x 3.67 (D) in.
