  • Schlage F10 Orbit

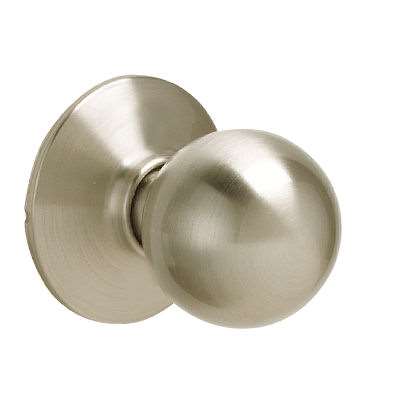

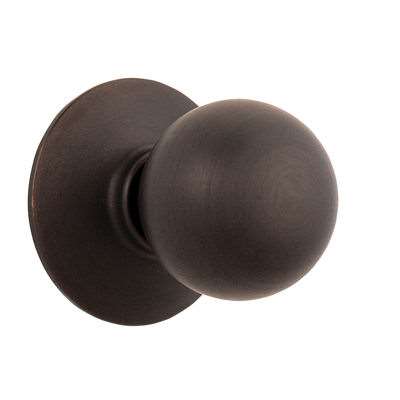

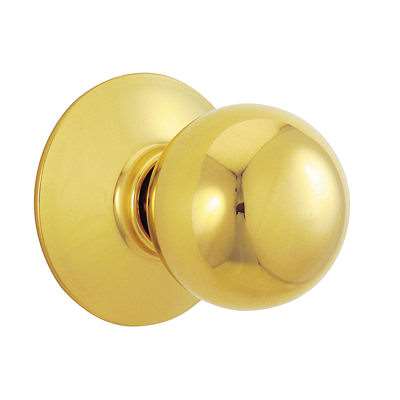

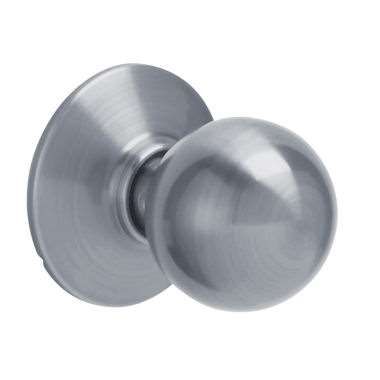

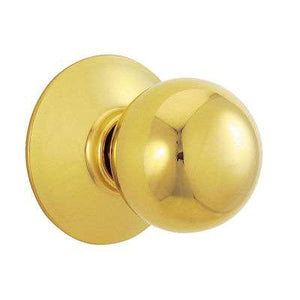

    Passage Knob Set

    SKU: F10ORB619



    Quantity left : 0

    • Non-locking – ideal for closets and rooms where locking is not needed
    • Easy 3-step installation, only a screwdriver needed
    • Quality materials and construction for exceptional security
    • Lifetime finish and mechanical guarantee (Oil-Rubbed Bronze is only a mechanical guarantee)
    • Quality finishes coordinate with plumbing and lighting
    • Applications: Residential single- and multi-family doors

    Schlage F51 entry locks, Schlage F40 privacy locks, and Schlage F170 dummy trim, compliment your new Schlage F10 by giving you the unique styling of Schlage throughout your home.  A complete collection of Schlage F Series locks is offered.

    Bold and beautifully crafted Grade 2 passage door knob set by Schlage makes itself right at home in your dwelling.  With an anti-tarnish finish on all exterior parts, the Schlage F10 Orbit door knob lasts for a lifetime, and portrays a dazzling, simple design.  Schlage non-locking F10 door knobs provide a free entry & exit on residential single and multi-family hall/closet doors.  You can also use this knob as your grip handle on a door with an existing deadbolt, or new Schlage BE365 keypad deadbolt.  In this setup, the F10 resides 2-1/4" inches below the lock on your door. (typically replaces door knob or lever) Schlage F10 Orbit knobs come equipped with a triple-option universal fit for nearly every hinged door, and feature a knob on both the inside and the outside. It works on either a left or right handed door.  Easy setup, using an adjustable cylindrical latch.  Step-by-step instructions included. Frequently purchased with Schlage F51 Orbit entry knob, Schlage F170 Orbit dummy trim, and Schlage F40 Orbit privacy bed/bath door knob lock.


    Manufacturer Allegion
    ANSI Rating A156.2, Grade 2 (Better)
    Finish Satin Chrome, Satin Nickel, Oil Rubbed Bronze, Bright Brass, Antique Brass, Lifetime Bright Brass, Bright Chrome, Antique Pewter
    Function Passage
    Handle Type Knob
    Locking Device Cylindrical Latch
    Brand Schlage

    Door requirements

    Door Prep Standard 2 1/8 in. Cross-Bore



    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 1 3/4 in.
    Backset 2 3/8 to 2 3/4 in. adjustable
    Certifications ADA, UL/cUL Listed
