Schlage MTB15-C1
Multi-Technology Reader
SKU: MTB15
$460.00 $318.46 SAVE 31%

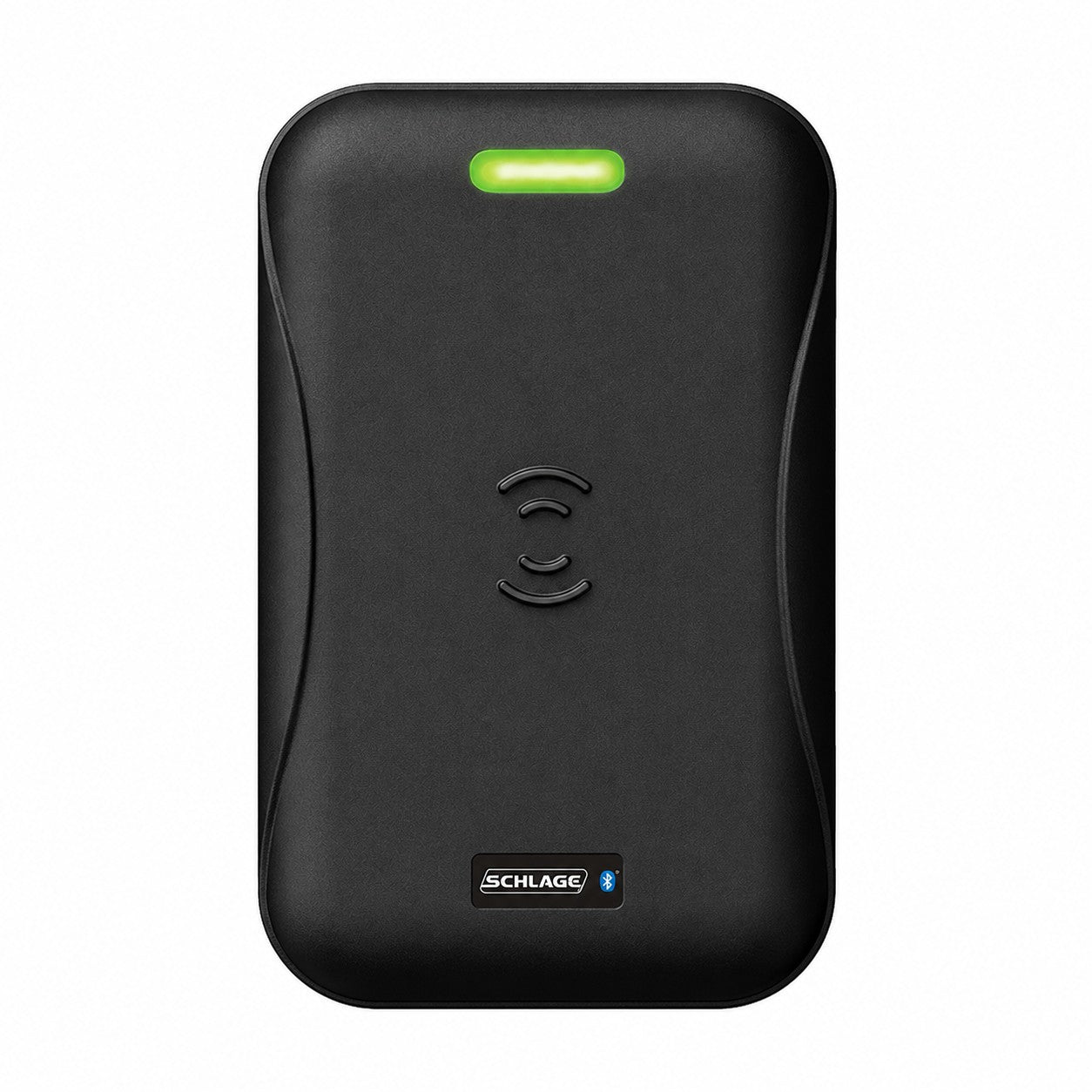

Schlage MTB15-C1
- +

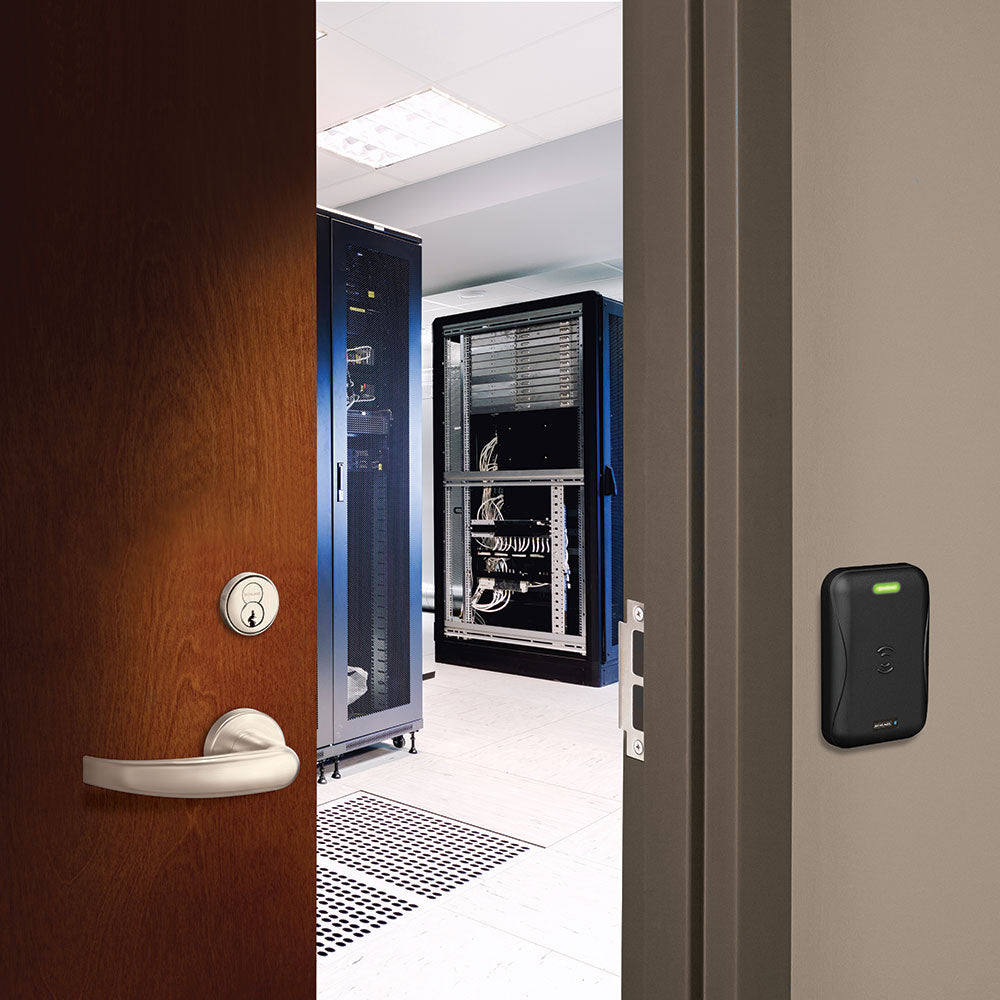

The Schlage MTB15 is the single gang mobile enabled multi-technology reader that replaces the discontinued MT15. It reads the 125 kHz proximity and 13.56 MHz smart cards your building already runs on, and it adds mobile credentials over Bluetooth and NFC, so residents and staff can unlock the door with a phone or a pass in Apple Wallet and Google Wallet from up to 30 feet away.
Move to mobile on your own timeline without swapping readers. The MTB15 ships in Plug and Play mode for straight out of the box use, commissions through the Schlage ENGAGE mobile app, and supports Wiegand, Clock and Data, and RS-485 with OSDP and OSDP Secure. A broad 5 to 28 VDC range and an improved quick connect cable keep installation simple on interior, exterior, metal, and non-metal openings.
Basic
| Manufacturer | Allegion |
|---|---|
| Color | Black (standard) |
| Input Voltage | 5 to 28 VDC |
| Radio Frequency | 2.4 GHz, 13.56 MHz, and 125 kHz |
| Smartphone Compatibility | Apple Wallet, Google Wallet, Bluetooth and NFC smartphones |
| Reader Type | Front-end Only Multi-Technology Prox Card/Fob Smart Card RFID |
| Access Type | Proximity Card/Fob |
| Brand | Schlage |
| Temperature Range | -40 to 158F (-40 to 70C) |
Door requirements
| Mounting | Single gang |
|---|
Security
| Credential Type | Proximity, Smart Card (MIFARE), NFC Mobile, Bluetooth Mobile, CSN |
|---|---|
| Certifications | UL 294/cUL Listed, FCC, IC, CE Mark, IP65, RED Directive, Bluetooth SIG, RoHS 3, REACH |
Dimensions
| Dimensions | 5.1" x 3.25" x 0.76" (12.9 x 8.3 x 1.9 cm) |
|---|
