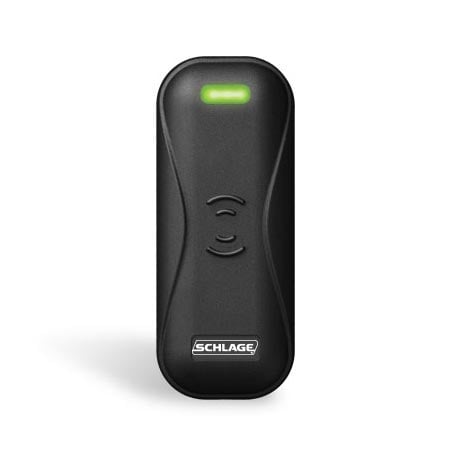

  • Schlage SM10

    Contactless Smart Card Reader

    SKU: SM10

    Schlage



    Mini-mullion mounted access control card reader for aluminum frame glass office and storefront doors.

    Quantity left : 8

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $29.05

    • Accommodates interior, exterior, metal, and non-metal installation environments
    • Recognizes most proximity, Schlage MIFARE Classic, and Schlage MIFARE DESFire EV1 credentials in one multi-technology reader
    • Reads CSN (card serial numbers) of HID iCLASS, Inside Technologies PicoTag, ST Microelectronics, Texas Instruments Tag-It, and Phillips I-Code
    • FIPS 201-1 Compliant
    • NFC Compatible
    • Quick-connect cable for easy installation
    • Easy-to-install mounting bracket
    • Tri-state LED (red, green, amber) visual indicator and audio feedback representing status and activity information, easily discernible for the auldibly or visually impaired
    • Wiegand output for simple interface with most access control panels
    • Black finish, may be custom ordered in other color options
    • Limited Lifetime Warranty

    Specs

    • Dimensions:  4.26″ x 1.72″ x 0.81″
    • Weight:  3.9 oz
    • Read Range: o MIFARE–Up to 3″ o MIFARE DESFire EV1–Up to 2″
    Are you following in the footsteps of the US Government and blue-chip companies by switching over your employee's identification credentials to smart cards and need a new reader to authenticate them?  The SM10 card reader from Schlage is a popular choice among executives and managers who need smart only access control.  The reader is small enough to let you install it in areas where you only have a minimal amount of space, for instance narrow stile openings.  Before purchasing, verify that all personnel are properly credentialed with a smart ID card.  The SM10 will not communicate with cards on a proximity platform.  The Schlage multi-technology reader MT11 is a better option for environments with a mix of prox and smart.  ISO compliant and using a Wiegand interface, the SM10 is compatible with virtually all physical access control systems.  It's modern design makes it an attractive choice for applications where aesthetics are important.  Reader comes embedded with NFC (near field communication) technology to protect your investment and future proof it against emerging mobile badging technologies.
    MT11 is a better option for environments with a mix of prox and smart. ISO compliant and using a Wiegand interface, the SM10 is compatible with virtually all physical access control systems. It's modern design makes it an attractive choice for applications where aesthetics are important. Reader comes embedded with NFC (near field communication) technology to protect your investment and future proof it against emerging mobile badging technologies.

    Basic

    Manufacturer XceedID Corporation
    Reader Type Front-end Only
    Smart Card
    Brand Schlage

    Door requirements

    Security

    Dimensions
