  • Schlage SUS-A Kit

    USB and 2-pin Android Cable

    SKU: 47282796 SUS-A Kit

    Schlage

    Panic bar/exit device sold separately.

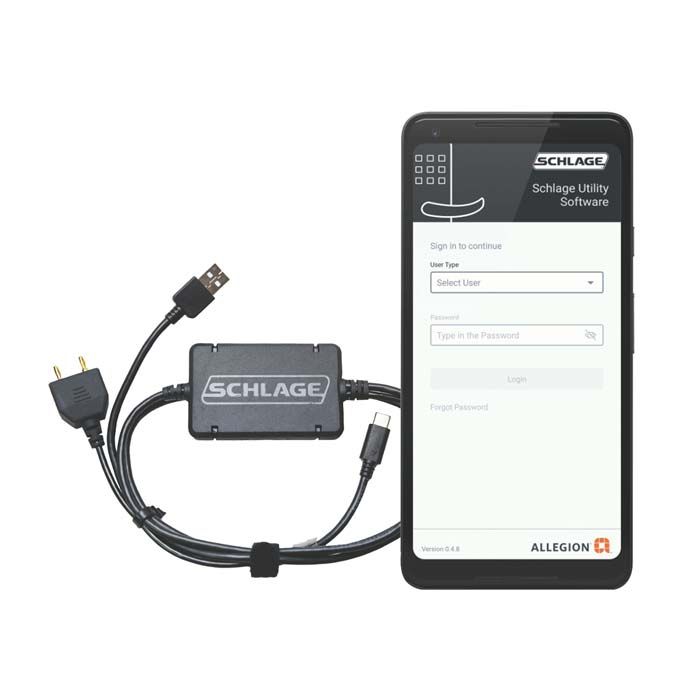

    All-in-one solution for linking Schlage networked and offline locks and devices. Configure devices, test operational status, perform ongoing system maintenance and update device firmware through the intuitive SUS Android mobile app.

    Quantity left : -5

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $36.13

    Call For Price
    • Intuitive, free Schlage Utility Software (SUS) mobile app for Android devices
    • Single cable for Schlage AD and CO Series locks and legacy devices
    • Includes USB-A for Schlage USB enabled devices and a 2-pin serial connection for Schlage serial enabled devices
    • Facilitates initialization of locks and accessories
    • Configures and tests devices
    • Simplifies firmware updates
    • Cellular plan is not required for operation
    • Import/Export Device Configuration feature simplifies configuration process
    • Ability to reclass Schlage AD Series locks
    • Manager and Operator user modes

    Lock/Device Compatibility

    • AD-400/401/402, AD-300/301/302 locks, AD Series readers
    • PIM400 (RSI and TD2), WPR400, WPR401, PIB300
    • BE367/FE210 (SPED) locks
    • AD-200, AD-201, AD-250 locks (compatible in late 2020)
    • CO-200, CO-220, CO-250 locks (compatible in 2021)
    • WRI400, CT5000 controller, CM, CL, KC2 locks  (compatible in  2021)

    Android Device Compatibility Recommendations

    • Android Pie 9.0 or newer (minimum SDK 28)
    • Google Pixel 3 or newer
    • Moto G6 or newer
    • Samsung S8 or newer
    • Apple devices are not compatible with the SUS and SUS-A cable solution

    The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the current SUS and HHD solution.

    The SUS and SUS-A cable are used with networked and offline locks to initialize and configure devices, test operational status, perform ongoing system maintenance and update device firmware.

    In addition, for offline devices, the SUS solution is utilized to transfer access control data from the Schlage Express access control software (such as authorized user lists) via a mobile device and cable to the locks or accessories. SUS is also utilized to download audit trail information from locks to the mobile device and then transfer that data to Schlage Express for analysis and storage.

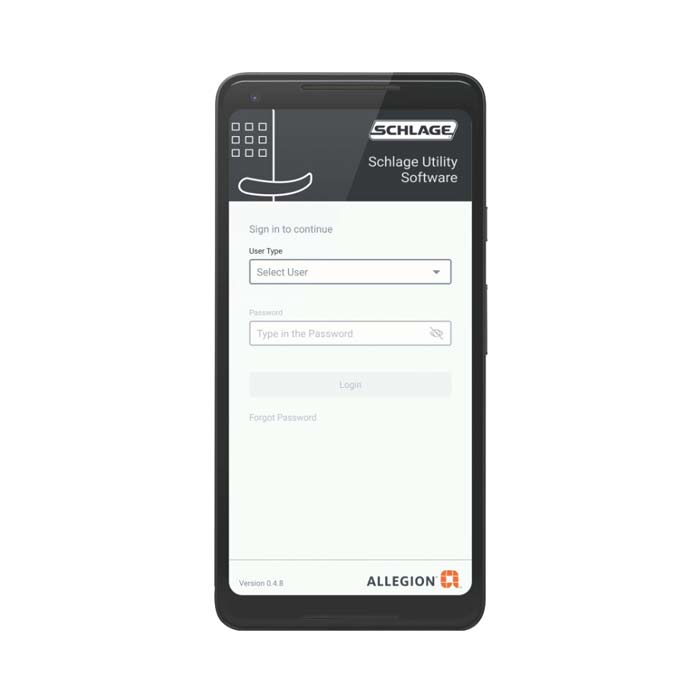

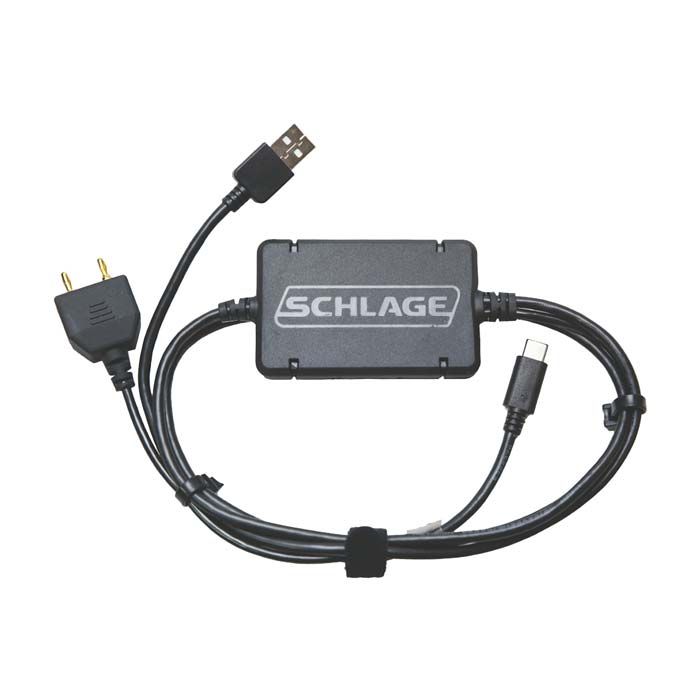

    The intuitive screen layout of the free SUS mobile app provides easy navigation during use. The SUS-A cable is an all-in-one solution with separate connectors – USB-A for our USB enabled devices and a 2-pin serial connection for our serial enabled devices – to connect the mobile device to the locks.

    Basic

    Manufacturer Allegion
    Color Black
    Warranty 1 Year Manufacturer
    Brand Schlage

    Door requirements

    Security

    Dimensions

    "<img src=""https://www.gokeyless.com/wp-content/uploads/2008/03/schlage-blue-logo-300x74.gif"" alt="""" width=""300"" height=""74"" class=""aligncenter size-medium wp-image-34243"" />

    The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the current SUS and HHD solution.

    The SUS and SUS-A cable are used with networked and offline locks to initialize and configure devices, test operational status, perform ongoing system maintenance and update device firmware.

    In addition, for offline devices, the SUS solution is utilized to transfer access control data from the Schlage Express access control software (such as authorized user lists) via a mobile device and cable to the locks or accessories. SUS is also utilized to download audit trail information from locks to the mobile device and then transfer that data to Schlage Express for analysis and storage.

    The intuitive screen layout of the free SUS mobile app provides easy navigation during use. The SUS-A cable is an all-in-one solution with separate connectors – USB-A for our USB enabled devices and a 2-pin serial connection for our serial enabled devices – to connect the mobile device to the locks."
