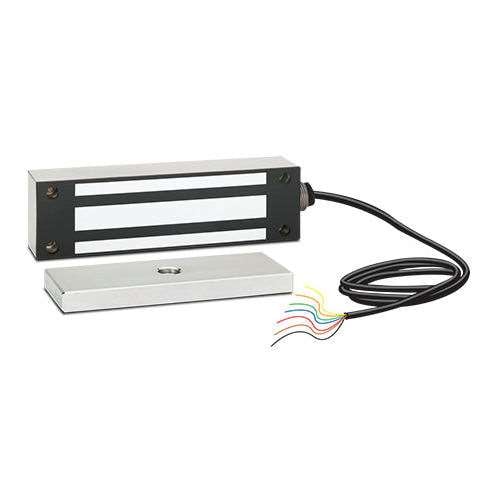

    Electromagnetic Gate Lock

    SKU: 1576U


    Weatherized maglock for swinging or sliding gates with inherent failsafe operation in case of power loss to ensure free exiting. Applications requiring continuous power for security, simply connect SDC 600 series power supplies with battery backup.  Gate EMLock helps with prevention and safety initiatives for gates in public parks, community fields, and other venues.

    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • Face drilled mounting
    • Built-in bond sensor (BAS)
    • Built-in door position sensor (DPS)
    • Stainless Steel Case
    • Epoxy filled for weather resistance
    • Threaded conduit fitting (1/2 x 3/4 in.)
    • Built-in voltage kickback protection
    • Low power consumption
    • 3 Ft. cable

    GoKeyless is a trained and authorized SDC dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    SDC’s Gate EMLock® provides 1200lbs of holding force and enables the access and egress control of pedestrian and vehicle gates. Access controls such as card readers, digital keypads and remote control stations provide gate and lock control.

    Gate EMLocks are compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet.


    Manufacturer Security Door Controls
    ANSI Rating Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Finish Brushed Stainless Steel
    Holding Force 1200lb
    Voltage 12/24 VDC
    Warranty Lifetime Manufacturer
    Brand SDC

    Door requirements



    Armature Dimensions 7 3/4 (L) x 2 13/32 (H) x 5/8 (D) in.
    Lock Dimensions 8 11/16 (L) x 2 1/2 (H) x 1 5/8 (D) in.
    Weight 10 lbs
