SDC 422

Name: SDC 422
Brand: GoKeyless
SKU: 422U
Price: 55.91 USD
Availability: InStock

2 in. Exit Switch

SKU: 422U

SDC

You can push our buttons. The SDC 422 2 in. Exit Switch provides easy push button access for hospitals, hotels, libraries and more. Featuring large symbols and illuminated buttons making it simple for children, elderly and those with disabilities to operate.

$55.91

Features
Description
Specifications

Single 2 in. momentary switch button for easy activation
The high impact resistant material stands up to abuse
Single gang, 20 gauge faceplate
Illuminated 12/24VDC
Momentary SPDT, 5 Amps @ 30VDC
6 in. wire leads

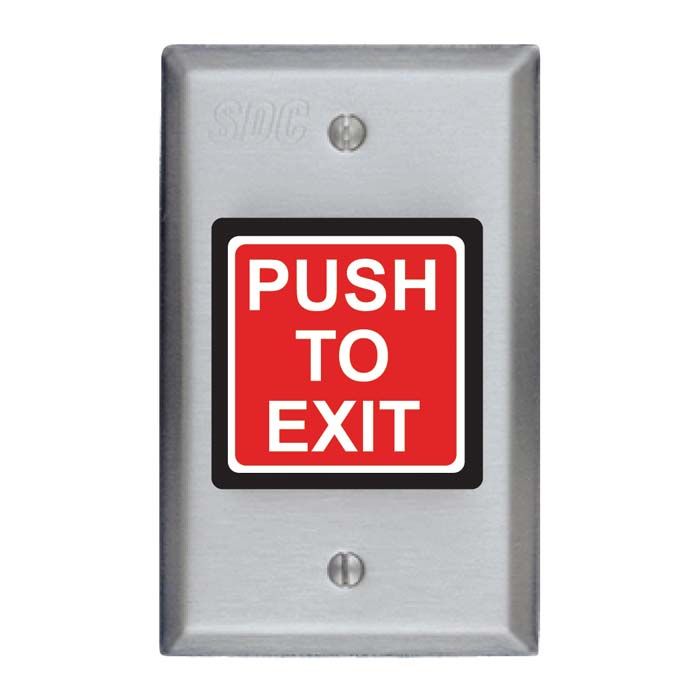

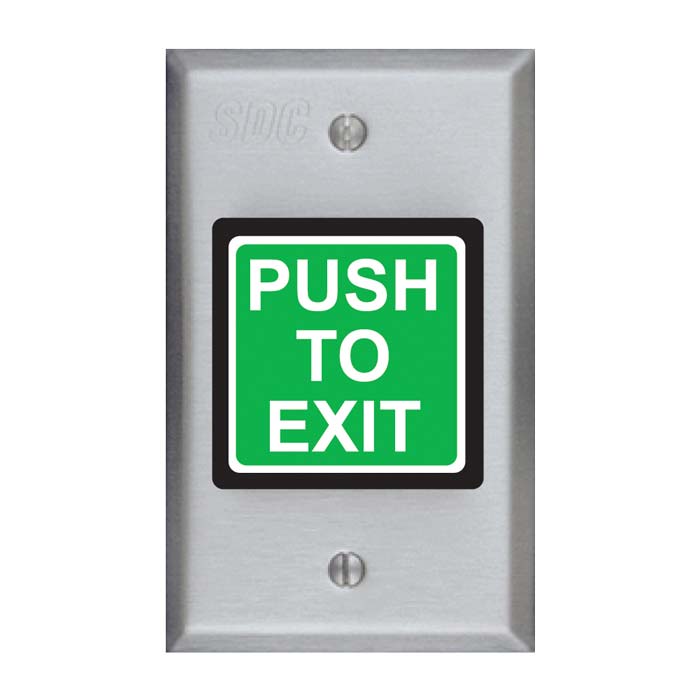

422U

“PUSH to EXIT” sign complies with NFPA requirements
Green and Red illuminated lenses included

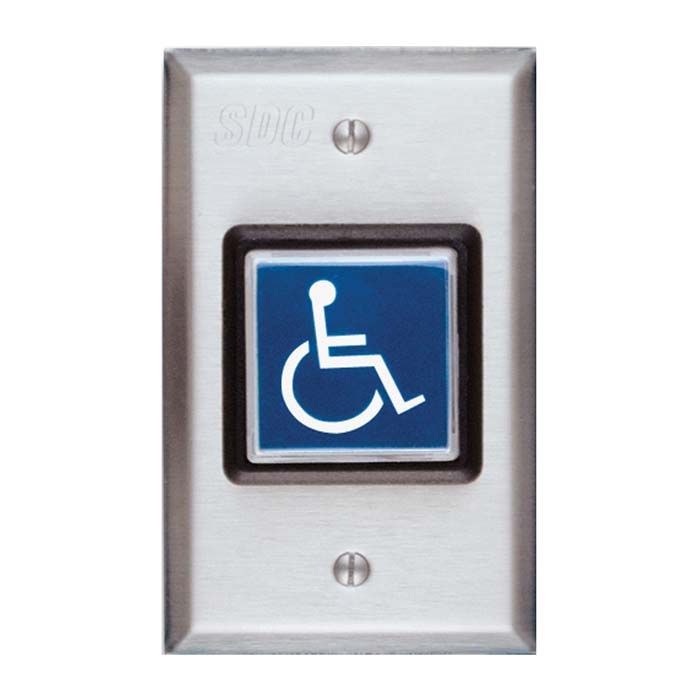

422AU

Wheelchair symbol
Blue illuminated lens only

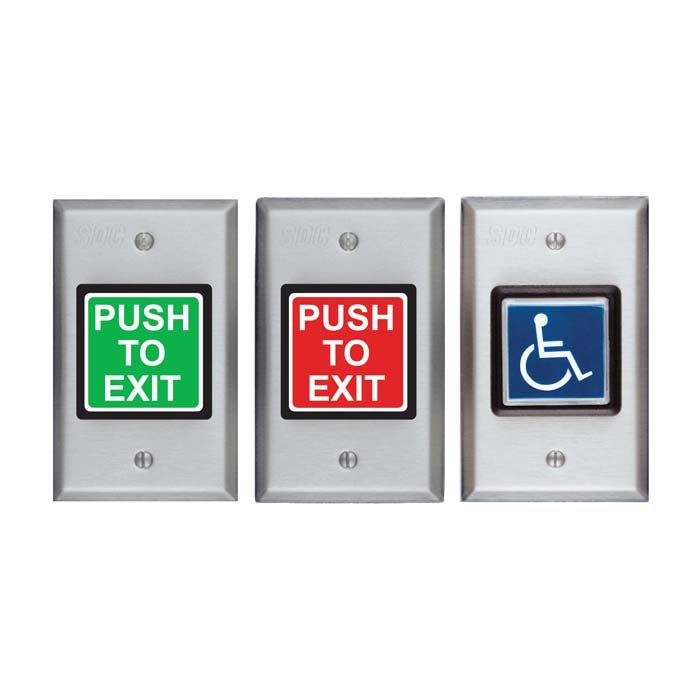

The SDC 420 Series 2 in. Exit Switch grants easy push button access for hospitals, hotels, libraries and more. This NFPA compliant, single gang 20 gauge faceplate is made from high impact resistant material to stand up to daily use and abuse. No more knobs to turn or levers to pull, the 420 series switch provides a single easy to clean contact point for keyless operation. Press the highly visible illuminated button to activate doors in moments, simple for children, elderly and those with disabilities to operate. Available in 422U Push to Exit (Red/Green lens) and 422AU Assisted Access (Wheelchair symbol, Blue) models.

Basic

Manufacturer	Security Door Controls
Finish	Stainless Steel
Power	12/24 VDC
Brand	SDC

Door requirements

Security

Dimensions

Dimensions	4 1/2 (H) x 2 7/8 (W) in.

SDC 422

Basic

Door requirements

Security

Dimensions
