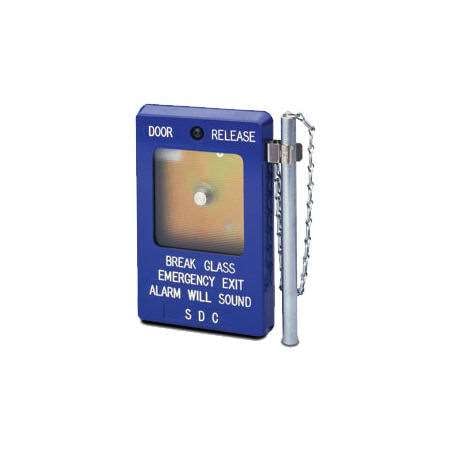

    Break Glass Emergency Door Release

    SKU: 491

    SDC



    Less false alarms! Compared to pull stations, this glass break release requires a swing of the aluminum rod to cut the power and unlock the door.

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $28.28

    Call For Price
    • Aluminum rod Blue housing with easy to read activation instructions avoids confusion with red fire alarm stations
    • Aluminum rod for striking the glass is included (Not required to break the glass)
    • The SDC 491 may initiate the release of an individual door or all doors on the same circuit
    • 2-SPDT 10 Amp Contacts – 1-SPDT for lock release and 1-SPDT auxiliary contact for remote monitoring, CCTV activation or alarm activation
    • The SDC 491 may be mounted in a 2” deep single gang back box or double gang box with plaster ring cover
    • The SDC 491 may be surface mounted with a 491-BB surface mount back box
    • 2 Replacement glass plates

    The SDC 491 Emergency Door Release Break Glass Station provides immediate unlocking of perimeter doors or interior doors that are equipped with fail-safe electric locks.

    The 491’s built in alarm may be used as a local door annunciator. The SDC 491 is specifically designed for emergency door release and may influence the approval of an electric locking system. This type of Emergency Door Release may be preferred over a pull station since greater commitment is required to break the glass.

    Basic

    Manufacturer Security Door Controls
    Warranty 5 Year Manufacturer
    Brand SDC

    Door requirements

    Security

    Dimensions

    Dimensions 5.5 (H) x 3.5 (W) x 1.375 (D) in.

    "<p style=""text-align: left;""><img class=""size-full wp-image-45057 aligncenter"" title=""GoKeyless is a trained and authorized SDC dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year."" src=""https://www.gokeyless.com/wp-content/uploads/2016/12/SDC-blue-logo.gif"" alt=""GoKeyless is a trained and authorized SDC dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year."" width=""300"" height=""130"" /></p>

    The SDC 491 Emergency Door Release Break Glass Station provides immediate unlocking of perimeter doors or interior doors that are equipped with fail-safe electric locks.

    The 491’s built in alarm may be used as a local door annunciator. The SDC 491 is specifically designed for emergency door release and may influence the approval of an electric locking system. This type of Emergency Door Release may be preferred over a pull station since greater commitment is required to break the glass."
