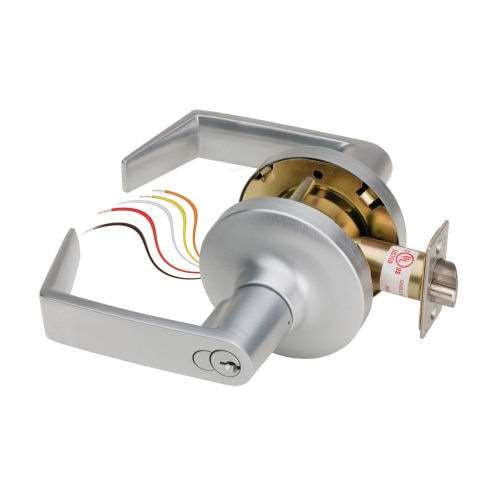

  • SDC Electra™ Pro 7200 Series

    Electrified Cylindrical Lockset

    SKU: Z7250GQ6PKD

    SDC



    The SDC Electra™ Pro 7200 Series Electrified Cylindrical Lockset is suitable for use in commercial, industrial and institutional applications where code compliance, dependable operation, and increased vandal and abuse resistance is required. Featuring dual voltage and Fail Safe or Fail Secure operating modes.

    Lock Mode
    Key Override
    Lever Design

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $65.64

    • Latch status output standard with all locksets
    • Dual Voltage 12 and 24VDC
    • Choice of Failsafe or Failsecure operating mode
    • Clutch allows the lever to operate while the door stays locked for increased vandal and abuse resistance
    • Independent power return springs for effective lever action and prevention of lever sag
    • SDC cylinder with ‘C’ keyway
    • Small format interchangeable core (Optional)
    • No exposed mounting screws
    • Strikes available to match existing frame preparation
    • Custom orders accepted in choice of seven architectural finishes
    • Exceeds ANSI A156-2 Grade 1 specifications
    • SDC lever handle styles comply with ADA Easy Access Requirements and CSFM, California State Fire Marshal, Title 19
    • Latch Status Output SPDT 3 amps @ 30VDC
    • May be used in new or retrofit construction
    • Building and Fire Life Safety Code Compliance
    • Ideal for high usage environments
    • Retrofits existing mechanical lock prep

    GoKeyless is a trained and authorized SDC dealer. Sales, service, and support. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    The Electra™ Pro, SDC’s premier electric cylindrical lockset incorporates the latest innovative design features, including a clutch. Plus, Latch Status Output is standard.

    Z7200 Electrified Cylindrical Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.

    Basic

    Manufacturer Security Door Controls
    Voltage 12/24 VDC
    Warranty Lifetime Manufacturer
    Brand SDC

    Door requirements

    Door Handing Universal
    Door Prep Channeling, Edge Bore: 1 in.
    Latch Bolt 9/16 in. Throw
    Strike 4 7/8 in.

    Security

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 1/8 in.
    Backset 2 3/4 in.
    Weight 7 lbs
