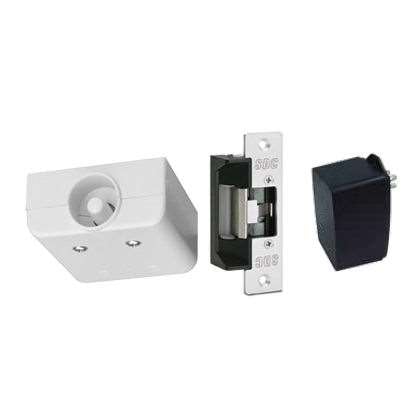

    Door Buzz-In Electric Strike Kit

    SKU: GKIT-15-2-Kit

    SDC



    Momentary push concealed desk switch.

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $51.44

    15-2 Concealed Desk Switch

    • SPDT momentary push switch, 10 Amp @ 30VAC/DC
    • Appx. 5 second pulse of unlocking time
    • REX input of an access control or to the trigger input of a time delay relay to allow timed access and egress
    • Dimensions:  1″H x 2.25″W x 2.5″D

    Uni-Flex 45-A Electric Door Strike

    • Compact low profile (1-3/16″ deep)design with an internally mounted solenoid for fast, easy installation
    • Plug-in wire connectors
    • All stainless steel parts with durable die cast body for corrosion resistance
    • Fewer moving parts for maximum life
    • 630 stainless steel finish
    • ANSI A156.31 compliant

    TR24 Power Supply

    • 1 Amp 24VDC Regulated Plug-In Power Supply
    • Thermal overload protection
    • Secondary connection: 6ft wire leads
    • Primary Input: 120VAC
    • UL Listed, Class 2

    GoKeyless™ is a factory trained and authorized Security Door Controls dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    There's no easier way to covertly unlock the door from your desk than with this bundled kit. Using equipment from SDC, a leading US based manufacturer of security, access control, and locking systems, this kit contains everything you need, less the wire, to setup your door buzzer system. The concealed desk switch mounts easily to the underside of a desk for remote door control. The switch includes a push button for momentarily energizing the electric strike, and unlocking it. The person at the door will hear the click sound, indicating to come in. A 24V DC transformer plugs into an outlet, and then connects via wire to the desk switch, and electric strike. The strike provided is the Uni-Flex 45-A model. This is a universal electric strike with 3 different faceplates and mounting tabs to make installation simple, especially when jamb space is limited. It comes with latch position status, and keeper status built in for door status monitoring when integrated into an access control system. Managing your door traffic can now be done rather secretly with the push of a button.

    Basic

    Manufacturer Security Door Controls
    Product Headline Door Buzz-In Electric Strike Kit
    Brand SDC

    Door requirements

    Security

    Dimensions
