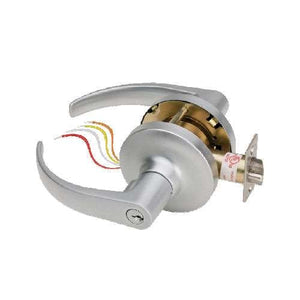

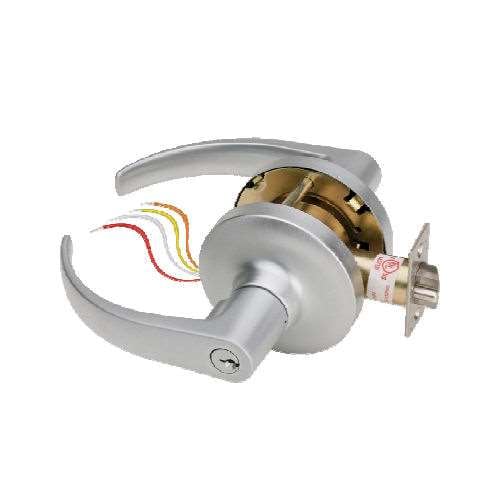

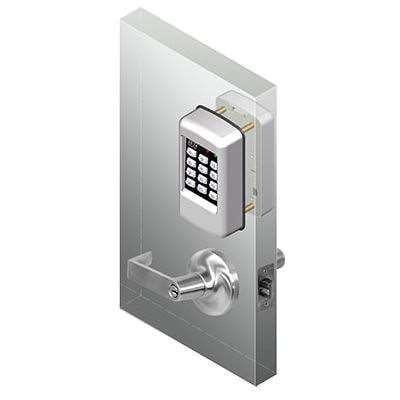

SDC EntryCheck E75K
Standalone Digital Keypad Electronic Lockset
SKU: E75KQE1Q
$732.00 $490.65 SAVE 33%
The SDC EntryCheck® E75 is an indoor/outdoor standalone electronic battery powered solution, providing controlled access for basic and multi-level high security requirements. The E75PS locksets are keypad or PC software programmable, and combine multiple access technology with efficient motorized locksets.
Basic
| Manufacturer | Security Door Controls |
|---|---|
| ANSI Rating | Grade 1 (Best) |
| Battery Type | AA |
| Finish | Satin Chrome |
| Inputs | 1 Door Position Switch, 1 Request to Exit |
| Lock Features | Passage Mode, Scheduling |
| Power | 4 AA Batteries or External 12VDC Power @ 30mA |
| Solution | Electronic |
| Warranty | 5 Year Manufacturer |
| Handle Type | Lever Handle Door Locks |
| Access Type | Key Keypad - Digits |
| Locking Device | Cylindrical Latch |
| Brand | SDC SDC EntryCheck |
Door requirements
| Battery Life | 100,000 |
|---|---|
| Latch Profile | 9/16 in. Throw |

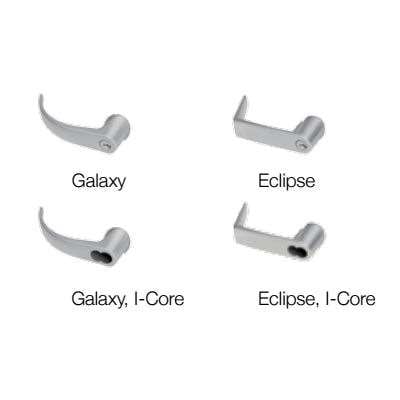

| Lever Design | Eclipse, Galaxy |
Security
| Code Length | 4 to 6 Digits |
|---|---|
| Code Capacity | 3,000 |
| Key Override | Standard Key Override, Less IC core |
Dimensions
| Door Thickness Minimum | 1 3/4 in. |
|---|---|
| Door Thickness Maximum | 2 1/8 in. |
| Backset | 2 3/4 in. |
| Weight | 6 lbs |
