  • SDC Sure Exit PSB560

    Pressure Sense Bar

    SKU: PSB560U

    SDC



    The PSB560 is a slim heavy duty egress bar. No moving parts makes for quick and quiet operation, and the tri-failsafe feature improves safety and reliability. Adjustable activation force even allows for the frail or disabled to release the bar using a cane or wheelchair.

    Finish
    Door Width

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $64.16

    • Tri-failsafe for unequaled safety and reliability
    • Human touch not required, ensuring superior safety release for the frail, disabled, and wheelchair bound
    • No moving parts for quick and quiet operation
    • Sensor calibration not required
    • Slim low profile heavy duty design
    • Heavy duty aluminum extrusion and rugged metal endcaps
    • All metal mounting assembly
    • Two 5 Amp, SPDT outputs
    • 10 ft cable and power transfer loop
    • Activation force adjustable up to 15 lbs
    • CSFM, California State Fire Marshal Listed
    • UL Listed, Access Control System Units & Burglary Resistant

    Also available 42 in. door width and Bright Stainless Steel finish by special order

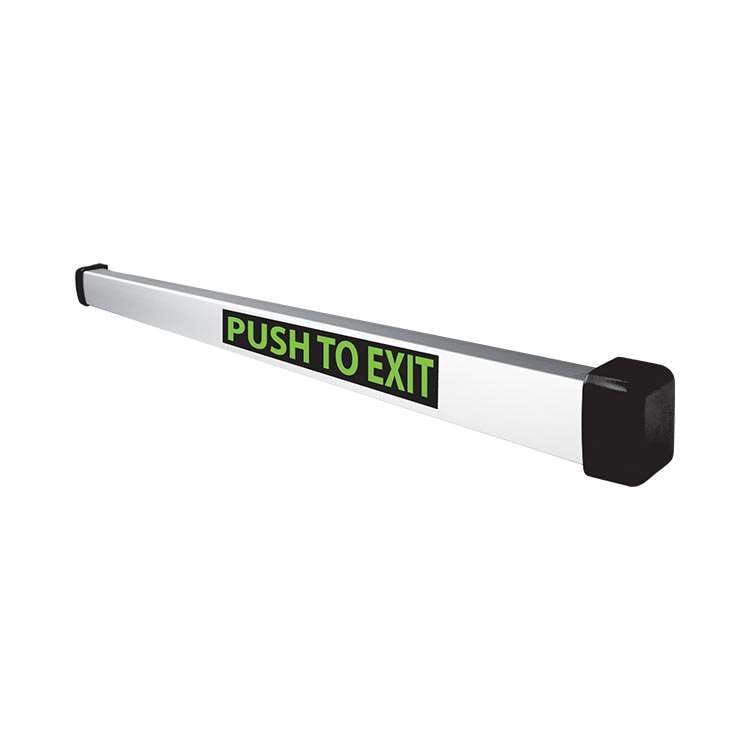

    The Sure Exit PSB560 Pressure Sense Bar is a heavy-duty aluminum constructed egress bar that is designed for quick and easy egress. When the bar is pressed it actuates one of two solid state pressure sensors to release the magnetic door lock. There is a third microswitch that will automatically release the door if the other two sensors or electronics fail. The activation force is adjustable up to 15 lbs. The low profile bar is made of heavy-duty aluminum and the mounting assembly is all metal. Included is a 10 ft. 8 conductor cable and a 18 in. armored power loop which enables wiring from the door to the frame.

    Basic

    Manufacturer Security Door Controls (SDC)
    Voltage 12/24 VDC
    Warranty 5 Year Manufacturer
    Brand SDC

    Door requirements

    Security

    Dimensions

    Dimensions 2.375 (H) x 1.875 (D) in.
    Temperature Range 0º to 150º F
    Weight 6.5 lbs
