  • Securitron DK-26

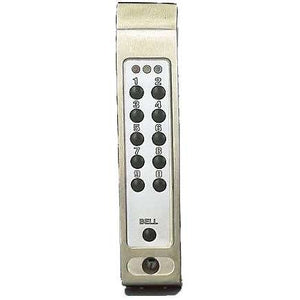

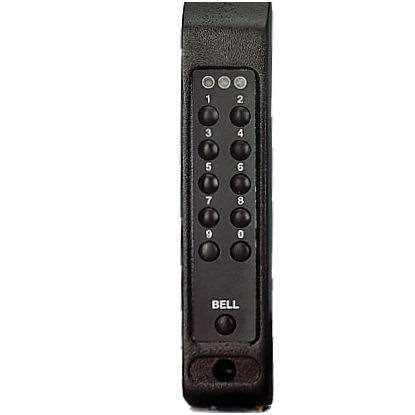

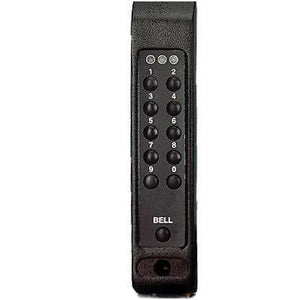

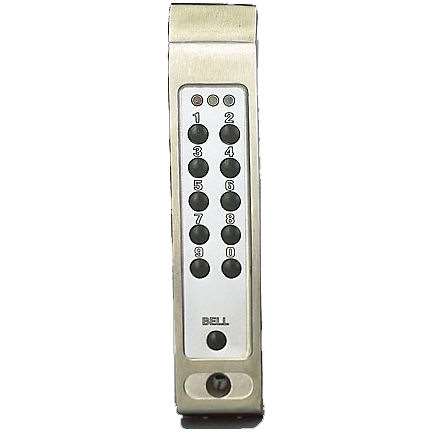

    Digital Keypad Entry System

    SKU: DK-26SS



    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $74.00

    • Cast stainless steel with 11 EPDM (ethylene propylene diene terpolymer) rubber keys
    • Weatherproof and vandal resistant
    • Mounts on a narrow mullion
    • True 10 digit operation (keys are not paired)
    • Wiegand output available (sold separately)
    • Digital Keypad System circuit board mounts in a metal enclosure and provides for 59 multiple users, expandable to 119
    • User code and/or hard code disable feature
    • 5 Amp DPDT relay output for lock control and alarm shunt, camera call-up or other device interface, REX input
    • 16 ft. , 12 conductor, 22 gauge keypad cable for connecting exterior keypad to interior CPU unit
    • 3 LEDs and a bell button

    Specs

    • Current Draw: 7mA@ rest, 160mA active, 12VAC or VDC. 20mA@ rest, 190mA active, 24VAC or VDC
    • Voltage: 12 or 24 VDC - power supply available at checkout
    • Operating Temperature: CPU +32 to +158F Keypad -22 to +158F
    • Shipping Weight: 5.0 lbs.
    • Warranty: MagnaCare Lifetime Replacement Warranty

    Typically mounted on the door frame, the DK-26 series narrow-stile keypad is a digital keypad system designed for medium/high security control of electric locks, including electric strikes or mag locks.  For higher security, it is delivered in two parts. The keypad surface mounts via hidden screws and the CPU board mounts with steel enclosure inside the building. (16 ft. cable furnished)  No matter what a vagrant may do to the keypad itself (including severing the cable), the door will not open.  The rugged stainless steel keypad is fully weatherproof and can be mounted outdoors and in most environments.  It is designed for long life under demanding use.  How many keypads can you control with the CPU?  Two - great for two way door control.  Simply add the keypad only part at checkout.

    Basic

    Manufacturer Securitron
    Finish Black, Stainless Steel
    Reader Type Keypad

    Door requirements

    Security

    Dimensions
