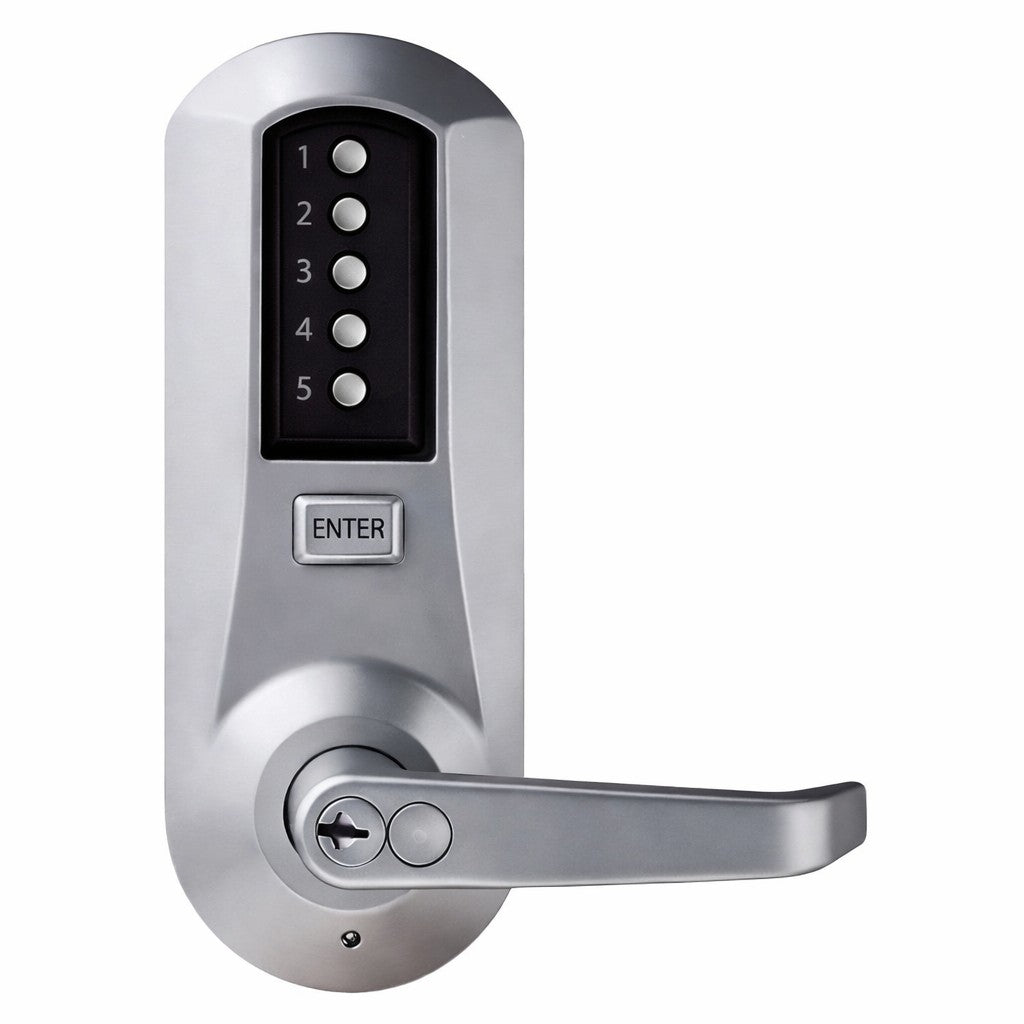

dormakaba Simplex 5021B

Name: dormakaba Simplex 5021B
SKU: GKIT-5021BWL26D41
Price: 533.35 USD
Availability: InStock

Extra Heavy-Duty Push Button Lock

SKU: GKIT-5021BWL26D41

Keep it simple. The Simplex 5021B hits the top of the charts for security and reliability with easy keyless access. This heavy duty and fully mechanical keyless lock reduces the costs and problems associated with electronic maintenance, managing keys, and labor. Best equivalent IC core included for key override.

$927.00 $952.00 $952.00 $952.00 $1,027.00 $533.35 SAVE 42%

Price includes a manufacturer surcharge due to tariffs effective May 1, 2025

Features
Description
Specifications

ADA compliant lock
100% Mechanical push-button lock

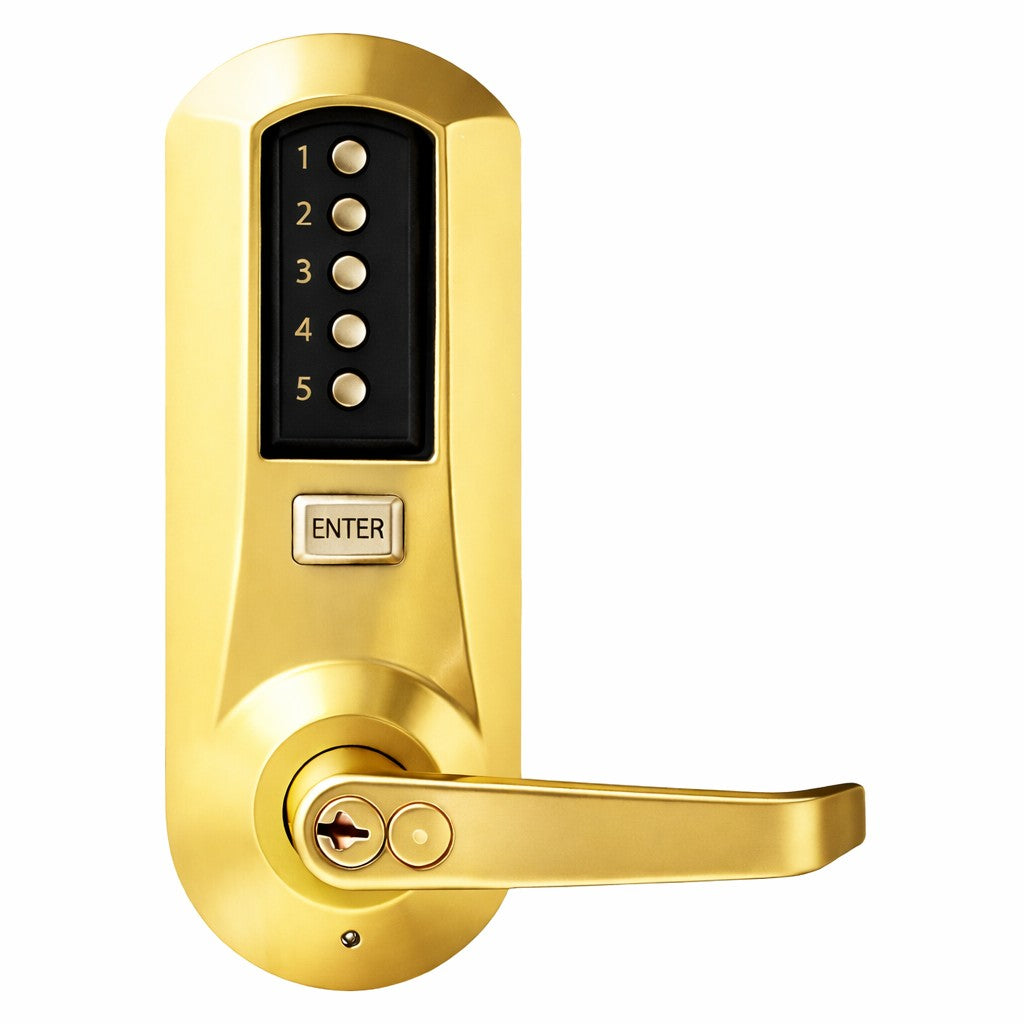

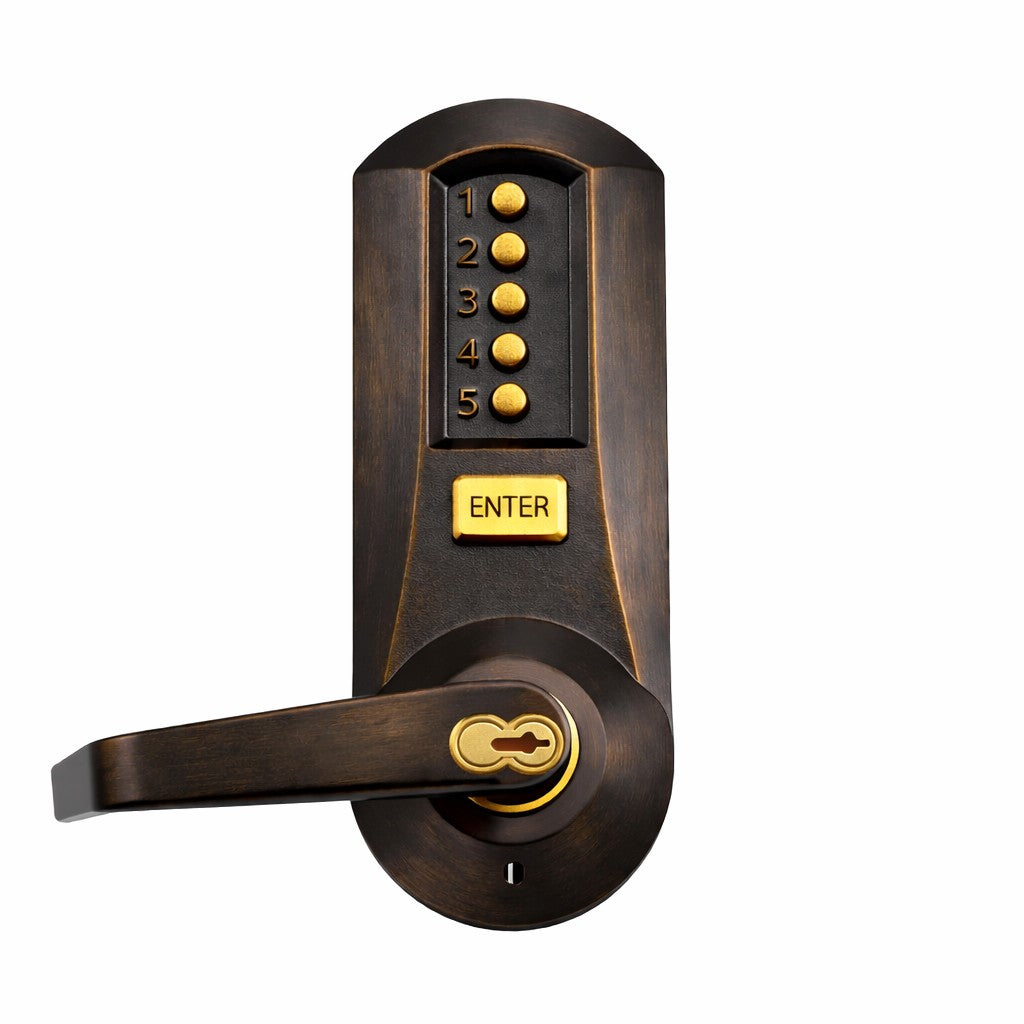

6 decorative finishes. Bright brass and satin brass are PVD finishes. The dark bronze PVD finish is a simulated 10B/613 finish and has brass accents
Thousands of possible codes combinations

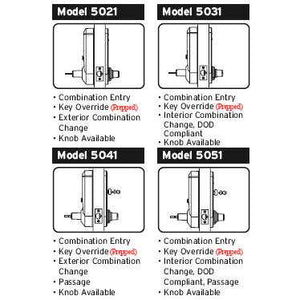

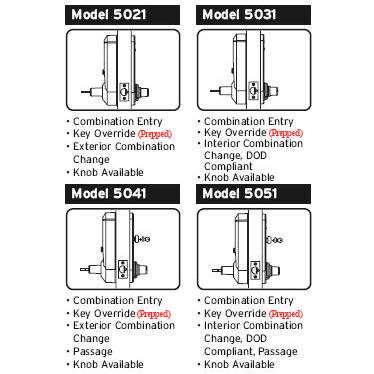

Change code with change tool (provided) from exterior side on 5021 and 5041 models, interior side on 5031 model to meet Dept. of Defense standards
Auto-locking; can be ordered with passage mode feature in 5041 model
Covers existing standard ASA 161 door hole
Extra Heavy Duty Latchbolt with deadlocking plunger
Fits left and right swinging doors
All hardware and instructions included with order
Backset: 2 3/4" included (2 3/8" available at checkout) How do I measure?
Low maintenance, no batteries or wires
Fits nearly all hinged doors
Key override - furnished with a combinated (keyed up) Falcon brand 6-pin IC key core. Includes one IC core change key, and two operating keys
3-year manufacturer warranty

Simplex 5021B – Combination Entry / Key Override
(Best compatible IC core included)

Industrial-strength combination lock from dormakaba, a leader in premium security solutions for over 100 years. The Simplex 5000 Series is an ANSI Grade 1 rated lock designed for high-traffic environments and superior weather resistance. Entry is gained using a sequential 1- to 5-digit code. Vandal-resistant and PIN-based, Simplex locks are widely used in commercial, institutional, and government facilities.

Basic

Manufacturer	dormakaba USA Inc.
ANSI Rating	A156.2, Grade 1 (Best)
BHMA Rating	Grade 1 (Best)
Lock Features	Auto Relocking
Solution	Mechanical
Warranty	3 Year Manufacturer
Handle Type	Lever Handle Door Locks
Access Type	Key Keypad - Digits
Locking Device	Cylindrical Latch
Brand	dormakaba Simplex

Door requirements

Door Handing	Reversible
Door Prep	Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)
Door Opening	["Standard"]

Security

Code Length	1 to 5 Digits
Code Capacity	1
Fire Rating	3-hour UL/ULC fire rating for A labeled doors

Dimensions

Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Inside Dimensions	["8 7/8 (H) x 3 3/16 (W) x 2 1/8 (D) in."]
Door Thickness Minimum	1 3/8 in.
Door Thickness Maximum	2 1/4 in.
Backset	2 3/4 in.
Door Stile Width	Minimum 5 in.
Exterior Dimensions	8 7/8 (H) x 3 3/8 (W) x 3 3/16 (D) in.
Weight	9.25 lbs
