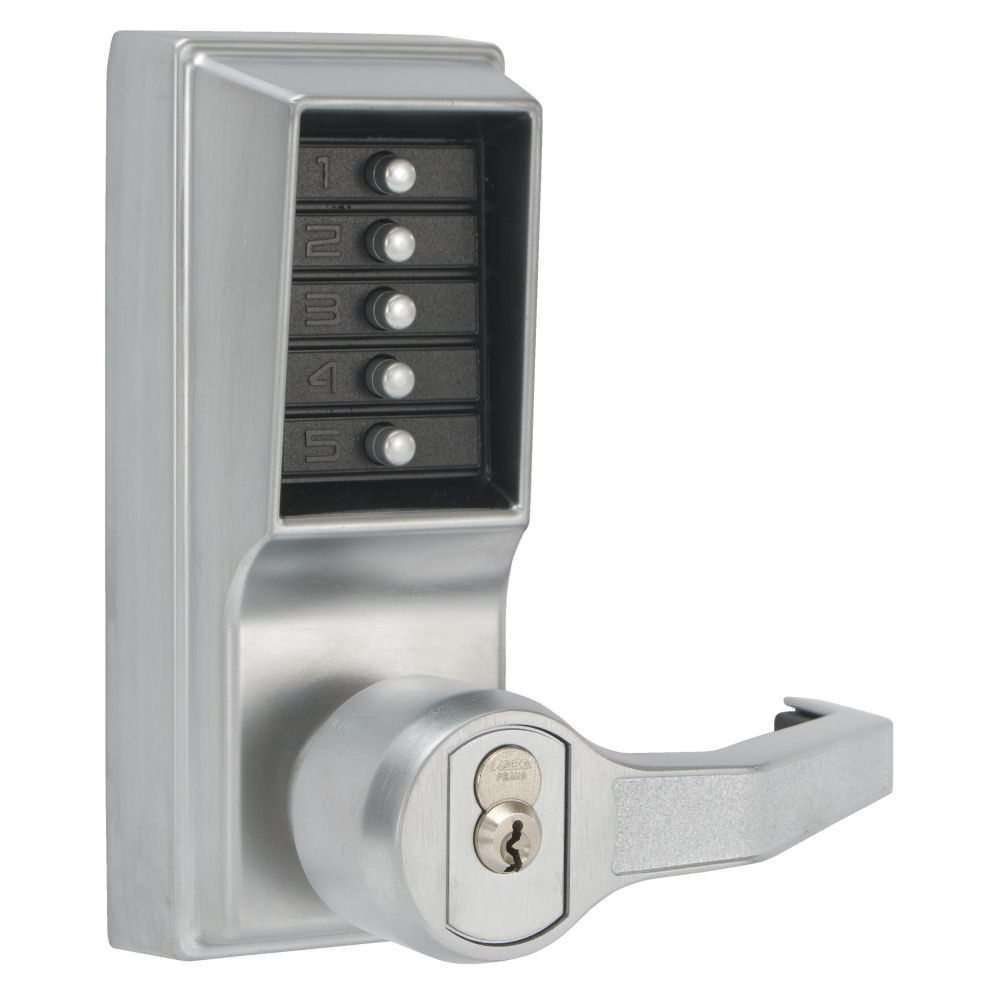

dormakaba Simplex L1041B
Pushbutton Lock with Passage w/Best IC Core
SKU: GKIT-LL1041B26D41
$641.31
Manufacturer List Price (MSRP): $973.00
New, genuine dormakaba Simplex product
dormakaba Simplex L1041B - Left Hand / Satin Chrome
- +

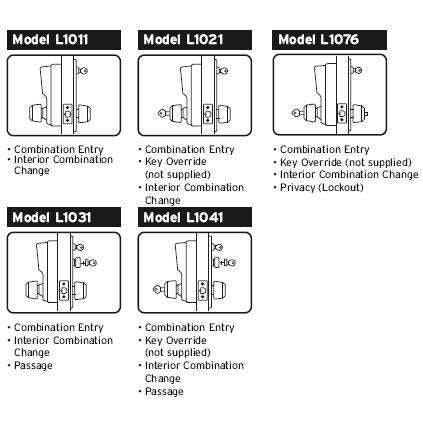

Simplex L1041B - Combination Entry with Key Override & Passage (Best compatible IC core included)
Tough-as-nails combination lock from the leader in top of the line security solutions, dormakaba. dormakaba has been making high quality security products for over 100 years. The Simplex L1000 Series is a 3-hour UL/ULC fire rated stand-alone security lock that is highly weather resistant and certified for durability, as it complies with D.O.D (Dept. of Defense) 5220.22M. Entry is gained via a 1 to 5 digit code that is sequential. Vandal resistant, the Simplex locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.
Basic
| Manufacturer | dormakaba USA Inc. |
|---|---|
| Lock Features | Passage Mode |
| Solution | Mechanical |
| Warranty | 3 Year Manufacturer |
| Handle Type | Lever Handle Door Locks |
| Access Type | Key, Keypad - Digits |
| Locking Device | Cylindrical Latch |
| Brand | dormakaba Simplex |
Door requirements
| Door Prep | Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s) |
|---|---|
| Door Opening | Standard |
| Door Thickness Minimum | 1 3/8 in. |
| Door Thickness Maximum | 2 1/4 in. |
| Backset | 2 3/4 in. |
Security
| Code Length | 1 to 5 Digits |
|---|---|
| Code Capacity | 1 |
| Fire Rating | 3-hour UL/ULC fire rating for A labeled doors |
Dimensions
| Exterior Dimensions | 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in. |
|---|---|
| Inside Dimensions | ["9 (H) x 3 1/4 (W) in."] |
| Door Stile Width | Minimum 4 in. |
| Exterior Dimensions | 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in. |
| Weight | 8.25 lbs |
