    Pushbutton Lock with Passage - Sargent IC Core

    SKU: LL1041R-26D-SC

    Kaba Simplex

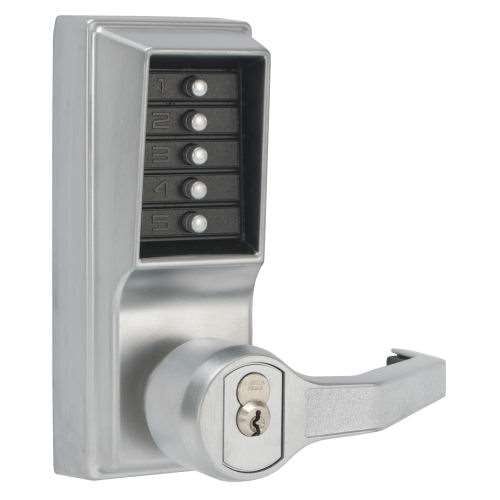

    Security made simple. The Kaba Simplex L1041 is a heavy-duty pushbutton lever lock built to withstand high traffic and tough environments. No electronics, wires, or keys to worry about. Features auto-locking to ensure your door or gate is always locked behind you when it closes and passage mode option for easy code free access. Sargent removable key core included.

    Door Handing
    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $114.21

    • ADA compliant lock
    • 100% Mechanical HEAVY DUTY push button lock
    • Thousands of possible codes combinations Auto-locking with passage feature (allows door to latch shut, but stay unlocked)
    • HEAVY DUTY Latch bolt with deadlocking plunger
    • Covers existing standard ASA 161 door hole
    • Fits left and right swinging doors
    • All hardware and instructions included with order
    • Low maintenance, no batteries or wires
    • Fits nearly all hinged doors
    • Backset:  2 3/4″ included (2 3/8″ available at checkout)  How do I measure?
    • Key override; furnished with a combinated (keyed up) Sargent brand 6-pin commercial grade IC key core using the LA keyway.  Includes one IC core change key, and two operating keys
    • 3-year manufacturer warranty



    GoKeyless™ is a factory trained and authorized Kaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Simplex L1041R - Combination Entry with Key Override & Passage (Sargent IC core included) Tough-as-nails combination lock from the leader in top of the line security solutions, Kaba Ilco.  Kaba has been making high quality security products for over 100 years.  The Simplex L1000 Series is a 3-hour UL/ULC fire rated stand-alone security lock that is highly weather resistant and certified for durability, as it complies with D.O.D (Dept. of Defense) 5220.22M.  Entry is gained via a 1 to 5 digit code that is sequential.  Vandal resitant, the Simplex locks have found widespread acceptance in high-traffic commercial, institutional, and government buildings.

    GoKeyless™ is a factory trained and authorized dormakaba Simplex® dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Basic

    Manufacturer Kaba Access
    Lock Features Old Passage Mode
    Solution Mechanical
    Warranty 3 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand Kaba Simplex

    Door requirements

    Door Prep Standard 2 1/8 in. Cross-Bore, Edge Bore: 1 in., Through-Bolt Hole(s)

    Security

    Code Length 1 to 5 Digits
    Code Capacity 1
    Fire Rating 3-hour UL/ULC fire rating for A labeled doors

    Dimensions

    Exterior Dimensions 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in.
    Inside Dimensions ["9 (H) x 3 1/4 (W) in."]
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 2 1/4 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 5 in.
    Exterior Dimensions 7 3/8 (H) x 3 1/8 (W) x 3 3/16 (D) in.
    Weight 8.25 lbs
