Smart Access Technologies FSA-01-00

Name: Smart Access Technologies FSA-01-00
SKU: FSA-01-00
Price: 56.52 USD
Availability: InStock

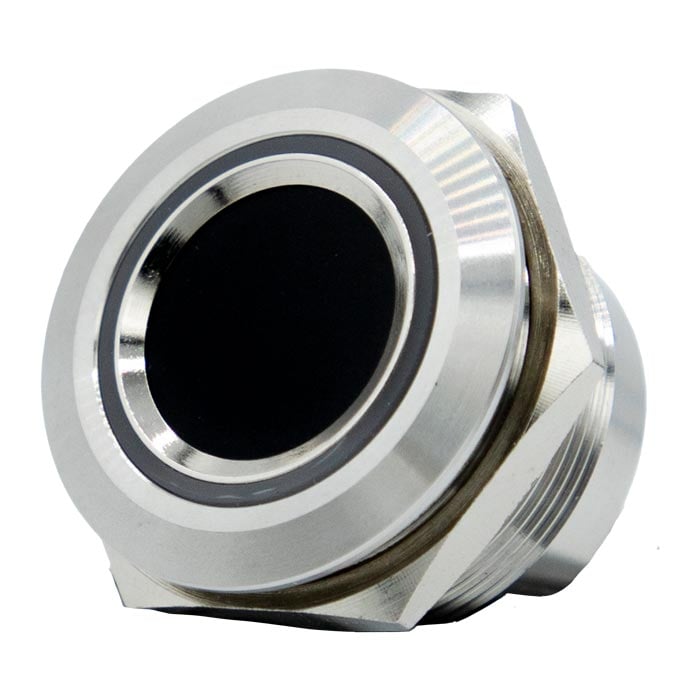

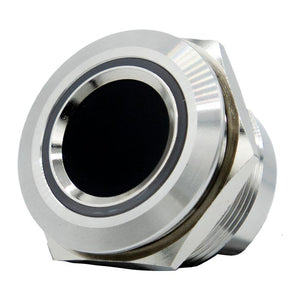

Biometric Fingerprint Sensor

SKU: FSA-01-00

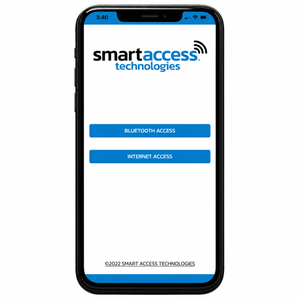

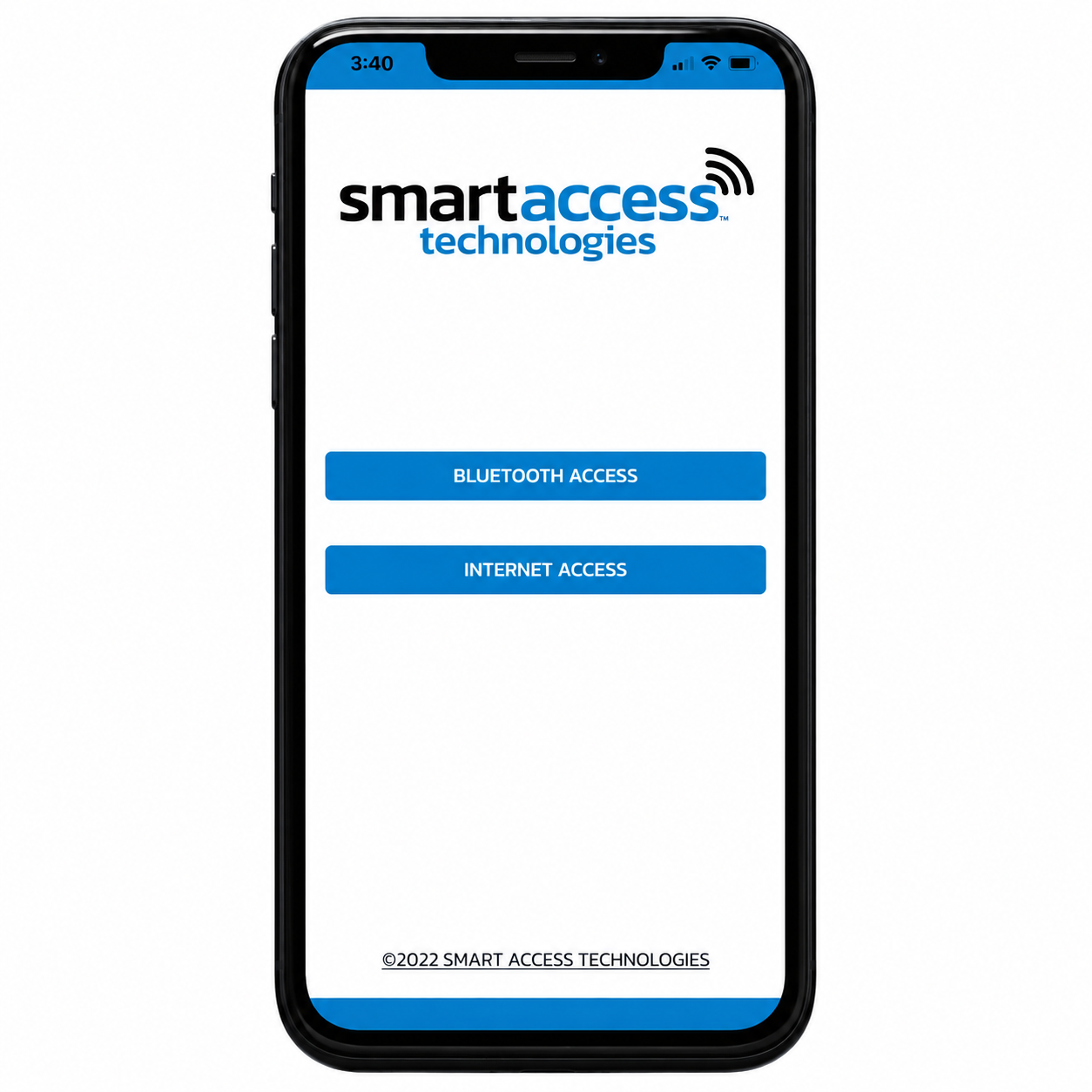

Now THIS is smart access! The Smart Access Technologies FSA-01-00 Biometric Fingerprint Sensor provides touch-free security to your cabinets, lockers, and drawers. Scanning takes no time and the sensor stores up to 200 users. Customize operation using the Smart Access app.

$56.52

Features
Description
Specifications
How it Works - Smart Access

Compatible with Smart Access Technologies lock systems
High-quality, high security capacitive fingerprint module
Capable of recording up to 200 fingerprints
Scans fingerprints quickly and accurately
Configurable through admin portal

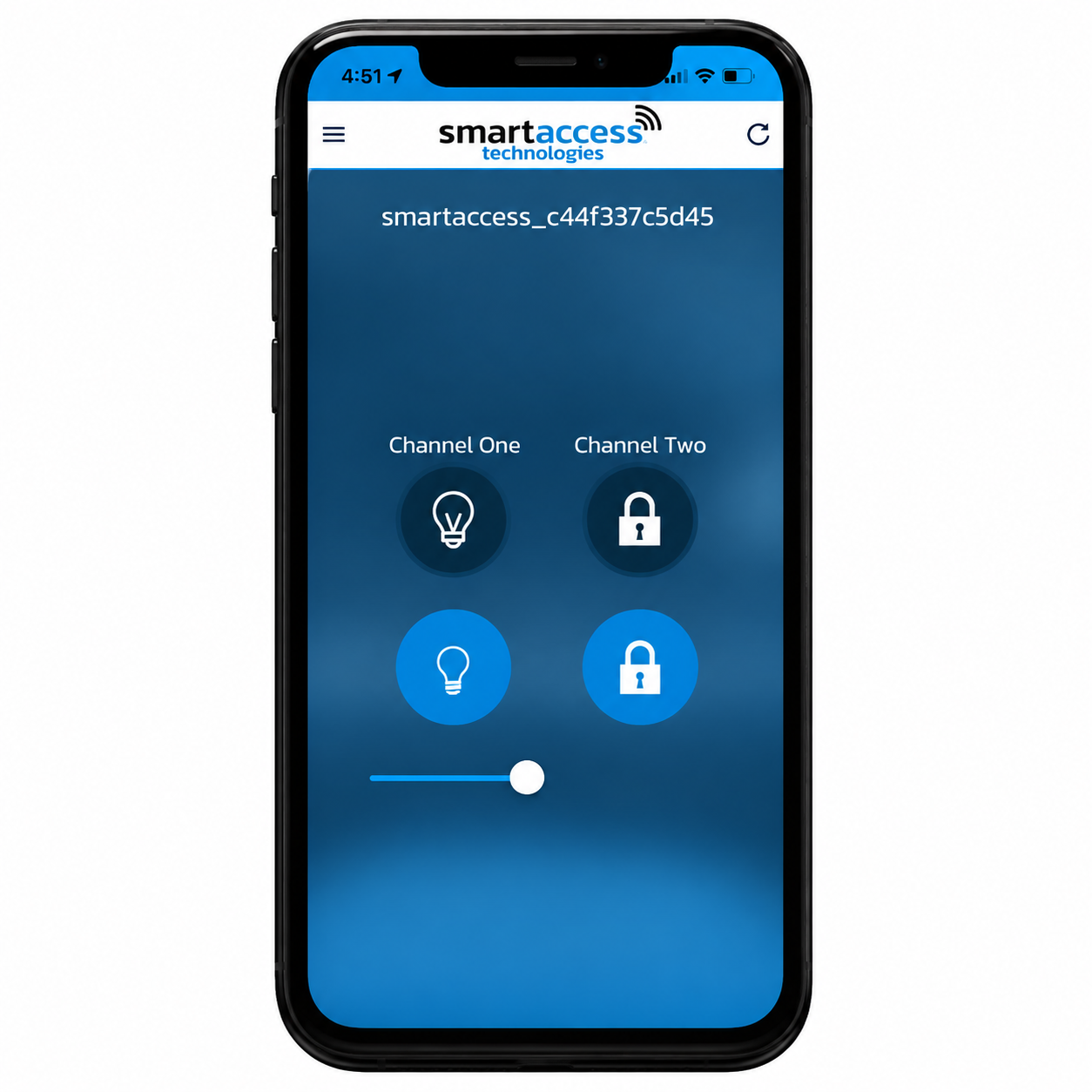

Can be configured to control both channels simultaneously or independently with one fingerprint
Abrasive resistance of 1 million uses and can be wiped with isopropyl alcohol
Stainless Steel housing
Face diameter is 1.1 in
Threaded portion diameter is 0.98 in
Threaded portion length is 0.65 in
Standard wire length is 3 ft., 8 ft extension cable sold separately
Requires a drill bit of 25mm for installation

WHAT’S INCLUDED

3 or 6 -Port Hub (depending on selected option)
One Electronic Bolt Lock and Latch or Pop up Rotary Lock (additional locks can be purchased separate)
DC to USB power backup adapter
Mounting hardware
DC Power Adapter

REQUIREMENTS

Designed for Wood, Wood Products, Composite, Plastic, Glass or metal*** Cabinets and Furnishings
The distance required behind drawer for Lock 1.5 in
Drill Bit 25MM for Finger Touch Sensor Installation and depending on wood thickness a 35mm flat bottom drill bit
to drill from the inside of the cabinet to screw the fingertouch sensor in place
Access to power adapter DC Jack is required
In the event of Electrical Power failure, the provided emergency USB power cable can be used to operate the system during an electrical power outage

**For Metal cabinets hub must be installed externally or custom order a hub with an antenna**

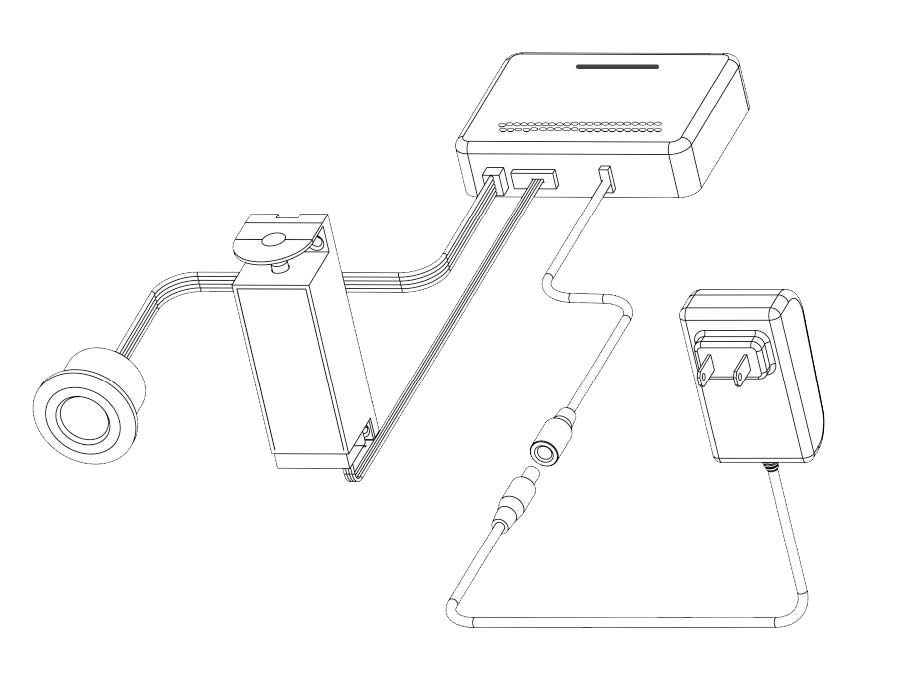

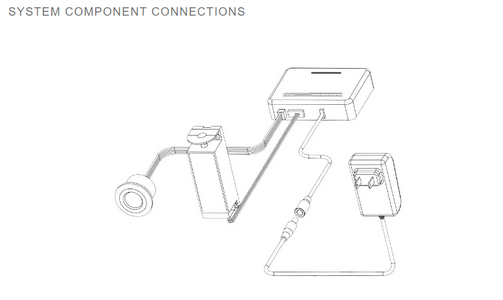

SYSTEM COMPONENT CONNECTIONS

Note: SmartAccess Electronic Lock shown

*Experience in carpentry or professional installation service is recommended

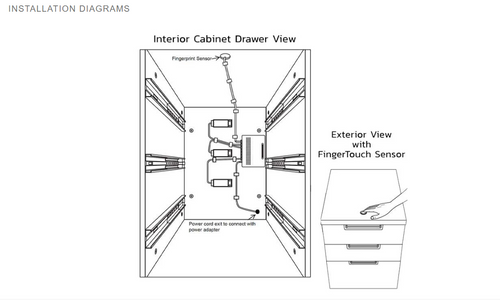

INSTALLATION DIAGRAMS

Exterior and Interior Cabinet Diagram

Distance between back wall and back of drawer should be 1.5 in. to fit lock

Sliding vs Pull Cabinet Door

Basic

Manufacturer	Smart Access Technologies
Material	Stainless Steel
Access Type	Fingerprint
Brand	Smart Access Technologies

Door requirements

Security

Users	200

Dimensions

Certifications	RoHS
Dimensions	Sensor: Diameter .98 in.

WHAT’S INCLUDED
3 or 6 -Port Hub (depending on selected option)
One Electronic Bolt Lock and Latch or Pop up Rotary Lock (additional locks can be purchased separate)
DC to USB power backup adapter
Mounting hardware
DC Power Adapter
REQUIREMENTS
Designed for Wood, Wood Products, Composite, Plastic, Glass or metal*** Cabinets and Furnishings
The distance required behind drawer for Lock 1.5 in
Drill Bit 25MM for Finger Touch Sensor Installation and depending on wood thickness a 35mm flat bottom drill bit
to drill from the inside of the cabinet to screw the fingertouch sensor in place
Access to power adapter DC Jack is required
In the event of Electrical Power failure, the provided emergency USB power cable can be used to operate the system during an electrical power outage
**For Metal cabinets hub must be installed externally or custom order a hub with an antenna**
