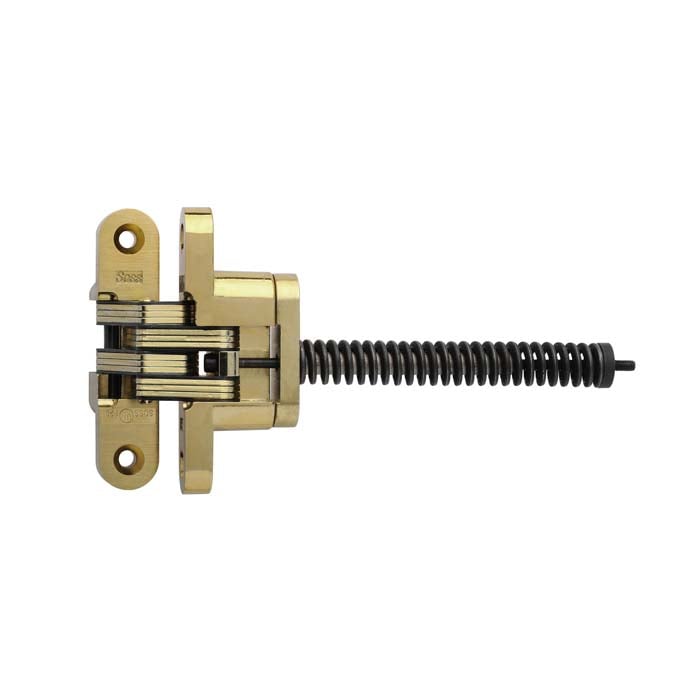

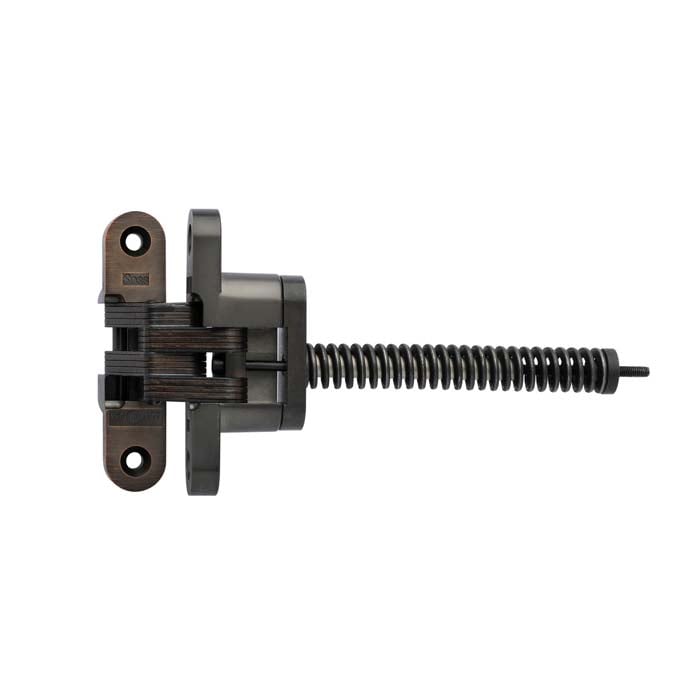

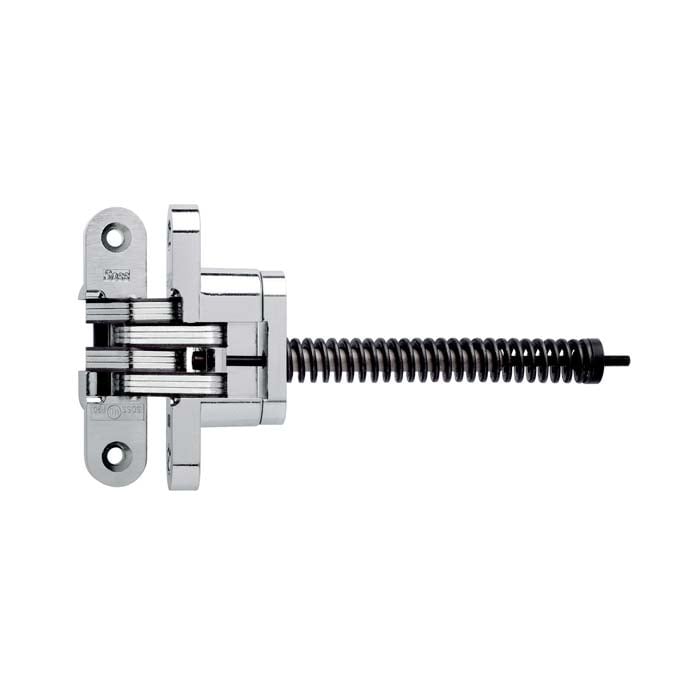

    180 Degree Swing Invisible Hinge

    SKU: 216ICUS10BL

    SOSS



    Meet the hidden hinge. The SOSS 216IC 180 Degree Swing Invisible Hinge is a versatile hinge that is suited to commercial or residential applications. For applications that are 1 3/8 in. thick. With its nearly invisible footprint, people will wonder what's holding the door up!

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $39.59

    • For Applications that are 1 3/8 in. thick
    • 180 Degree Swing
    • 1 3/8 in. Hinge Thickness
    • 1 15/16 x 3/8 x 6 5/16 in. Hinge Pocket Depth
    • Includes Wood/Machine Screws
    • ANSI Grade 1, UL Listed
    • 1 Year Warranty

    Please Note: Use at least one fire-rated hinge for every 20 in. of door height or portion thereof, or one hinge for every 60 lbs. or fraction thereof, whichever calculation demands more hinges

    SOSS® Invisible Hinge model #216IC is ideally suited for most types of doors that are 1-3/8″ thick. The SOSS® Invisible Closer gives you a  closer that is totally invisible from either side when the door is closed. The closure rate is completely adjustable. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

    The Underwriters Laboratories labeled the model #216IC SOSS® Invisible closer hinge can be used on hollow metal, sheet metal, tin clad, steel composite or wood core swinging type fire doors and frames with a 20 minute rating.

    Basic

    Manufacturer SOSS
    ANSI Rating Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome, Oil Rubbed Bronze, Satin Brass
    Warranty 1 Year Manufacturer
    Brand SOSS

    Door requirements

    Door Handing Non-Handed

    Security

    Fire Rating 20 Minute UL Rated

    Dimensions

    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 1 3/8 in.
