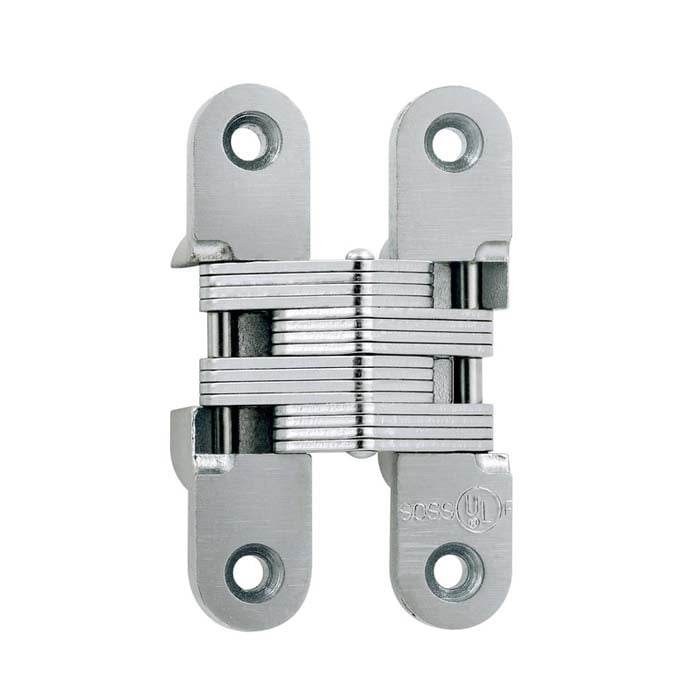

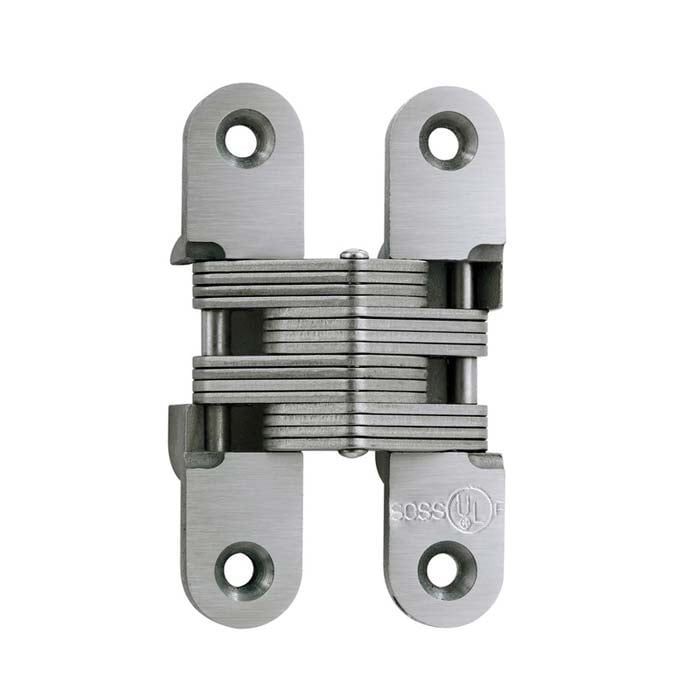

    180 Degree Swing Invisible Hinge

    SKU: 416SSUS32D

    SOSS



    Meet the hidden hinge. The SOSS 416 180 Degree Swing Invisible Hinge is a versatile hinge that is suited to commercial or residential applications.  With its nearly invisible footprint, people will wonder what's holding the door up! Fire rated for 3 hours.

    Finish

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $48.22

    • 180 Degree Swing
    • 1 3/8 in. Hinge Thickness
    • 1 x 4 5/8 in. Hinge Leaf Dimension
    • Includes Wood/Machine Screws
    • ANSI Grade 1, UL Listed
    • 1 Year Warranty

    Please Note: Use at least one fire-rated hinge for every 20 in. of door height or portion thereof, or one hinge for every 60 lbs. or fraction thereof, whichever calculation demands more hinges

    SOSS® Invisible Hinge model #416 is for use in wood or metal applications that are 1-3/8″ thick. The model #416 is made of alloy steel. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

    Basic

    Manufacturer SOSS
    ANSI Rating Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome, Stainless Steel
    Warranty 1 Year Manufacturer
    Brand SOSS

    Door requirements

    Door Handing Non-Handed

    Security

    Fire Rating 3 Hour UL Rated

    Dimensions

    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 1 3/8 in.
    Dimensions 1 (H) x 4 5/8 (W) in.
