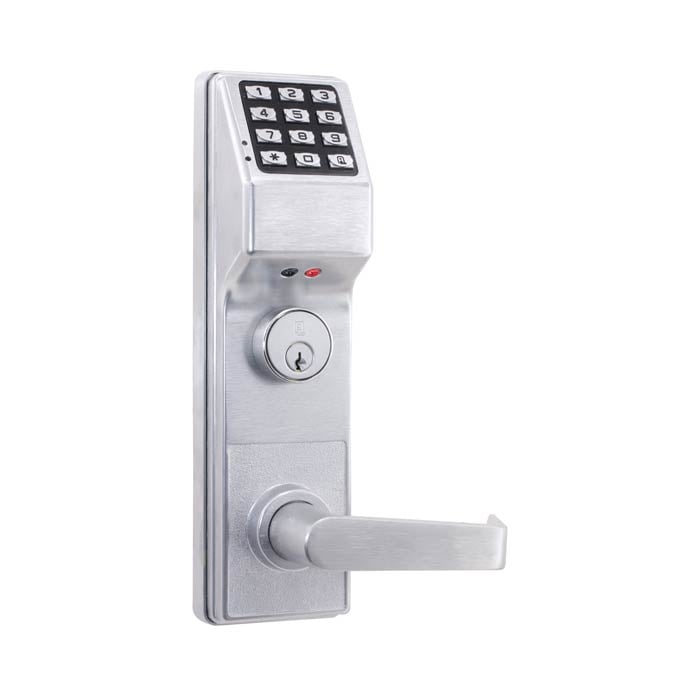

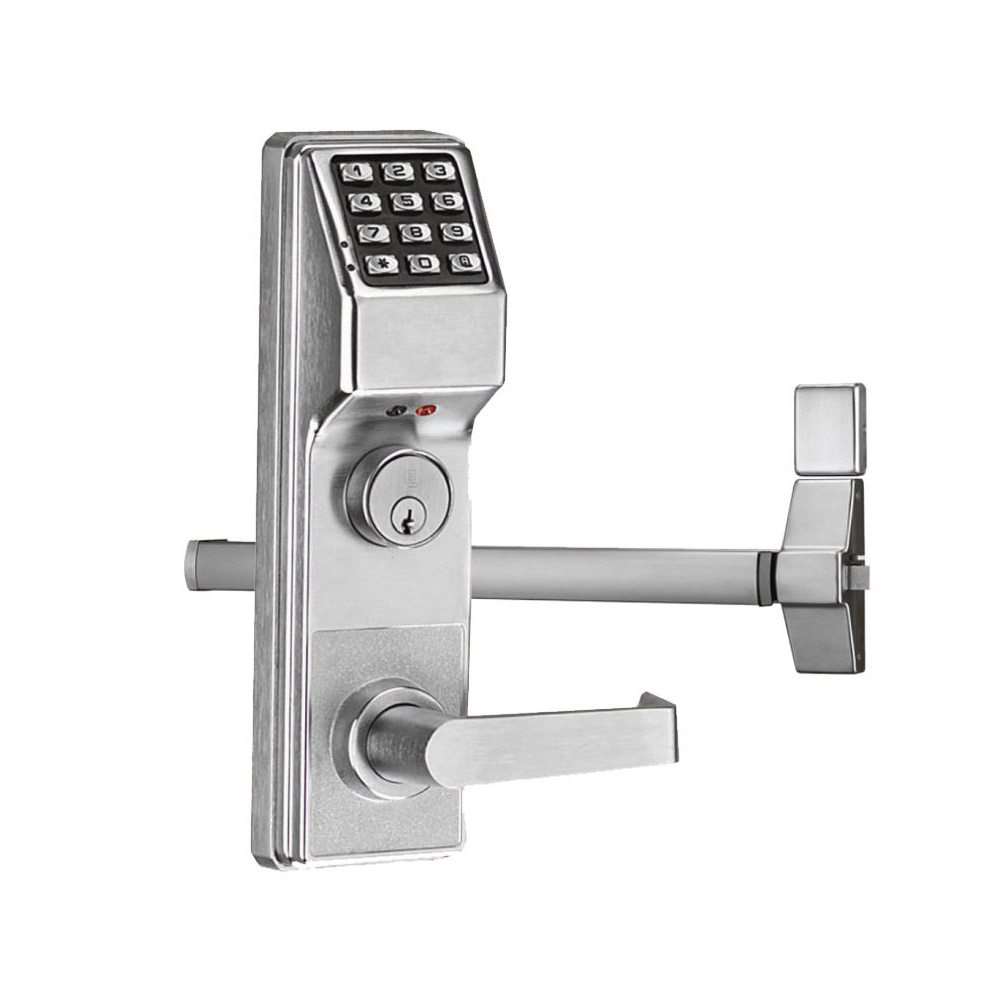

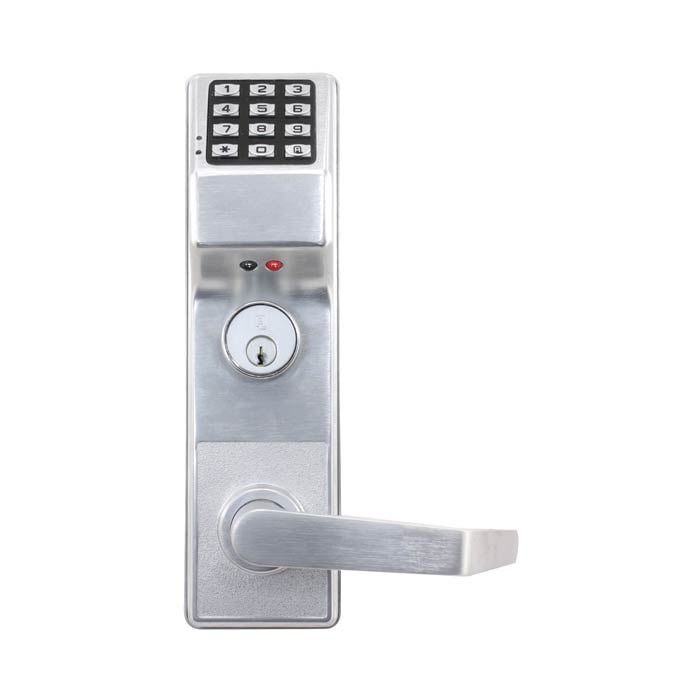

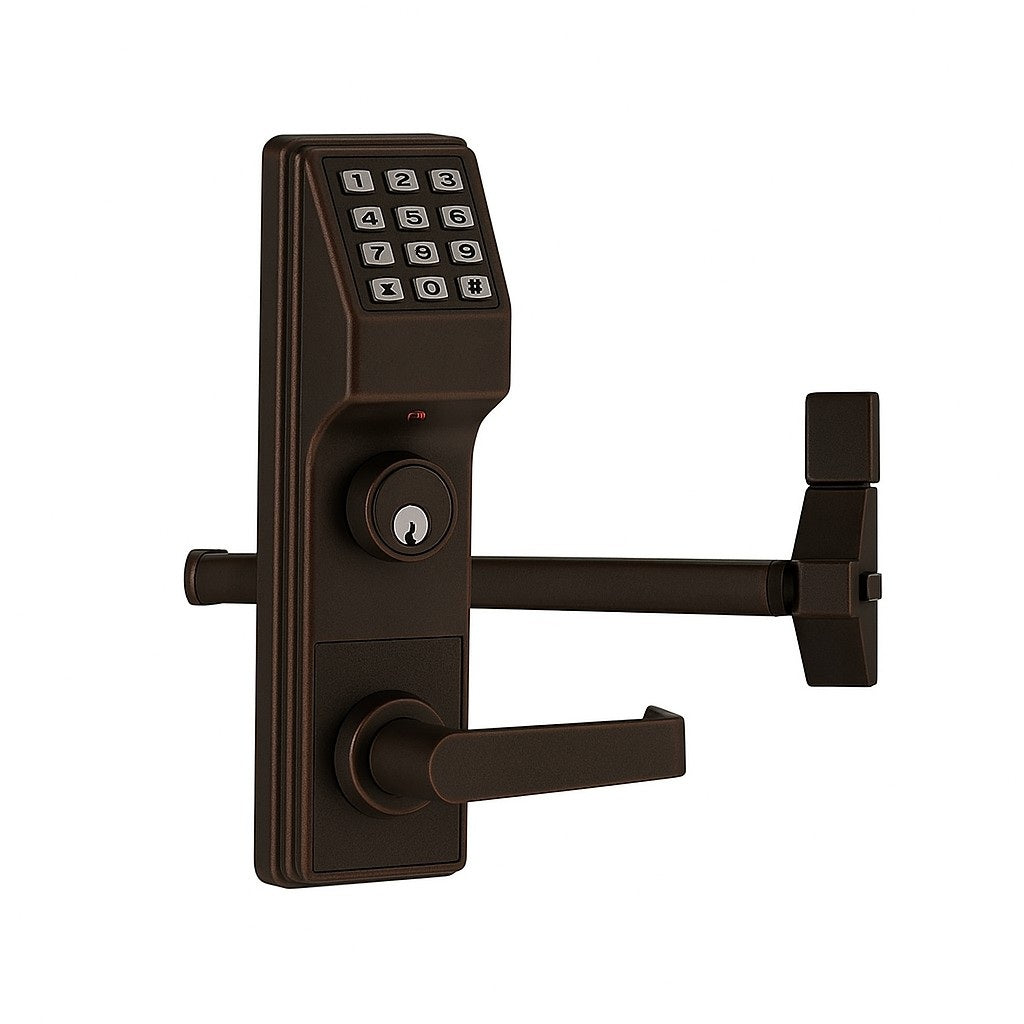

    Keypad Access for Panic Bars

    SKU: ETDLS1G/26DM99

    Alarm Lock Trilogy

    Panic bar/exit device sold separately.



    The Trilogy ETDL is a keyless solution for your exit doors. Manage this lock using the keypad or by using your PC with the software.  It features timed access, audit trail, and the ability to upload user schedules from your PC. Solve the problem of left or propped open doors forever. Suitable for securing panic exits at hospitals, schools, restaurants and more!

    Finish
    Pairing to

    Quantity left : -1

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $171.10

    Call For Price

    GK Care Technical SupportHourly rate for GoKeyless clients only (reg. rate is $115/hour) Read More

    Custom Setup & ProgrammingLet us do the work for you. We get you up and running. Read More



    • Heavy Duty, BHMA Grade 1 lock
    • Exit Device Compatibility:  Von Duprin 99, Cal Royal 9800, Corbin ED5000, Yale 7100, Dorma 9300, Sargent 8800, Precision 1100, Precision 2100 (requires PB21 plate), and American Eagle 6200 bars.  When ordering please select your existing panic bar model so that we may ship you the correct, compatible ETDL lock.  Otherwise, if your current bar is not listed, we sell a number of brand-name push bars that you can add to your order at checkout.
    • Rugged clutch mechanism insures long life & durability
    • 500 Timed Lock/Unlock Schedules; including 4 “quick schedules” for programming the 4 most common time schedules in one step
    • First manager in scheduling – solves the snow day issue for schools (“First Person In” stops unauthorized persons from gaining access to doors set on timed auto-unlock)
    • 2000 User Codes: Master, Manager, Supervisor and Basic Users. Also one-time entry code
    • Weatherproof performance
    • Timed entry allowance from 5-15 seconds
    • Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
    • Audit Trail with Time/Date Stamp for a printable record of all electronic activity
    • Real time clock allows logging of events to within 1 second of accuracy
    • 4 Time-Out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
    • Door Thickness:  1 3/4″ – 1-7/8″ (Extended Spindles available for thicker doors)
    • Handing is field reversible
    • Easy to install.  Retrofits to panic bars of most major manufacturers
    • Battery housing mounts above panic bar on interior side of door
    • Key override – uses a standard rim cylinder (provided by manufacturer) to operate key override function.  All rim cylinders are interchangeable.  When you want to use a name brand rim cylinder (your own, or you can buy one from us) in the lock, then you will need to purchase a matching cylinder adapter kit for that brand
    • Battery operation:  5 AA’s; appx. 60,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup (9V’s sold separately)
    • Keypad:  All metal, 12 button.  All functions programmable through keypad/software.  Proximity antenna housing molded of ultra high strength, impact resistant Lexan
    • Warranty:  2-year manufacturer

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Maximize security, and solve the problem of left open and propped open doors with the safe, strong, and easy to use Trilogy ETDL access control system.  It features timed lock/unlock, audit trail, and the ability to use the hand-held DTM data transfer module to upload your user schedules from your desktop computer.  A laptop may be used as well in lieu of the DTM module.  The ETDL is a proven key management solution for your exit doors.  You manage this lock by fingertip at the lock’s keypad, or by using your laptop or desktop PC with the software.  (computer connecting cables required and sold separately at checkout – software CD included with purchase of cables, or can be downloaded from Alarm Lock website)  The software features a simple to follow user interface giving you total control.  You can even review who entered and when.  Need to establish access privileges?  Done.  Simply use the built-in multi-level programming functions to create your group or individual user codes, master and management codes, passage codes, and emergency or service codes.  This vandal-resistant, all metal push button lock is perfect for securing panic exits at hospitals, schools, restaurants, movie theaters, airports, retail stores, offices, pharmacies, and more!

    Basic

    Manufacturer Alarm Lock
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Lock Features Audit Trail, Passage Mode, Scheduling, Timed Codes
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Panic/Exit
    Exit - Rim
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Non-Handed
    Battery Life 60,000 Cycles

    Security

    Code Length 3 to 6 Digits
    Code Capacity 2,000

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 1 7/8 in.
    Dimensions 11.25 (H) x 3 (W) x 3.5 (D) in.
    Door Stile Width Minimum 5 in.
    Weight 7.5 lbs

    TECH SUPPORT FOR ALARM LOCK TRILOGY PRODUCTS*
    *Basic email support only. Additional support time available for a fee.

    You are not comparing apples to apples when shopping for Trilogy locks online.

    GoKeyless is a full service company and backs up its sales support with product and technical support.

    What good is the lock to you when you have to spend countless hours trying to find the answer to something when you could have just contacted the experts.

    In addition to answering technical questions for you — troubleshooting only, does not include training, or programming — our agents are also available for paid training on importing your users, communicating with the lock, establishing your mission critical access schedules, navigating the software, and utilizing all of the features and functions of your new access control system.

    Our virtual support fees start at $70/hour or can be purchased as an annual tiered service.

    Technical Support Hours: M-F 9am-5pm EST
