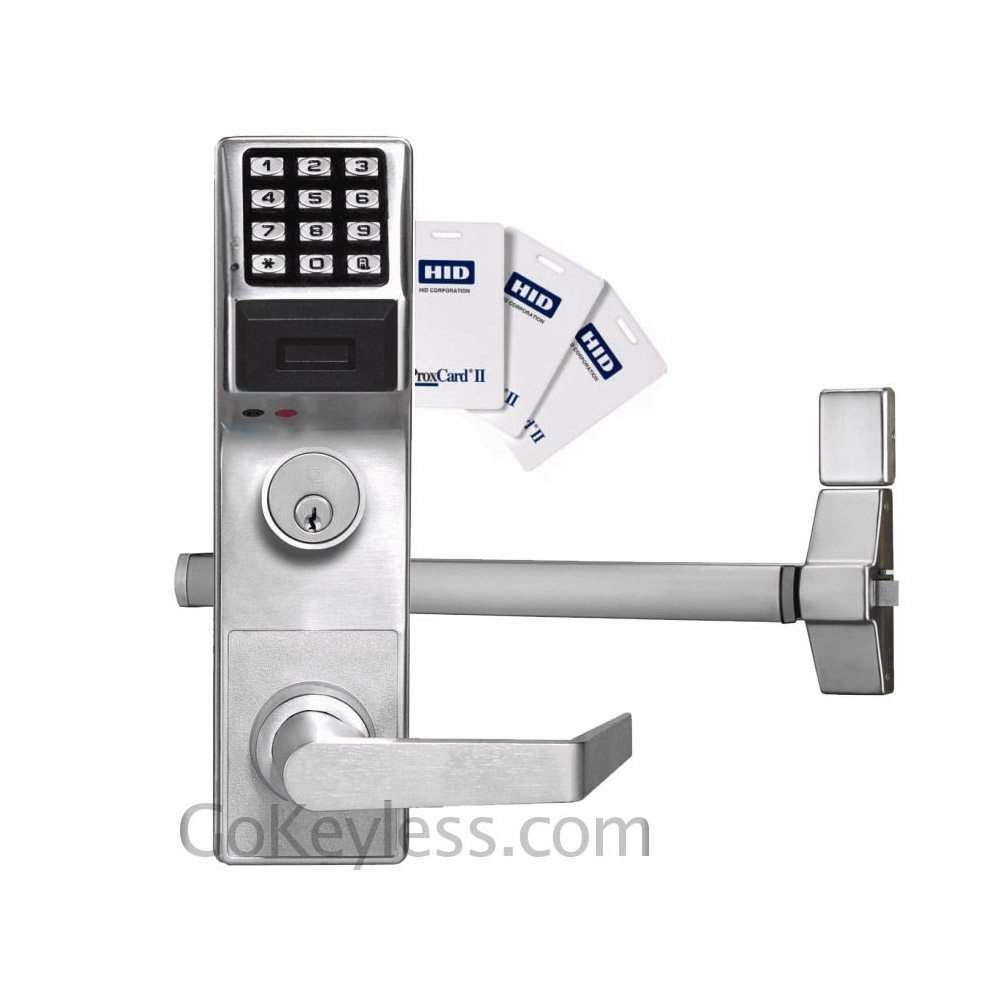

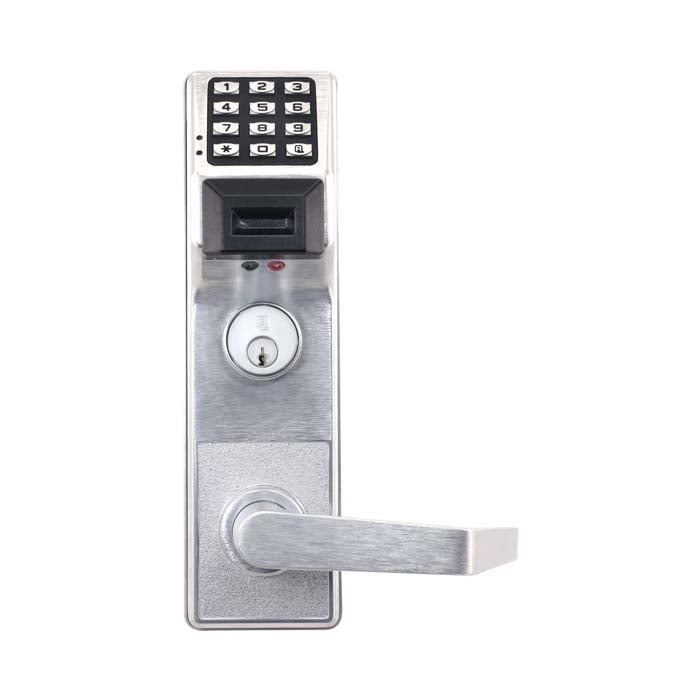

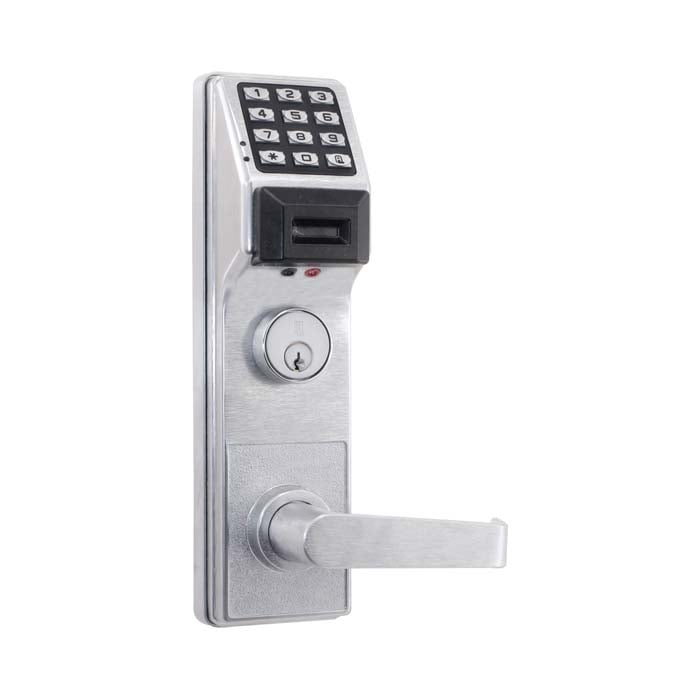

    Keypad Prox Card Exit Trim Lock

    SKU: ETPDLS1G/26DM99

    Alarm Lock Trilogy



    The Trilogy ETPDL is a keyless solution for your exit doors with two-factor HID card and PIN code security. Manage this heavy-duty lock using the keypad or by using your PC with the software.  It features timed access, audit trail, and the ability to upload user schedules from your PC. Solve the problem of left or propped open doors forever. Suitable for securing panic exits at hospitals, schools, restaurants and more!

    Pairing to
    Finish

    Quantity left : -1

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $216.70

    Call For Price

    GK Care Technical Support:Hourly rate for GoKeyless clients only (reg. rate is $115/hour) Read More

    Custom Setup & Programming:Let us do the work for you. We get you up and running. Read More

    • Heavy Duty, BHMA Grade 1 lock
    • Rugged clutch mechanism insures long life & durability
    • Exit Device Compatibility:  Von Duprin 99, Cal Royal 9800, Corbin ED5000, Yale 7100, Dorma 9300, Arrow 3800, Sargent 8800, Precision 1100, Precision 2100 (requires PB21 plate), and American Eagle 6200 bars.  When ordering please select your existing panic bar model so that we may ship you the correct, compatible ETPDL lock.  Otherwise, if your current bar is not listed, we sell a number of brand-name push bars that you can add to your order at checkout
    • Reads any HID prox card and fob formats of 125khz frequency, 26-48bit – IDEAL for expanding your existing card system to even more facility doors
    • Program at lock, or using Windows PC based software
    • 500 Timed Lock/Unlock Schedules; including 4 “quick schedules”
    • First manager in scheduling
    • 2000 User Codes/Cards: Master, Manager, Supervisor and Basic Users. Also one-time entry code
    • Weatherproof performance
    • Timed entry allowance from 5-15 seconds
    • Greater security with “Temporary Keypad Lockout” after 3 unsuccessful code-entry attempts
    • Audit Trail with time/date tamp for a printable record of all electronic activity
    • Real time clock allows logging of events to within 1 second of accuracy
    • 4 Time-Out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
    • Field reversible handing
    • Door Thickness:  1 3/4″ – 1-7/8″ (Extended Spindles available for thicker doors)
    • Easy install. Retrofits to panic bars of most major manufacturers
    • Battery Operation:  5 AA’s; appx. 60,000 cycles; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup (9V sold separately)
    • Battery housing mounts above panic bar on interior side of door
    • Key override – uses a standard rim cylinder (provided by manufacturer) to operate key override function.  All rim cylinders are interchangeable.  When you want to use a name brand rim cylinder (your own, or you can buy one from us at checkout) in the lock, then you will need to purchase a matching cylinder adapter kit for that brand
    • Keypad: All metal, 12 button.  All functions programmable through keypad/software.  Proximity antenna housing molded of ultra high strength, impact resistant Lexan.
    • Warranty: 2 year manufacturer

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    Intelligent.  Innovative.  Intuitive.  Cross one item off your business wish list this year and give you and your staff the added security and convenience other companies are benefiting from nationwide.  This exit device card/fob lock includes timed lock/unlock, audit trail, and the ability to use the hand-held DTM data transfer module to upload your user schedules when using your desktop computer. A laptop may also be used in lieu of the DTM module. These combine to eliminate the costs and time associated with issuing and tracking keys.

    Basic

    Manufacturer Alarm Lock
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Event Scheduling 500, Automated Unlock/Lock
    Keyway Schlage SC1
    Lock Features Audit Trail, Passage Mode, Scheduling, Timed Codes
    Radio Frequency 125 kHz
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Reader Type Prox Card/Fob
    RFID
    Access Type Key
    Keypad - Digits
    Proximity Card/Fob
    Locking Device Panic/Exit
    Exit - Rim
    Brand Alarm Lock Trilogy

    Door requirements

    Door Handing Non-Handed
    Battery Life 60,000 Cycles
    Door Prep Through-Bolt Hole(s)

    Security

    Code Length 3 to 6 Digits
    Code Capacity 2,000
    Users 2,000

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 1 7/8 in.
    Dimensions 11.25 (H) x 3 (W) x 3.5 (D) in.
    Door Stile Width Minimum 5 in.
