  • Trilogy Networx AL-IME2-PIE

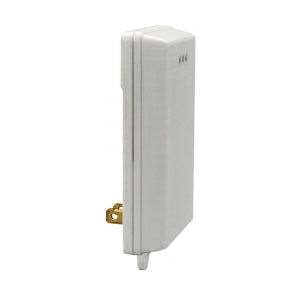

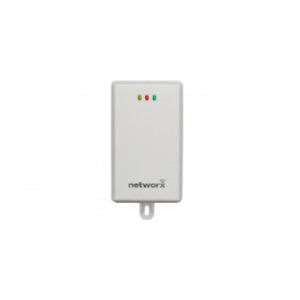

    Plug-In Wireless Expander

    SKU: AL-IME2-PIE

    Trilogy Networx



    The Trilogy Networx AL-IME2-PIE extends the coverage area of a Generation 2 Series AL-IME2 Gateway to Trilogy Networx Locks within a PC network. Typically introduced into the network when a Gateway does not provide sufficient signal strength to a particular area. Can be used in an existing system that includes older “non-version 2” Gateways.

    Quantity left : 2

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $33.58

    • Extends the Gen.2 Gateway’s coverage area by approximately 100 feet
    • At least one Version 2 Gateway must powered and online before an AL-IME2-PIE Expander will function
    • Simplified ‘Plug and Play’ setup; Networx system automatically identifies all newly powered Expanders and quickly self-determines the best wireless signal pathways
    • Up to 7 Expanders can be added to support one Generation 2 Series Gateway
    • Each Gen. 2 Gateway and a maximum of seven (7) Expanders can be addressed as one group – IT Friendly!
    • Total of 99 addressable groups supported (addressable by two rotary switches)
    • Both Generation 2 Gateways and matching AL-IME2-PIE and AL-IME2-EXP Expanders have a new modern styling, and three LED indicators, blending into any decor
    • Gateway/Expander to Locks: Clear field range 500′
    • Gateway/Expander to Expander: Clear field range 500′

    GoKeyless™ is a factory trained and authorized Alarm Lock Trilogy Networx dealer. Sales, service, support, valid warranties. It's why thousands of clients around the world choose GoKeyless™ for their security and access control needs each year.

    The Trilogy® Networx Wireless Plug-In Expander extends the coverage area of a Generation 2 Series AL-IME2 Gateway to Trilogy Networx Locks within a PC network, allowing greater distances for the placement of up to a maximum rated capacity of 63 networx locks per Version 2 Gateway. The AL-IME2-PIE is a “plug-in” version of the AL-IME2-EXP Expander; both models are functionally identical. Typically introduced into the network when a Gateway does not provide sufficient signal strength to a particular area, it is designed to extend coverage and thus facilitate communications with a wireless lock or a group of wireless locks. The AL-IME2-PIE Expander must be used with a Generation 2 AL-IME2 Series Gateway, but can be intermixed in an existing system that includes older “non-version 2” Gateways.

    Basic

    Manufacturer Alarm Lock
    Ethernet 100Base-TX (Using RJ-45 Jack), 10Base-T
    Input Voltage 120VAC @ 60Hz
    Power Occupies one 120VAC outlet
    Warranty 2 Year Manufacturer
    Brand Trilogy Networx

    Door requirements

    Security

    Wireless Protocol DHCP, TCP/IP, UDP/IP

    Dimensions

    Dimensions 4.3 (H) x 2.5 (W) x 0.875 (D) in. , 5 (H) in. with tab
    Storage Temperature Range -40° to 185°F (-40° to 85°C)
    Weight 0.35 lbs
