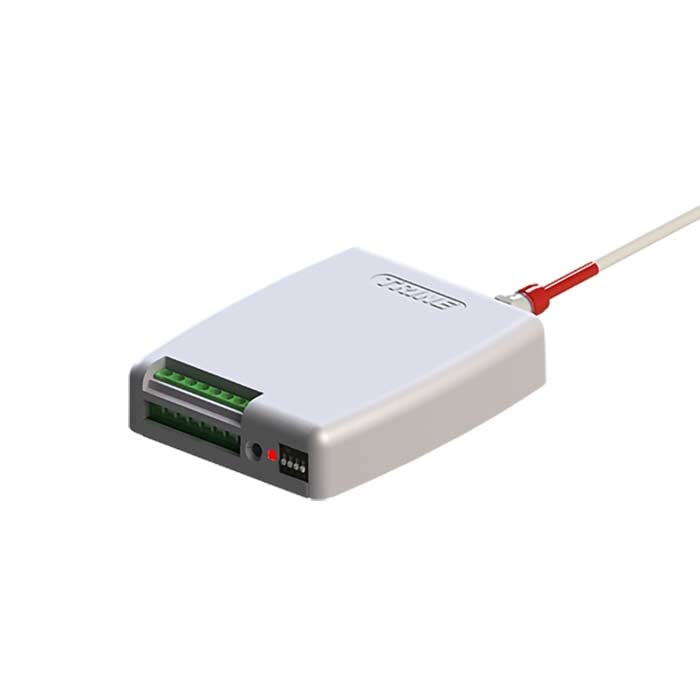

  • Trine 017TDC-4

    Wireless Controller

    SKU: 017TDC-4


    The new and much improved Trine 017TDC-4 Wireless Controller utilizes rolling code protocol and can receive up to 68 billion different codes. Prevent hackers from stealing codes with the program erase function. 2 channel relays that are independently programmable. Set a 4, 8, or 16 second delay to the electric strike or set an alternate action trigger.

    Quantity left : 2

    • Now utilizing rolling code
    • 500 foot range
    • 2 Channel Receiver and Transmitter
    • Independently Programmable A & B Channel
    • 4, 8, 16 Second Delay or Alternate Action Trigger
    • Will work with 12 through 30 V AC/DC
    • Dry Contact Relay rated up to 30V @ 5 Amp Max
    • Relays can be programmed for continuous “ON”and “OFF” alternate action
    • Single Pushbutton Program Erase (for security)
    • Superheterodyne low radiant receiver
    • Screw Terminal Connections
    • Up to 8 transmitters per one receiver
    • 68 billion codes
    • Not backwards compatible with any other 017TDC/018 Model

    Secure your building with a constantly changing code. The Trine 017TDC-4 wireless controller operates with rolling code technology and covers a 500-foot range. Equipped with two independently programmable channels and a 4, 8, or 16-second delay or alternate action trigger. Programmable relays can be set for continuous “ON” or “OFF” alternate action. Protect against misuse and code hijacking with the single pushbutton program erase function. Up to 68 billion different codes can be recognized by the receiver sent by up to 8 transmitters (sold separately). The 017TDC-4 is NOT backward compatible with any previous 017TDC/018 model.


    Manufacturer Trine
    Voltage 12V to 30V AC/DC
    Warranty 1 Year Manufacturer
    Brand Trine

    Door requirements


    Wireless Range 500 ft.
