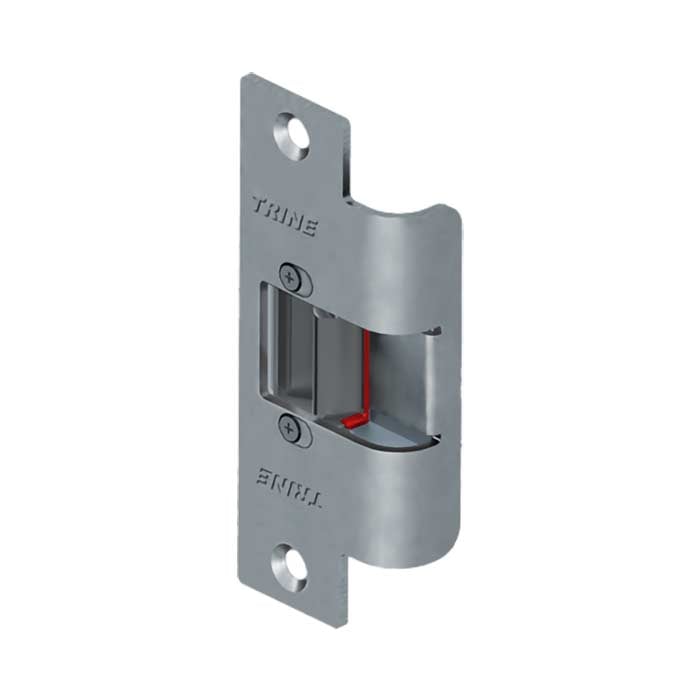

  • Trine 323478F-LC Kit

    World's Smallest Fire Rated Electric Strike

    SKU: 323478F-RS-32D

    Trine



    The world's smallest strike is now fire-rated! Trine 323478F Electric Strike Kit provides a fire-rated solution for the heavy duty 3000 series combined with the most popular ANSI faceplate. Replace your old door strike with this streamlined, Grade 1 electric strike.

    Lock Mode

    Quantity left : 0

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $64.11

    Call For Price
    • Smallest heavy duty fire-rated electric strike in the world
    • BHMA Grade 1
    • Fire-rated 4-7/8 in. cylindrical solution
    • Accepts up to 5/8” latch throw
    • 500,000+ life cycles
    • 1,500+ lbs. holding force
    • Dynamic Force 70 ft/lb

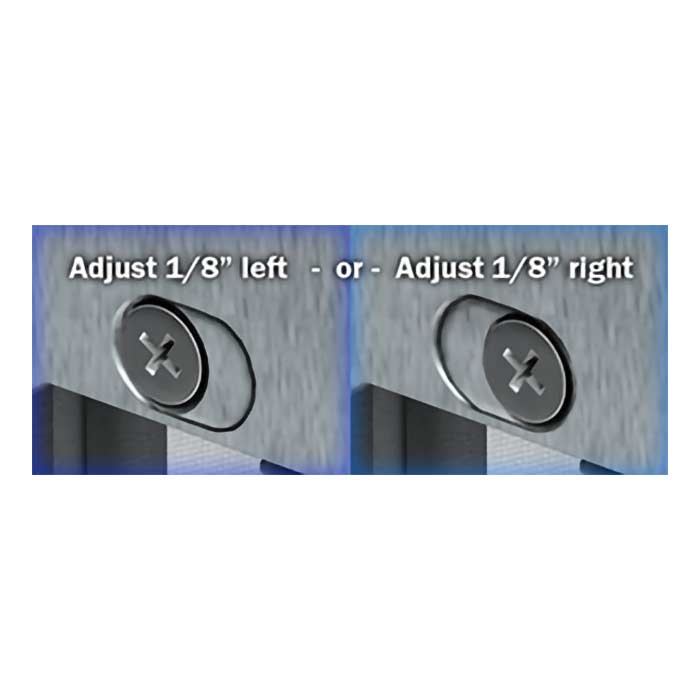

    • 1/8 in. horizontal adjustment on the 478 faceplates
    • All solid stainless construction
    • 12-24 AC and DC – surge and kickback protection
    • Includes LC100 and Trim skirt (CCFP)
    • Fail-secure – standard action (unlocks with power)
    • Fail-safe Option – “RS” (locks with power)
    • Patent Pending
    • Not for outdoor use

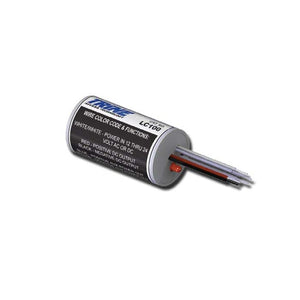

    LC100

    • Utilizes an external line conditioner (LC100) module to regulate input voltages
    • 11-28 AC or DC
    • Conditions the output for the pull-in activation period
    • Reduces holding voltage output for continuous operation and reduced heat
    • Provides current and voltage surge protection and kickback protection
    • Must be installed within 15ft of the mechanism

    Standards

    • Class A, 3 Hour fire rated single door / frame configuration
    • WH recognized for UL10C, Fire Tests of Door Assemblies
    • UBC 7-2, Uniform building Code
    • CAN4 S104, Standard Method for Fire Tests of Door Assemblies
    • NFPA 252 – Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
    • NOTE: WH fire listing is void when using fail safe action

    The Trine 3478F Electric Strike is dubbed the world’s smallest heavy-duty fire-rated electric door strike. With up to 60% less cutting of the frame during installation, the Trine 3000 series has rapidly become the go-to strike for completing a door release or access control system. Install this in place of a standard door strike when using an outside keypad, proximity card reader, fingerprint reader, or to remotely release the door from inside your home or building. For example, having an intercom system, or wanting your secretary to be able to buzz people in.

    Basic

    Manufacturer Trine
    ANSI Rating Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Holding Force 1,500 lbs
    Voltage LC100, 12VDC, 24VDC
    Warranty 1 Year Manufacturer
    Brand Trine

    Door requirements

    Lock Mode Fail Safe, Fail Secure

    Security

    Dimensions

    Backset 1 in.
    Dimensions 4.875 (H) x 1.875 (W) x 1 (D) in.
    Weight .75 lbs
