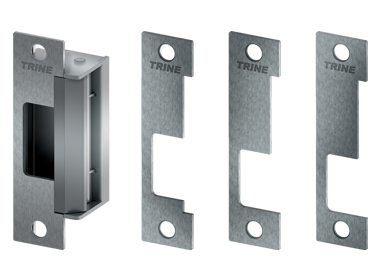

    High-Security Electric Strike for Cylindrical & Mortise Locks

    SKU: 4100-32D



    The Trine 4100 Electric Strike is a high-performance access control solution designed for cylindrical and mortise locks. Featuring a 1-3/8” shallow backset, 3-hour fire rating, and exceeding 3,250 lbs. of holding force, it ensures durability, security, and easy installation in most applications.

    Available on Back Order

    Call For Price
    • One-Box Solution: Compatible with cylindrical and mortise locks (without deadbolt)
    • ANSI/BHMA Grade 1 Certified: Built for high-security applications
    • 3-Hour Fire Rated: Meets UL 10C, UBC 7-2, and CAN4 S104 fire door requirements
    • High Strength: Exceeds 3,250 lbs. of holding force
      Durable Performance: Tested beyond 1,000,000 life cycles
    • Low-Profile Installation:1-3/8” shallow backset fits most fire-rated frames
    • Efficient Power Usage:Low current draw, PoE-friendly operation
    • Included Faceplate:CC Faceplate (recommended for strike plates)
    • Premium Stainless Steel Trim Skirt: Provides a clean, professional finish
    • Multiple Voltage Options: Supports 12VDC, 24VDC, 12AC, 16AC, and 24AC power inputs

    ***Premium Finishes Available - Call to Order (877-439-5377)***

    Model | Finish
    --------------------------------------------------------
    4100-BLK | Black Powder Coat *NEW*
    4100-32D | Satin Stainless Steel
    4100-10B | Dark Bronze
    4100-US3 | Bright Brass
    4100-US4 | Satin Brass
    4100-10 | Satin Bronze

    The Trine 4100 Electric Strike is a high-performance, fire-rated access control solution designed for cylindrical and mortise locks. Engineered with a shallow 1-3/8” backset, it seamlessly fits into 2” fire-rated frames without requiring major modifications. Built to exceed 3,250 lbs. of holding force and tested for over 1,000,000 life cycles, the 4100 ensures durability, security, and long-term reliability.

    This model features low power consumption, making it PoE-friendly, and it carries a 3-hour fire rating for enhanced safety compliance. With ANSI/BHMA A 156.31, Grade 1 certification, the 4100 is built to meet the highest industry standards.

    For this setup, the CC faceplate is included for optimal strike plate compatibility, ensuring secure and precise functionality. Additional options such as fail-safe configurations, latchbolt monitoring, and trim skirts are not included—providing a streamlined, reliable base model for standard security needs.

    Ideal for commercial, institutional, and high-security applications, the Trine 4100 is the perfect blend of strength, efficiency, and ease of installation.

    Basic

    Manufacturer Trine
    ANSI Rating A 156.31
    BHMA Rating Grade 1
    Faceplate CC Faceplate
    Finish Satin Stainless Steel, Polished Stainless, Satin Bronze, Bright Brass, Satin Brass, Dark Bronze
    Holding Force Exceeds 3,250 lbs
    Voltage 12VDC, 24VDC, 12AC, 16AC, 24AC
    Warranty 1 Year Manufacturer
    Trim Style Premium Stainless Steel Trim Skirt

    Door requirements

    Security

    Dimensions

    Backset 1-3/8 inches
    Weight 0.4375 lbs
