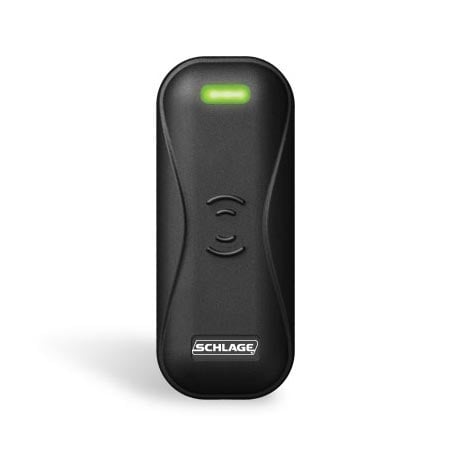

    Schlage PR10

    Mini-Mullion Mount Proximity Reader

    SKU: PR10



    Quantity left : 7



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • Read Range:  Up to 3”
    • Weight:  4.1 oz
    • Dimensions:  4.26″ x 1.72″ x 0.81″
    • Accommodates interior, exterior, metal, and non-metal installation environments
    • Quick-connect cable for easy installation
    • Easy-to-install mounting bracket
    • Tri-state LED (red, green, amber) visual indicator and audio feedback representing status and activity information, easily discernible for the auldibly or visually impaired
    • Wiegand output for simple interface with most access control panels
    • Wiring:  18 or 20 AWG 12 shielded wire, depending on distance to panel
    • Multiple color options
    • Limited Lifetime Warranty

    Insist on the PR10 for your proximity-only access control installs. A direct replacement for the XF1050 and SXF1050 legacy readers, the new PR10 prox mirrors the attractive design of the old aptiQ multi-technology readers and is well suited for both indoor and outdoor installations, especially when you have a tight space to mount your reader. Similar to those readers, the Schlage PR10 operates on a Wiegand interface, and is compatible with all industry leading 125 kHz proximity credentials. The vast majority of access control panels and systems use the Wiegand protocol for communicating meaning there is a near 100% chance you can use the PR10 with your existing system, whether that system was installed two days, or two decades ago. The PR10 is a cost-effective device to give you the edge in both style and efficiency in reading your id cards.


    Manufacturer XceedID Corporation
    Finish Black, Gray, Brown, Cream
    Reader Type Front-end Only
    Prox Card/Fob
    Brand Schlage

    Door requirements
