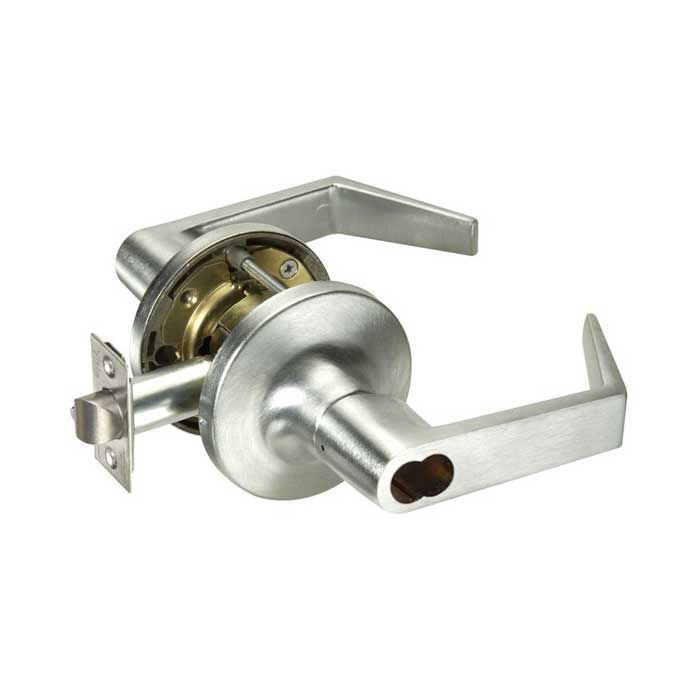

  • Yale B5408LN

    Heavy-duty Commercial Lockset

    SKU: B5408LN

    Yale



    CLEARANCE - Limited Quantities Remaining
    Classic toughness. The Yale B5408LN Heavy-duty Commercial Lockset provides reliable access to your industrial, commercial and institutional doors. Featuring a free-wheeling lever mechanism and deadlocking latchbolt, this lockset cuts no corners on safety or performance!

    Quantity left : 6

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $60.36

    Call For Price
    • Heavy-duty commercial lockset
    • Classroom function - outside lever locks and unlocks with key, inside lever always unlocks for quick egress
    • Deadlocking latchbolt
    • Free Wheeling lever mechanism allows lever to move up and down when locked
    • Less core model
    • Yale 6 PIN keyway prep
    • Augusta lever
    • Satin Chrome finish
    • Non-handed
    • ANSI A156.2, Series 4000 Grade 1
    • UL/cUL fire-rated up to 3 hours
    • Windstorm certified (refer to local codes)

    Basic

    Manufacturer Yale
    ANSI Rating A156.2, Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Brand Yale

    Door requirements

    Door Handing Non-Handed
    Latch Bolt 1/2 in. throw
    Lever Design Augusta

    Security

    Fire Rating UL 3 hr. Latch

    Dimensions

    Door Thickness Minimum 1 3/4 in.
    Door Thickness Maximum 2 in.
    Backset 2 3/4 in.
    Dimensions 3 1/2 (H) x 5 7/16 (W) x 3 3/64 (D) in.
