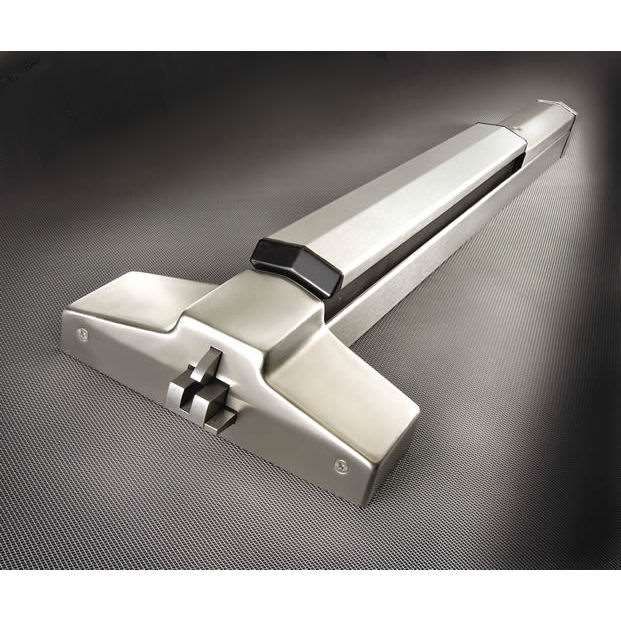

  • Yale 7100F

    Fire-Rated Rim Panic Bar for Exit Doors

    SKU: 7100F36630


    Door Opening Size

    Quantity left : 0



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions


    • Door Applications:  Fire-Rated Openings with 4′ x 8′ single, 8′ x 8′ pairs, 3 hr. steel fire doors
    • Non-handed for easy installation
    • Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available to 4-1/2″
    • Minimum Stile Width: 4-1/2″ (114mm)
    • Projection: 3-1/4″ (83mm) active, 2-3/4″ (70mm) dogged
    • Latchbolt: 3/4″ (19mm) deadlocking stainless steel pullman-type
    • ANSI/BHMA Certified: A156.3 Type 1, Grade 1
    • Mechanical exit devices carry a five-year limited warranty
    • ANSI Function 01 — Exit Only, No Trim
    • Performance Standard — UL & cUL Panic Exit Listing
    Few door hardware manufacturers equal Yale's combination of visual appeal, innovation, and durability they deliver with their 7100F line of heavy-duty rim fire-rated exit devices.  Whether it's providing new panic hardware for fire opening doorways at a company's headquarters, University, school, bank, or hotel, or ensuring safe and reliable egress at your neighborhood church, Yale is there with the experience, reputation, and name to provide you the best value for your equipment purchase — as opposed to simply buying a generic panic bar at a low cost.  From day one, and every day thereafter, you will save money each time you don't have to call out a tech to service your fire rated rim exit device because it's jammed, or in need of a new part.  Choose the Yale 7100F fire-rated rim exit device and you choose a panic bar with an elegant styling that will only enhance your building's appeal, while providing your building's occupants a swift, unobstructed egress.


    Manufacturer Assa Abloy
    ANSI Rating A156.3, Grade 1 (Best)
    BHMA Rating Grade 1 (Best)
    Warranty 5 Year Limited Manufacturer
    Brand Yale

    Door requirements

    Door Handing Non-Handed


    Fire Rating UL 3 hr. latch


    Door Thickness Minimum 1 3/4 in.
    Door Opening Size 30 - 36 in., 36 - 48 in.
    Door Stile Width Minimum 4 1/2 in.
    Weight 10 lbs
