  • Industry

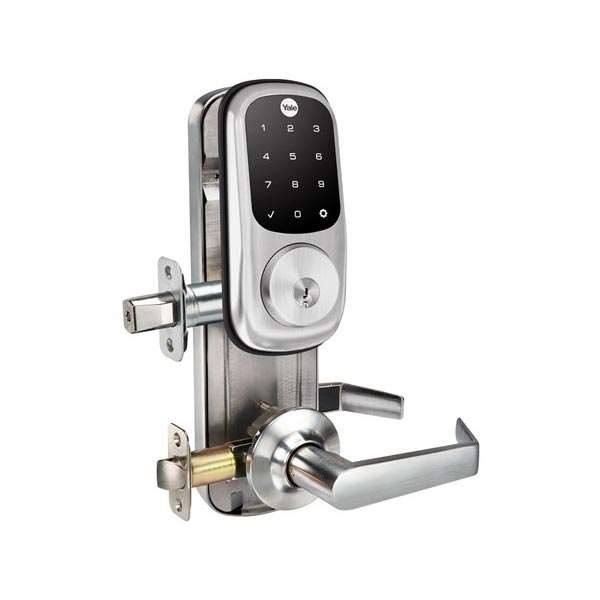

  • Yale Assure YRC226 Z-Wave

    Wireless Touchscreen Interconnected Electronic Lock

    SKU: YRC226ZW2AU4619RH

    Yale Home



    Goodbye keys and hello convenience. Ideal for multi-family, residential, and light-duty commercial projects, this Z-Wave integrated touchscreen lock from Yale offers a smooth weather resistant design and easy installation. The interior lever retracts the latch and deadbolt simultaneously for a quick exit while the motorized deadbolt ensures a secure lock every time.

    Key Override

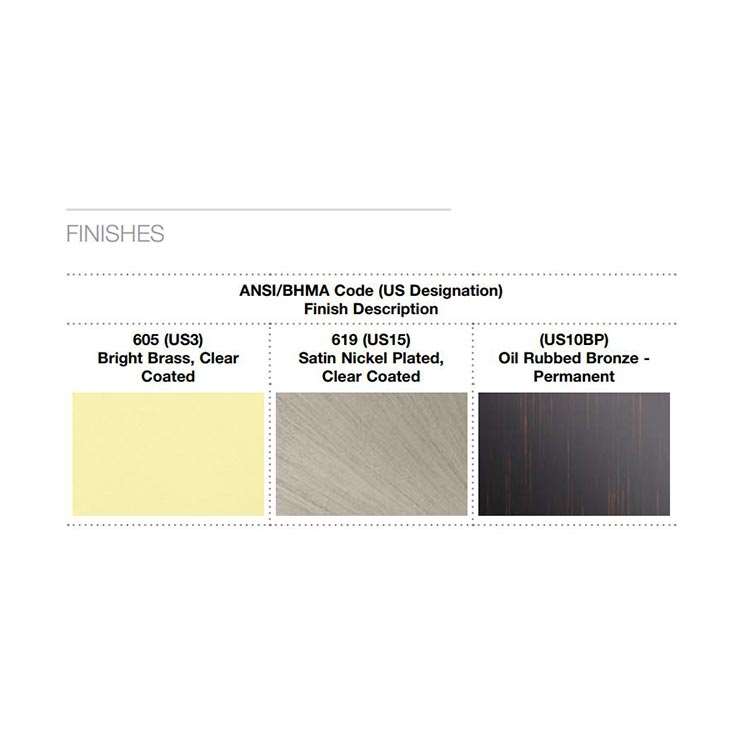

    Finish

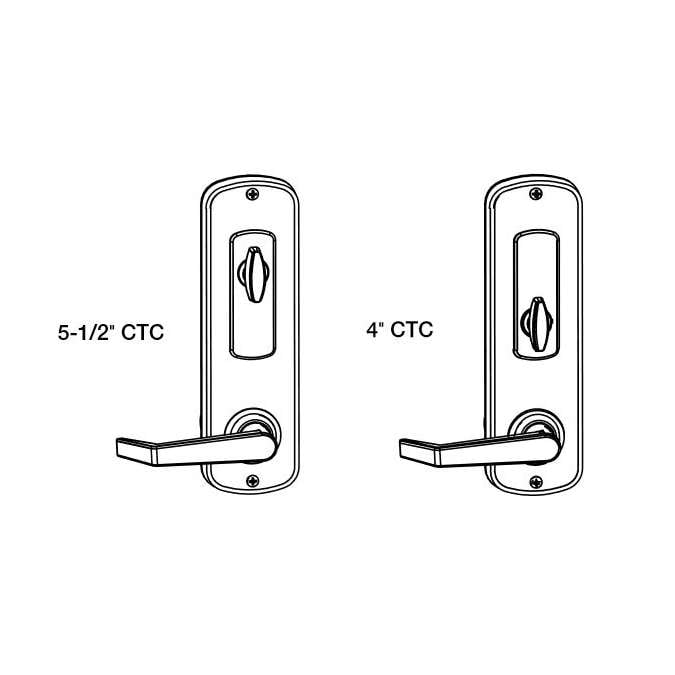

    Center to Center

    Quantity left : 2

    Shield

    EXTENDED PROTECTION PLAN

    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

    $85.74

    Call For Price

    Yale Assure Lock Interconnected Lock Series

    Features

    • Yale Real Living Assure Lock Interconnected combines electronic deadbolts with the convenience of a passage lever for panic proof egress
    • From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit
    • Z-Wave integrated

    Benefits

    • Installs in minutes with just a screwdriver, DIY installation or professionally installed
    • Field reversible handing
    • Stores 25 pin codes standalone or 250 when integrated into a Z-Wave or ZigBee system
    • Rubber gasket protects your door and shields your lock from weather elements
    • Motorized, tapered deadbolt
    • Low battery indicator and 9V battery back-up terminal on key free models
    • Solid metal escutcheon
    • Privacy button prevents unwanted access from the outside at the touch of a button
    • Voice assisted programming on the touchscreen models
    • Capacitive touchscreen or acrylic push button keypad with backlit numbers
    • Keypads wake with a touch

    These locks present a significant benefit to multi-family and multi-unit projects, commonly requiring rekeying:

    • Multi-family residences
    • Assisted living facilities
    • Public restrooms
    • Office and small business applications

    YRC226 with Z-Wave

    • Single point lock
    • The latchbolt is operated by either lever at all times
    • The deadbolt is activated by either lever at all times
    • Deadbolt activated by touchscreen or key on outside or by thumbturn on inside

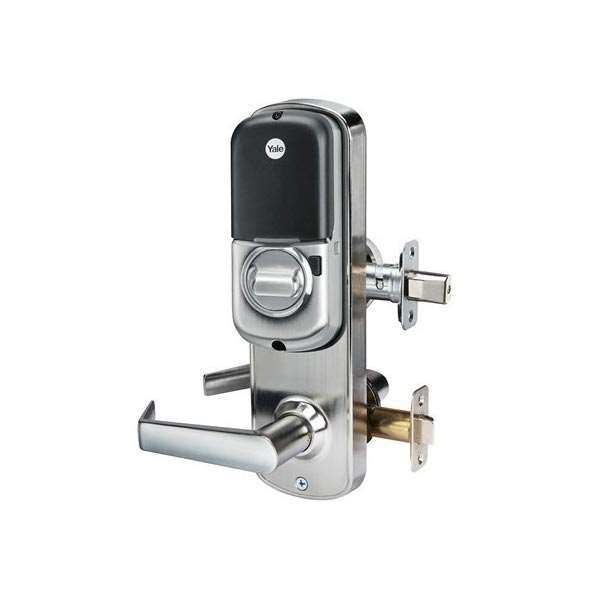

    • The interior lever retracts the latch and deadbolt simultaneously

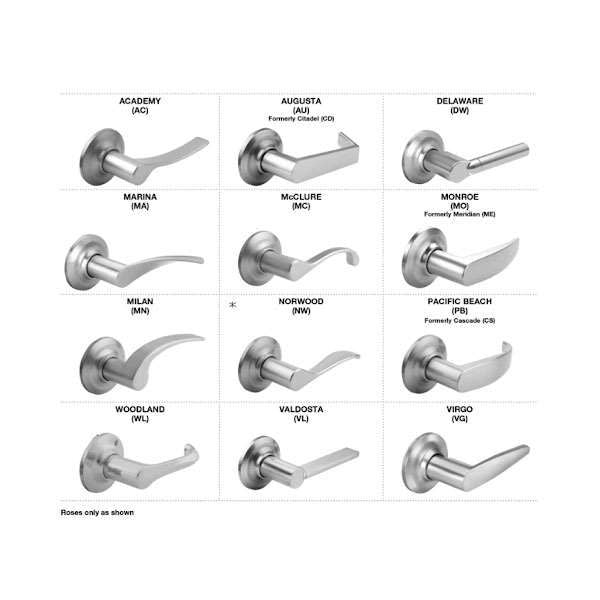

    *Augusta lever style shown, additional lever styles available by special order

    **Also available in push button YRC216

    Home Automation is a style of living. It is about always being connected to the home you love. These systems allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.


    STRENGTHEN YOUR Z-WAVE NETWORK WITH A SIGNAL REPEATER

    LEARN MORE



    Ideal for multi-family, residential, and light-duty commercial projects, the Yale Interconnected Lockset offers a smooth design and easy DIY installation with just a screwdriver. A rubberized gasket protects the lock and door from weather while the solid metal escutcheon protects against break-in attempts. Simultaneous retraction of the deadbolt and latchbolt with the lever means a speedy exit. With the ability to store up to 250 unique codes through Z-Wave, you can ensure specific lock access to a large amount of visitors. The backlit touchscreen allows for low light access and a privacy button prevents any access at all. Available in three finishes. Additional lever styles are available by special order.

    Basic

    Manufacturer Yale
    ANSI Rating Grade 2 (Better)
    BHMA Rating Grade 2 (Better)
    Compatibility Ring Video Doorbell
    Lock Features Auto Relocking, Battery Backup, Privacy, Z-Wave Plus
    Solution Electronic
    Warranty 1 Year Finish and Electronics, 3 Year Mechanical
    Handle Type Lever Handle Door Locks
    Access Type Key
    Keypad - Digits
    Locking Device Interconnected
    Brand Yale Home

    Door requirements

    Door Handing Reversible
    Battery Temperature Range -14°F to 131°F (-10°C to 55°C)
    Strike 1 x 2 1/4 in. (Deadbolt), 2 1/4 in. (Lever)

    Security

    Code Capacity 250
    Keying Key Different
    Wireless Protocol Z-Wave Plus

    Dimensions

    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 1 3/4 in.
    Backset 2 3/8 to 2 3/4 in. adjustable
    Height Ring Video Doorbell
    Storage Temperature Range -40° to 185°F (-40° to 85°C)


    Z-Wave Systems:
    This is a Z-Wave device that can be controlled remotely by connecting it to one of these systems.

    Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

    *Also works with Samsung SmartThings, Ring, Wink, Iris, ADT Pulse, Alarm.com, Honeywell, HomeSeer, LG Smart Security, Staples' Connect, Harmony by Logitech, and many more.
