  • Yale nexTouch NTB623-NR-626

    Cylindrical Touchscreen Lever

    SKU: AU NTB623-NR 626 E694 SC 2803-53L

    nexTouch and Yale

    The next level in door access! The Yale nexTouch NTB622 provides easy and secure keyless PIN code door access for your small businesses. Equipped with a backlit touchscreen keypad, lockout mode and more. Future-proof modular technology allows for upgrades as needs and technology expand.

    Quantity left : 5



    3 Years of SHIELD Coverage

    Product Replacement | Extended Return Policy | Price Protection

    Terms and Conditions

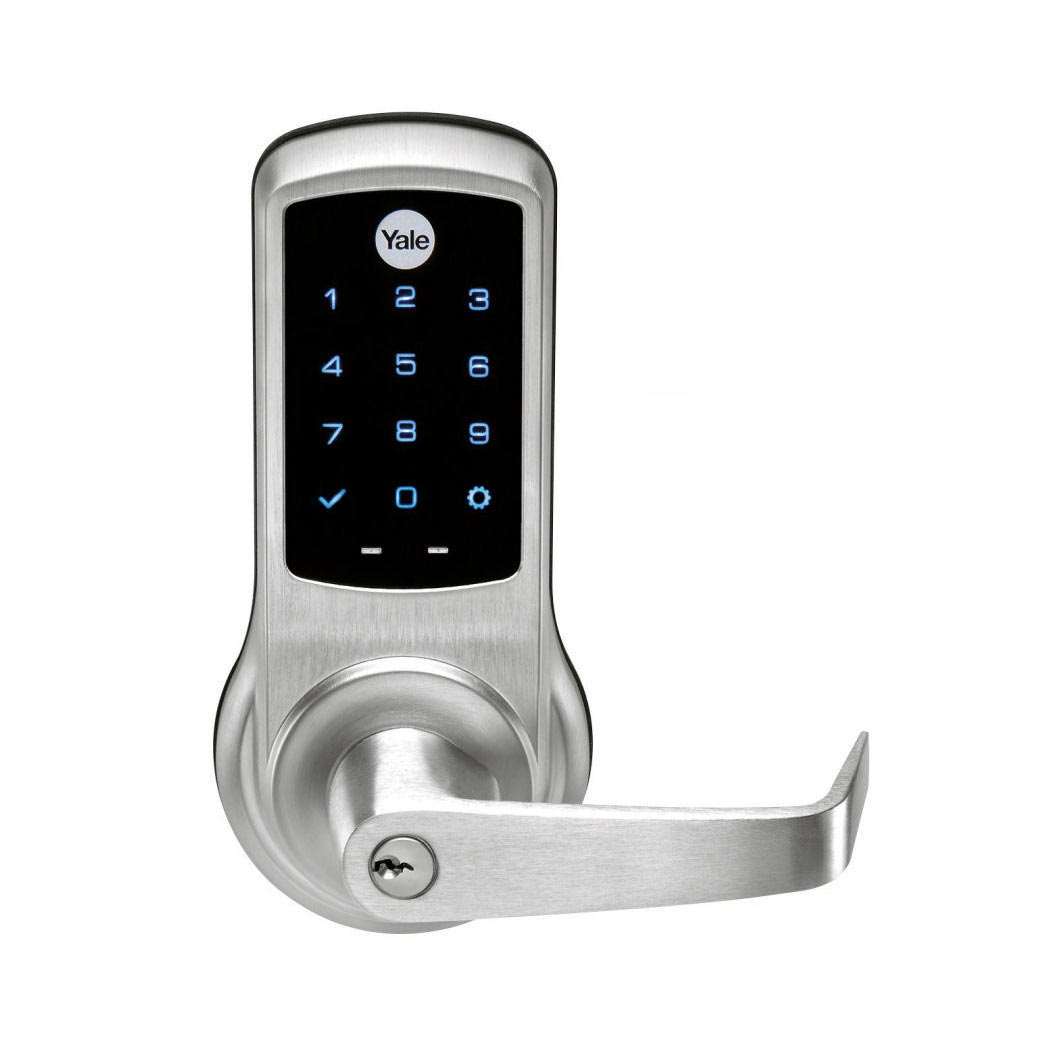

    • Backlit capacitive touchscreen keypad
    • Designed for small business applications
    • Seamlessly retrofits mechanical cylindrical locks for easy upgrade to access control
    • Free-wheeling lever style resistant to vandalism
    • Up to 25 user codes in keypad only operation
    • Easy to install; standard door prep, 2-1/8″ cross-bore, 1″ edge bore
    • Standard 2 3/4 in. backset, 2 3/8 in. latchbolt replacement available
    • Augusta lever and Satin Chrome finish standard, additional options available via special order
    • Reduces cost of re-keying
    • Voice prompted programming
    • Privacy mode to lockout keypad entry
    • 9V battery back-up
    • Includes Schlage “C” Keyway Cylinder 6-Pin

    Don’t waste time and money with lockouts, lost keys, and cumbersome lock management. Skip the hassle and go keyless with the Yale nexTouch NTB622. This heavy-duty weather resistant lock is equipped with a sleek modern touchscreen keypad for PIN code entry. Add a Z-Wave module (sold separately) to quickly generate and send secure digital codes to staff, vendors, guests, and monitor doors remotely. The lock’s low-battery indicator alerts you when it’s time to change batteries, and the 9V battery backup on the exterior prevents a lockout should the lock lose power. In case of emergency, a manual key override unlocks the outside lever. Ideal for new construction or retrofit projects in small business p


    Manufacturer Yale
    ANSI Rating Grade 1 (Best)
    Battery Type AA
    BHMA Rating Grade 1 (Best)
    Finish Satin Chrome
    Lock Features Old Privacy, Temporary Codes, Timed Codes
    Solution Electronic
    Warranty 3 Year Manufacturer
    Access Type Key
    Keypad - Digits
    Locking Device Cylindrical Latch
    Brand nexTouch

    Door requirements

    Door Handing Reversible
    Door Prep Standard 2 1/8 in. Cross-Bore


    Code Length 4 to 6 Digits
    Key Override Yale Commercial SFIC
    Users 25


    Exterior Dimensions 8 1/8 (H) x 3 3/4 (W) x 3 5/16 (D) in.
    Door Thickness Minimum 1 3/8 in.
    Door Thickness Maximum 1 3/4 in.
    Backset 2 3/4 in.
    Door Stile Width Minimum 3 1/2 in.
    Exterior Dimensions 8 1/8 (H) x 3 3/4 (W) x 3 5/16 (D) in.
    Weight 6 lbs

    Z-Wave Systems:
    This is a Z-Wave device that can be controlled remotely by connecting it to one of these systems.

    Home Automation is a style of living. It is about always being connected to the home you love. These systems* allow you to control your connected home devices such as door locks, thermostats, lights, motion sensors, cameras, water sensors, and more, all remotely from a computer or smartphone.

    *Also works with Samsung SmartThings, Ring, Wink, Iris, ADT Pulse, Alarm.com, Honeywell, HomeSeer, LG Smart Security, Staples' Connect, Harmony by Logitech, and many more.
