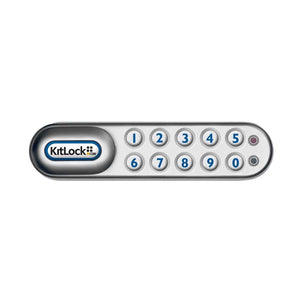

KitLock KL1000 Horizontal
Electronic Cabinet Lock
Bulk pricing available. Price adjusted in cart at select quantities. Please call for details.
For more information or ordering assistance, please call our Cabinet Project Specialists at 877-439-5377 ext 9002
- 11 individual round buttons
- 8 digit Master Code
- 8 digit Sub-Master Code
- 4 digit User Code
- 6 digit Technician Code
- 15,000 openings
- Private or public function
- Easy fit

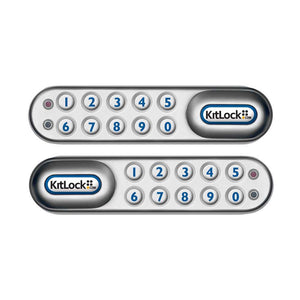

- Horizontal, vertical models
- Low Battery: Red flashing LED flashing; lock will open 100 more times after this signal is initiated
- Non-volatile memory retains settings when batteries are changed

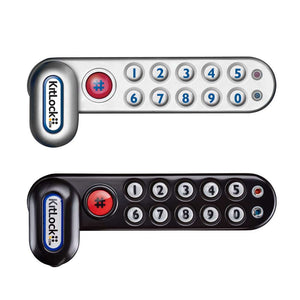

- Multiple Finishes: Choose from silver grey, and black

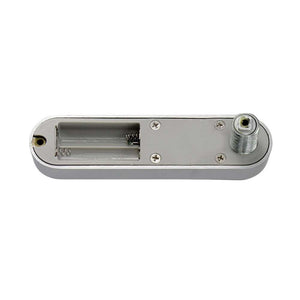

- Battery Failure Override: KL1000 has been designed so a PP3 battery can be placed against the external contacts and using the master code to gain entry
- IP54 rated
- Cam Fixing Point: 8mm (5/16”) square
- Door Thickness: KitLock 1000 is supplied ready to fit to doors up to 19mm (3/4”) thick. For doors 6.35mm (1/4”), 12.7mm (1/2”), 25mm (1”), or 28.5mm (1-1/8″) thick, you will need to install the spare spindle provided. Save time and let us do this for you with our Custom Shell Size service
- IP Rating: IP54 (when fitted with optional gasket)
- For Internal Use
5 3/8 in. (136mm) (L) x 1 ¼ in. (32mm) (W) x 1 3/16 in. (30mm) (D) to handle
|Door Thickness Minimum|
1 1/4 in.
|Door Thickness Maximum|
1 1/8 in.
Buttons: Dual Epoxy Coated, Zinc Alloy
Keypad – Digits
Lever Handle Door Locks
Left Hand, Right Hand
Black, Silver Grey
2 Year Manufacturer
Customer Questions & Answers

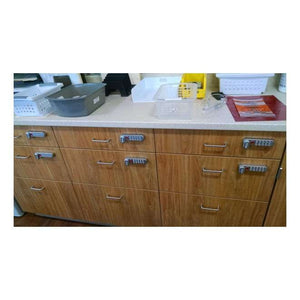

- Q Would this product work for a kitchen drawer? The photos are in drawers, but the description when... answer nowAsked by Molly on August 4, 2020 8:57 PMA
This model is primarily designed to be installed on cabinets or lockers but can certainly be used for drawer applications.
- Q Does this a lock keep memory of which codes are used to access the cabinet? answer nowAsked by Teneshia Taylor on December 31, 2016 2:19 PMA
This one does not. Take a look at the cabinet locks we offer that include the audit trail feature.
