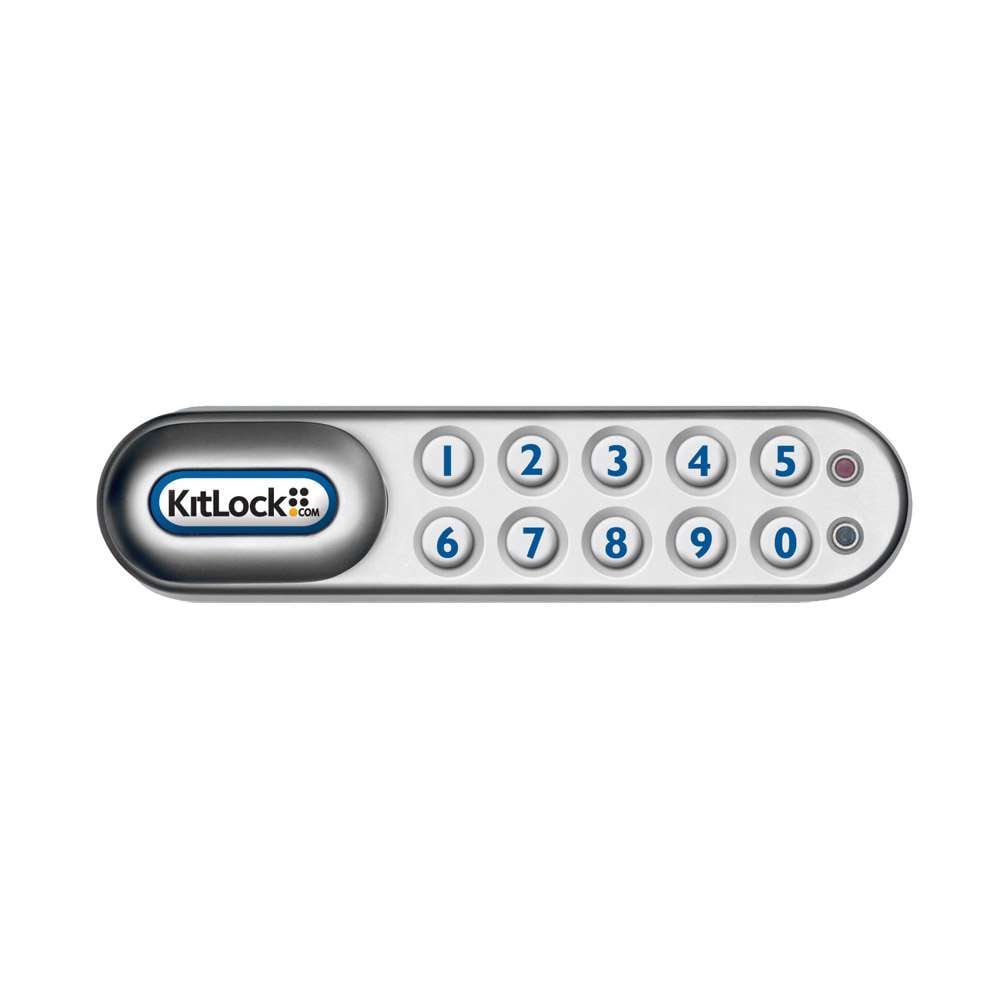

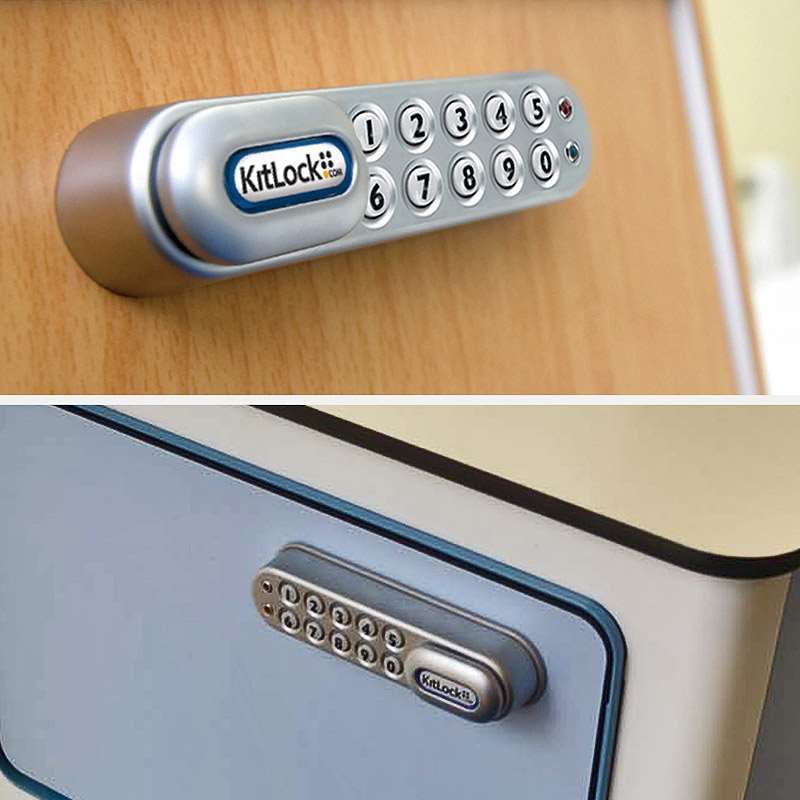

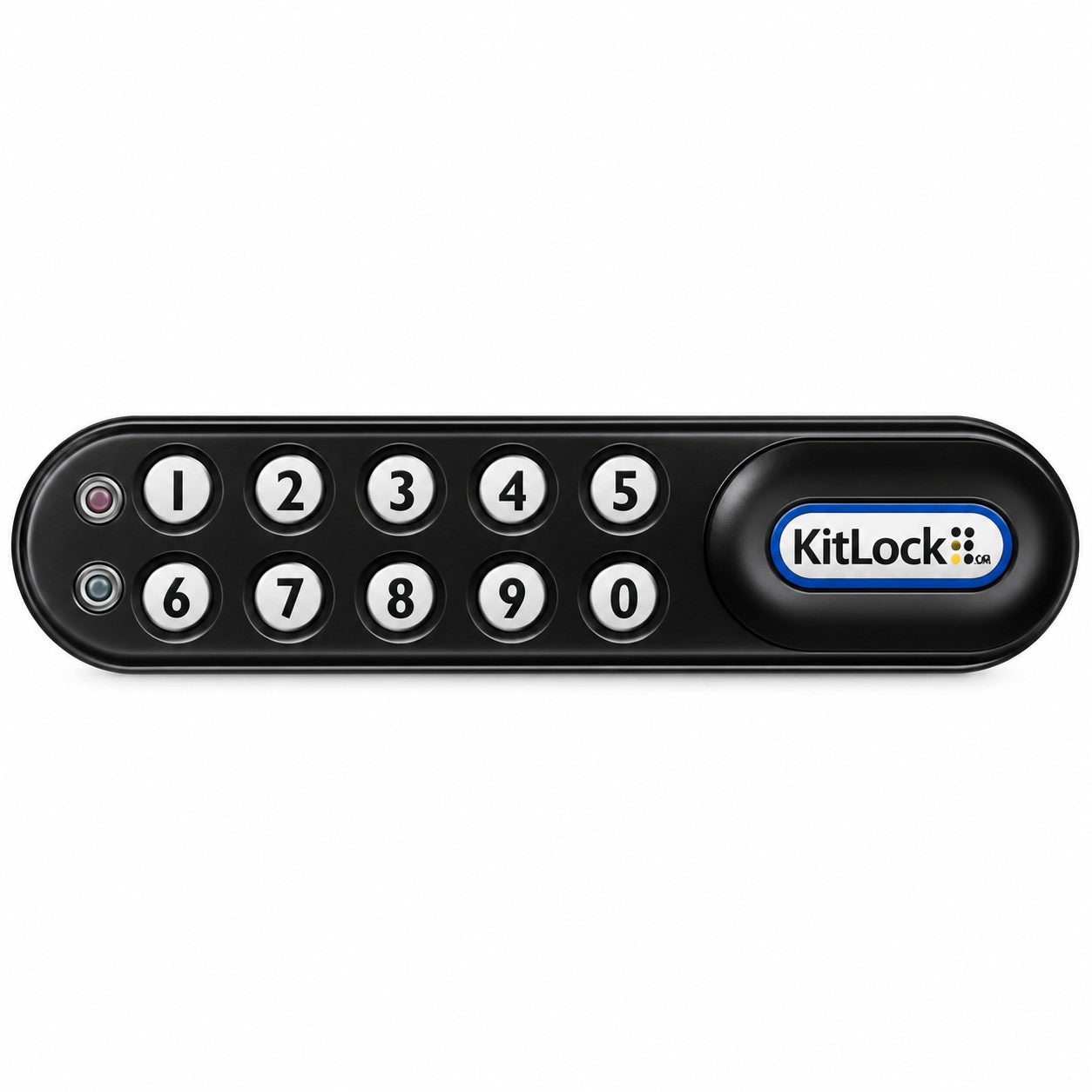

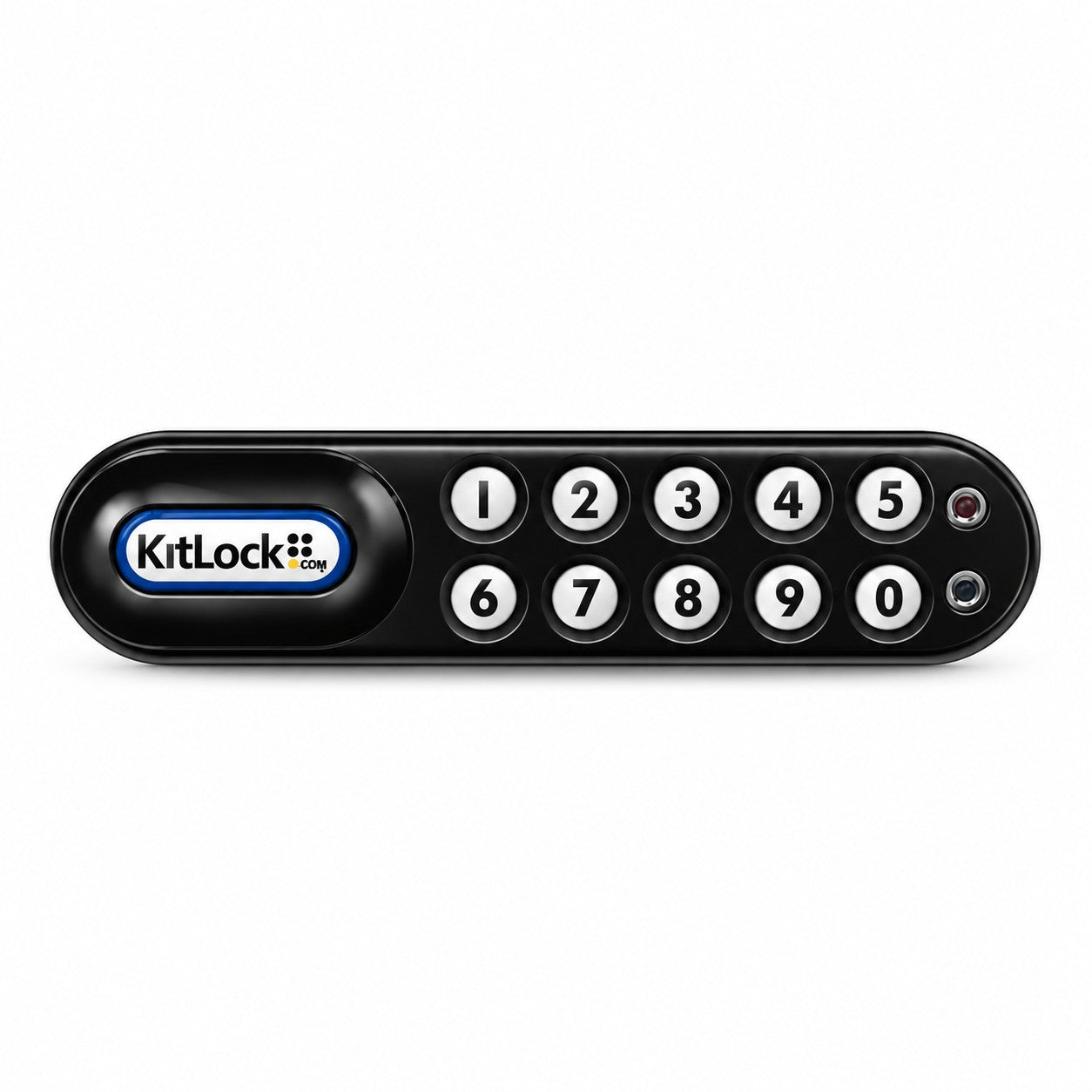

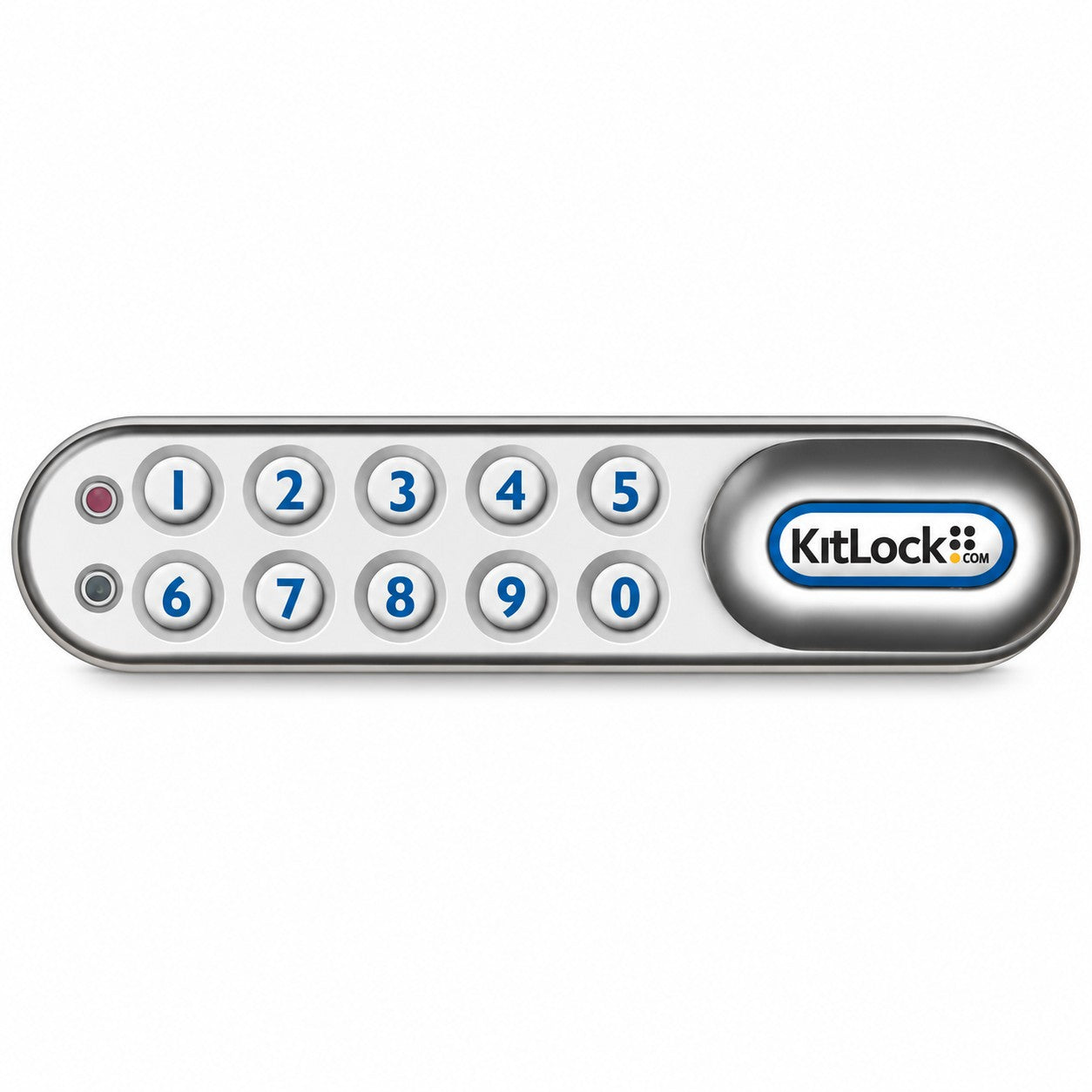

  • KitLock KL1000 Horizontal

    Electronic Cabinet Lock

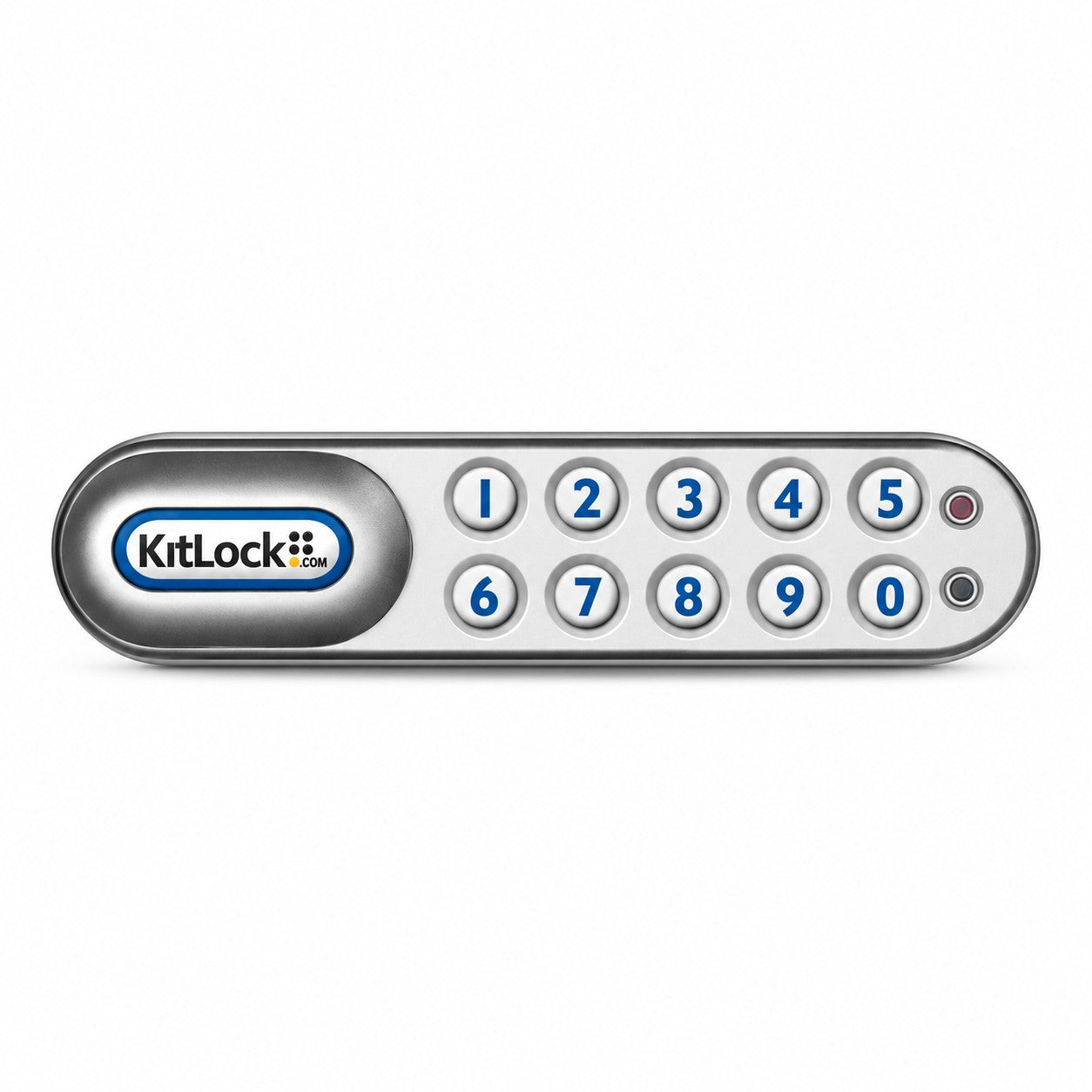

    SKU: KL1006 Kit LH/SG


    Door Handing

    In Stock

    Call For Price
    • 11 individual round buttons
    • 8 digit Master Code
    • 8 digit Sub-Master Code
    • 4 digit User Code
    • 6 digit Technician Code
    • 15,000 openings
    • Private or public function
    • Easy fit

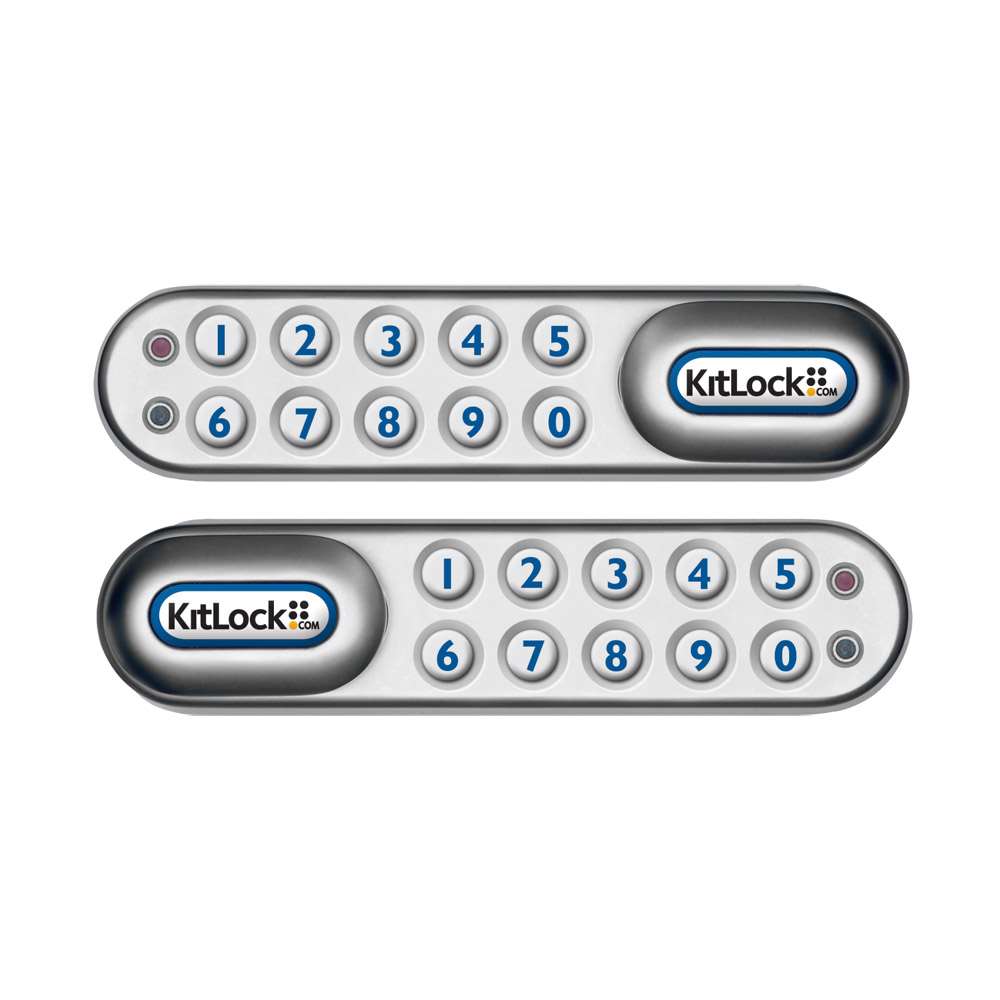

    • Horizontal, vertical models
    • Low Battery: Red flashing LED flashing; lock will open 100 more times after this signal is initiated
    • Non-volatile memory retains settings when batteries are changed

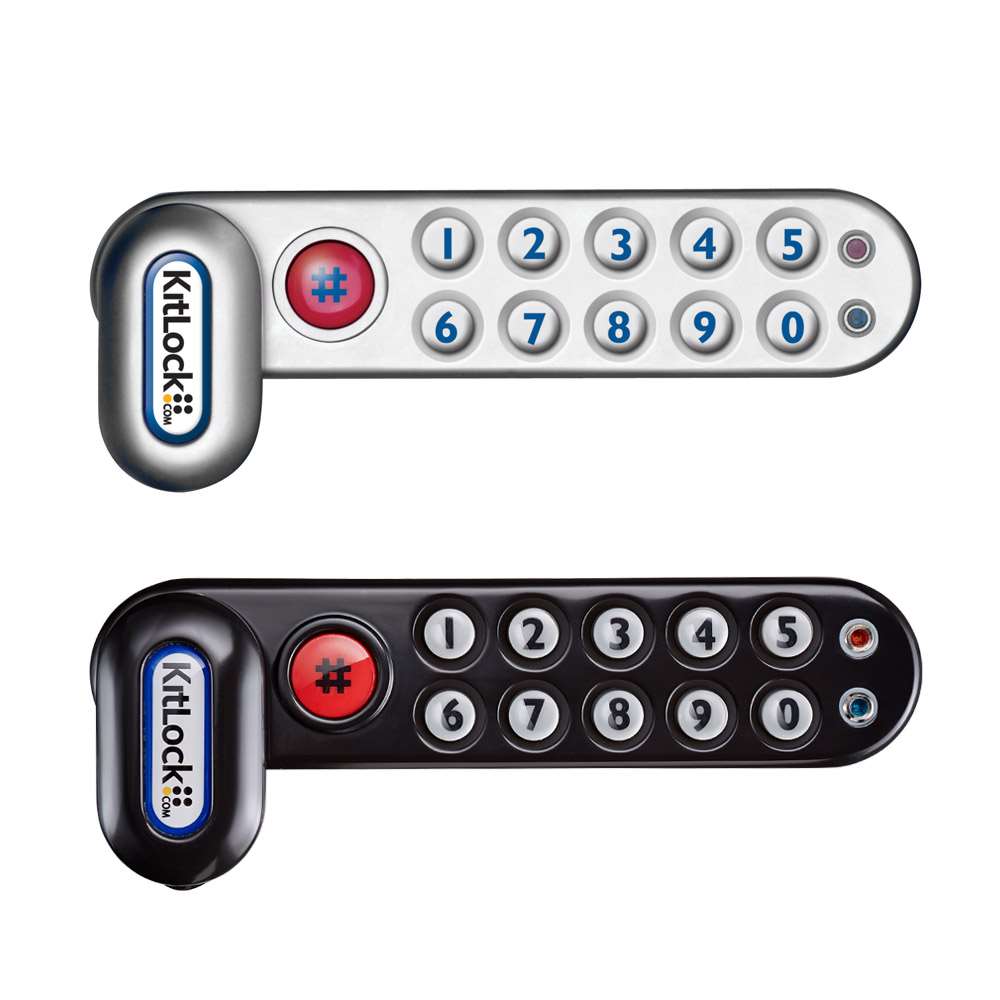

    • Multiple Finishes: Choose from silver grey, and black
    • Battery Failure Override: KL1000 has been designed so a PP3 battery can be placed against the external contacts and using the master code to gain entry
    • IP54 rated

    Technical Information

    • Cam Fixing Point: 8mm (5/16”) square
    • Door Thickness: KitLock 1000 is supplied ready to fit to doors up to 19mm (3/4”) thick. For doors 6.35mm (1/4”), 12.7mm (1/2”), 25mm (1”), or 28.5mm (1-1/8″) thick, you will need to install the spare spindle provided. Save time and let us do this for you with our Custom Shell Size service
    • IP Rating: IP54 (when fitted with optional gasket)
    • For Internal Use


    Formerly known as CodeLocks CL1000

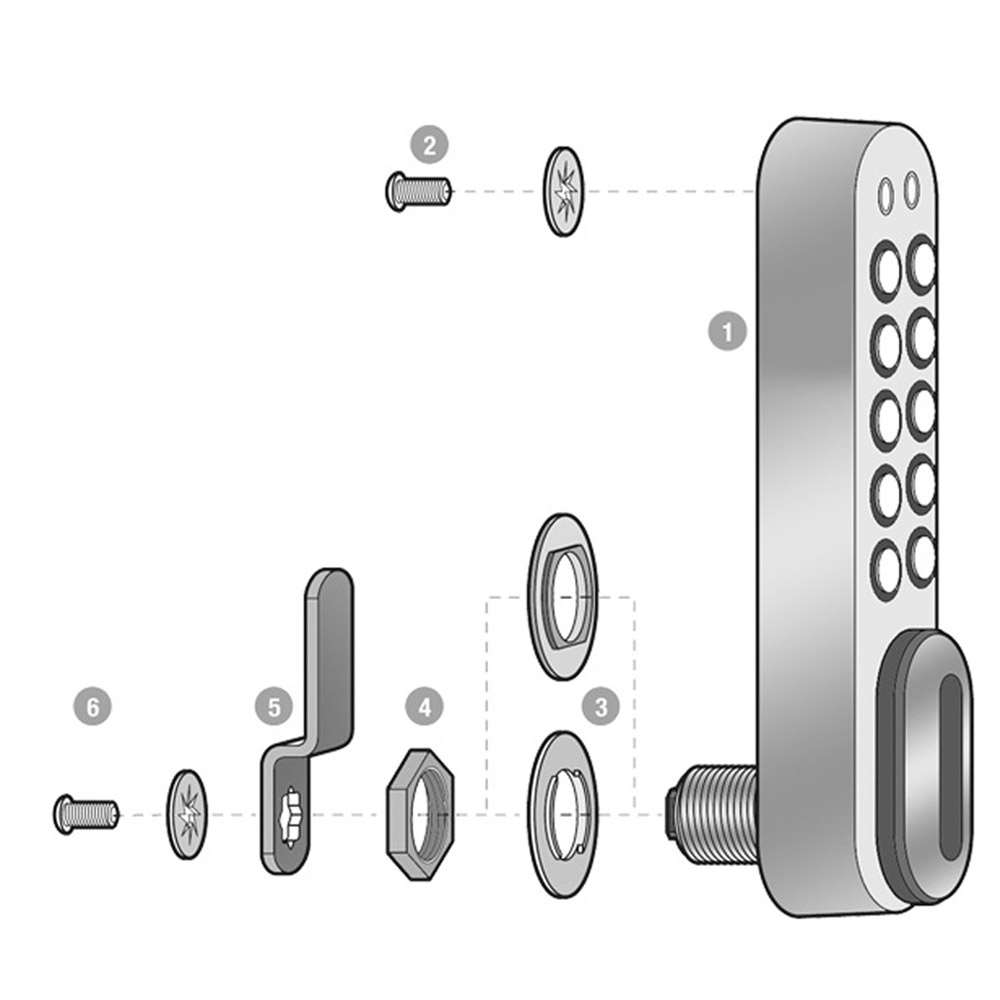

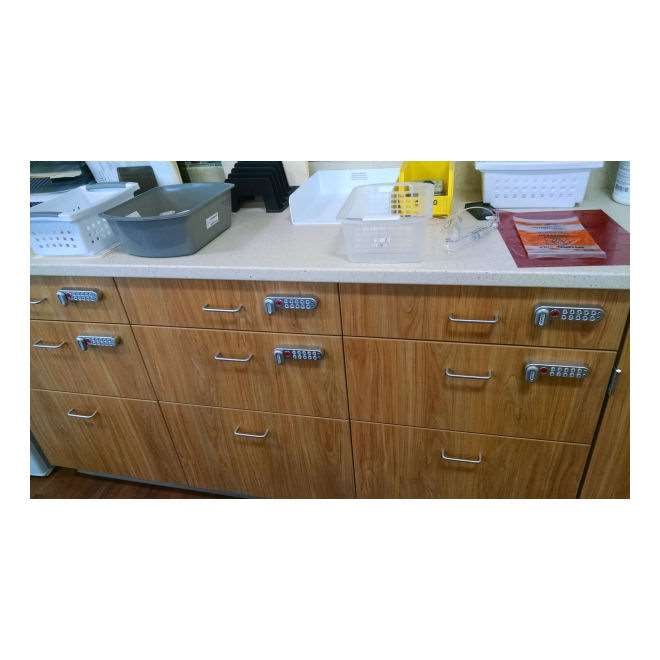

    KitLock 1000 are a quick retrofit for keyed cam locks supplied as standard on a wide range of lockers, cabinets and cupboards. The keyless locks are easy to fit, taking just a few minutes to remove the existing cam lock and then making an additional top fixing for the new lock. KL1000 can also be fitted to a locker or cabinet that does not have an existing locking device already fitted, giving the user immediate, simple, keypad access without the hassle of keys! Once in place the lock will perform 15,000 openings on just two AAA batteries. Common uses include cabinets, lockers, medical carts, gun boxes, safes for offices, schools, warehouses, hospitals, care homes, nurseries, hotels, leisure facilities, and the home.


    Manufacturer Codelocks

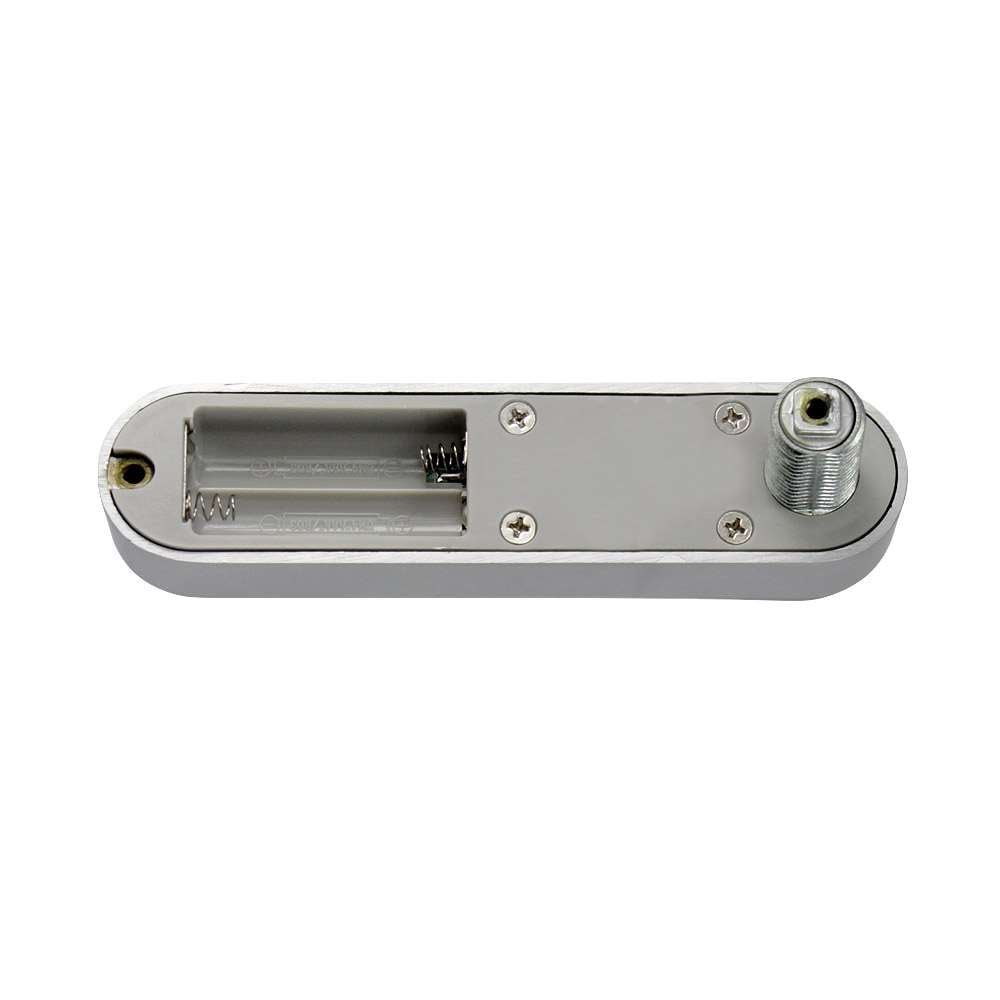

    Battery Type AAA
    Finish Black|Silver Grey
    Solution Electronic
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Keypad - Digits
    Locking Device Cam
    Brand KitLock

    Door requirements

    Door Handing Left Hand|Right Hand
    Battery Life 15,000 Cycles


    Code Length 4 digits


    Exterior Dimensions 5 3/8 in. (136mm) (L) x 1 ¼ in. (32mm) (W) x 1 3/16 in. (30mm) (D) to handle
    Door Thickness Minimum 1 1/4 in.
    Door Thickness Maximum 1 1/8 in.
    Exterior Dimensions 5 3/8 in. (136mm) (L) x 1 ¼ in. (32mm) (W) x 1 3/16 in. (30mm) (D) to handle
    Weight 1.5 lbs
