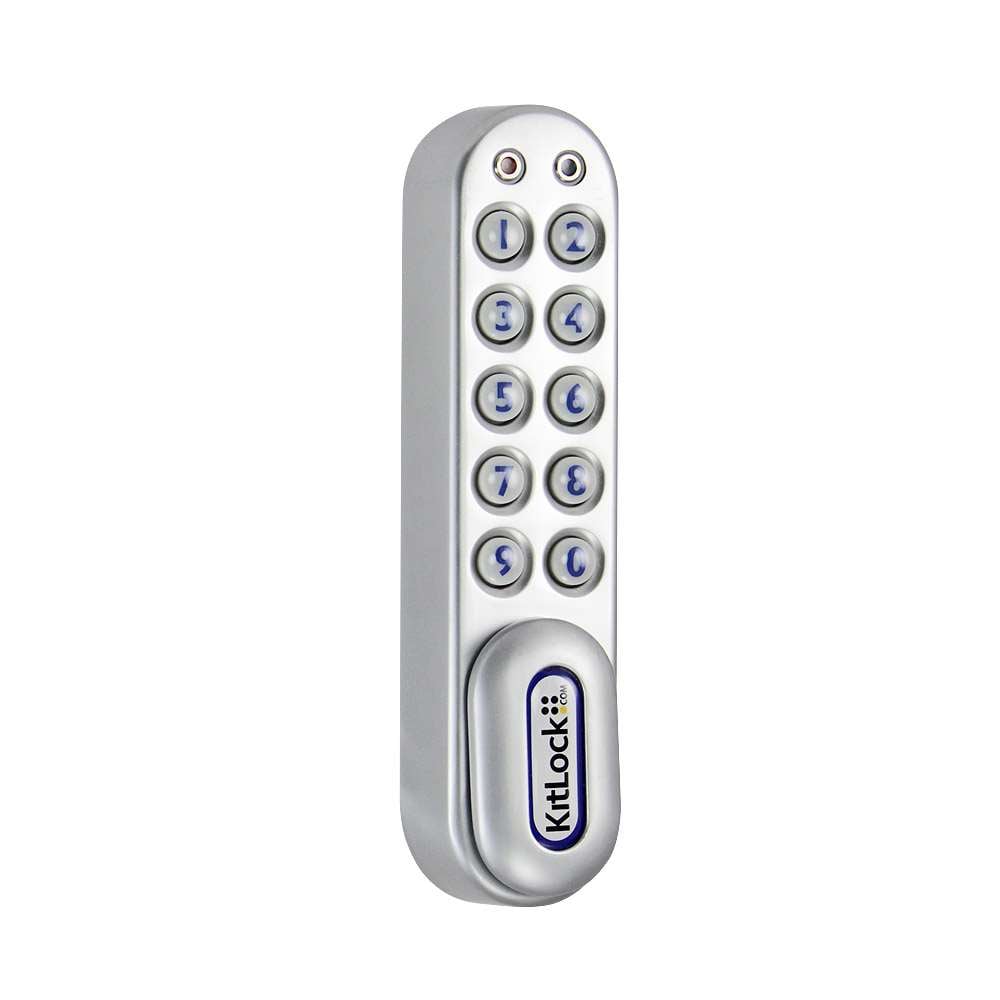

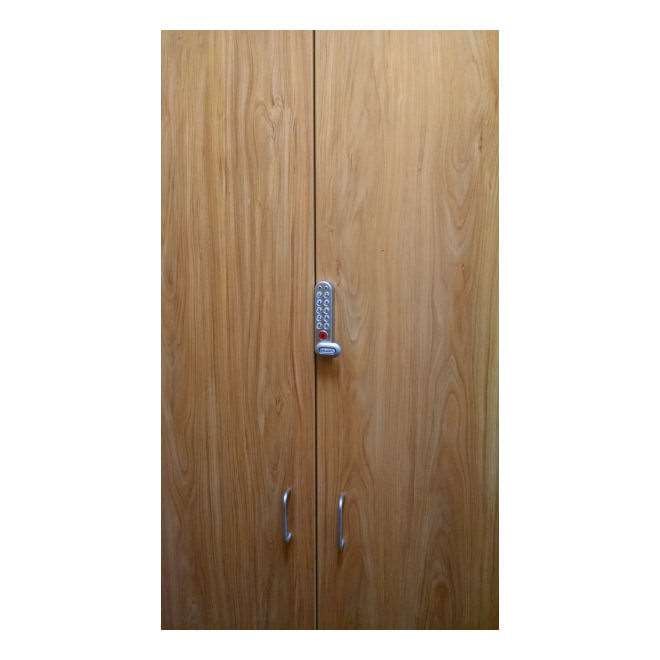

  • KitLock KL1000 Vertical

    Electronic Cabinet Lock

    SKU: KL1006 Kit V/BK


    Digital keyless solution for lockers and cabinets. No more lost keys, make the switch to simple four-digit keypad access. Go keyless with KitLock.


    In Stock

    Call For Price
    • 11 Individual round buttons
    • 8 digit Master Code
    • 8 digit Sub-Master Code
    • 4 digit User Code
    • 6 digit Technician Code
    • Private or public function

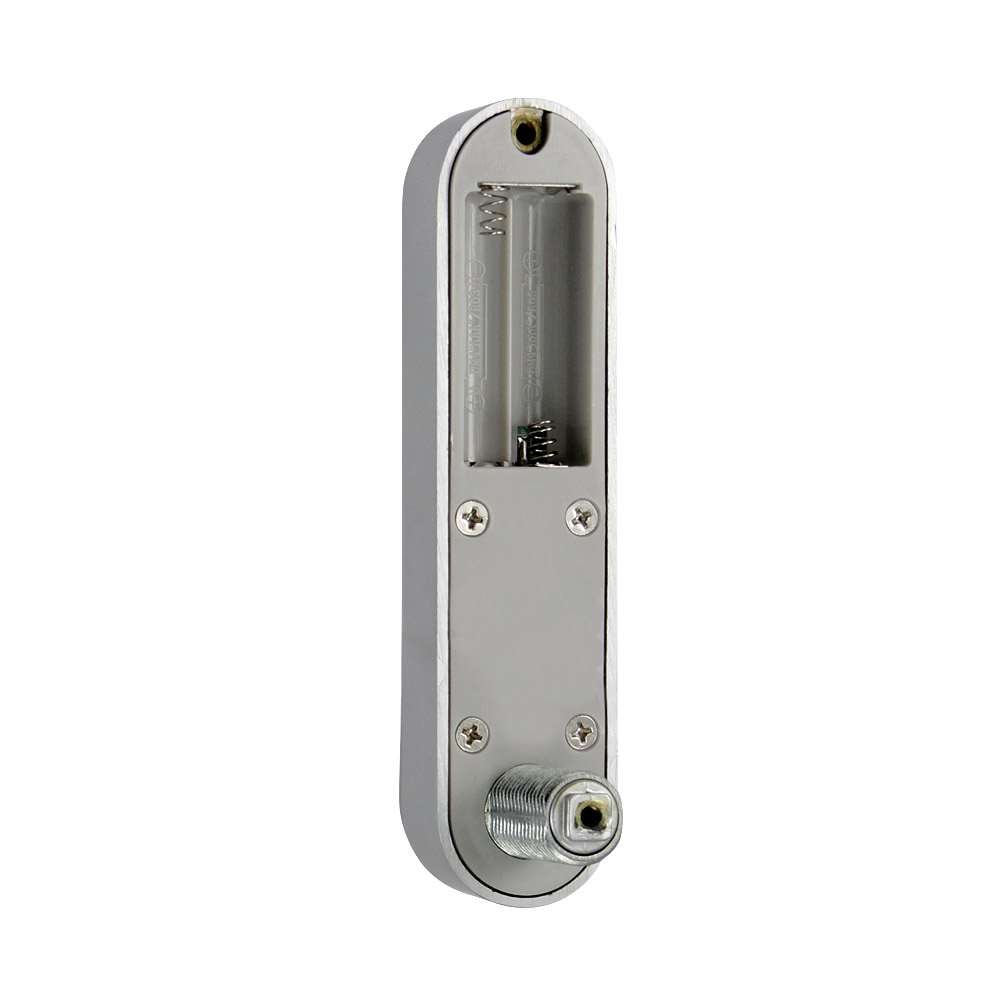

    • No Wires: Battery powered with 2 x AAA
    • Low Battery: Red flashing LED flashing; lock will open 100 more times after this signal is initiated
    • Non-volatile memory retains settings when batteries are changed

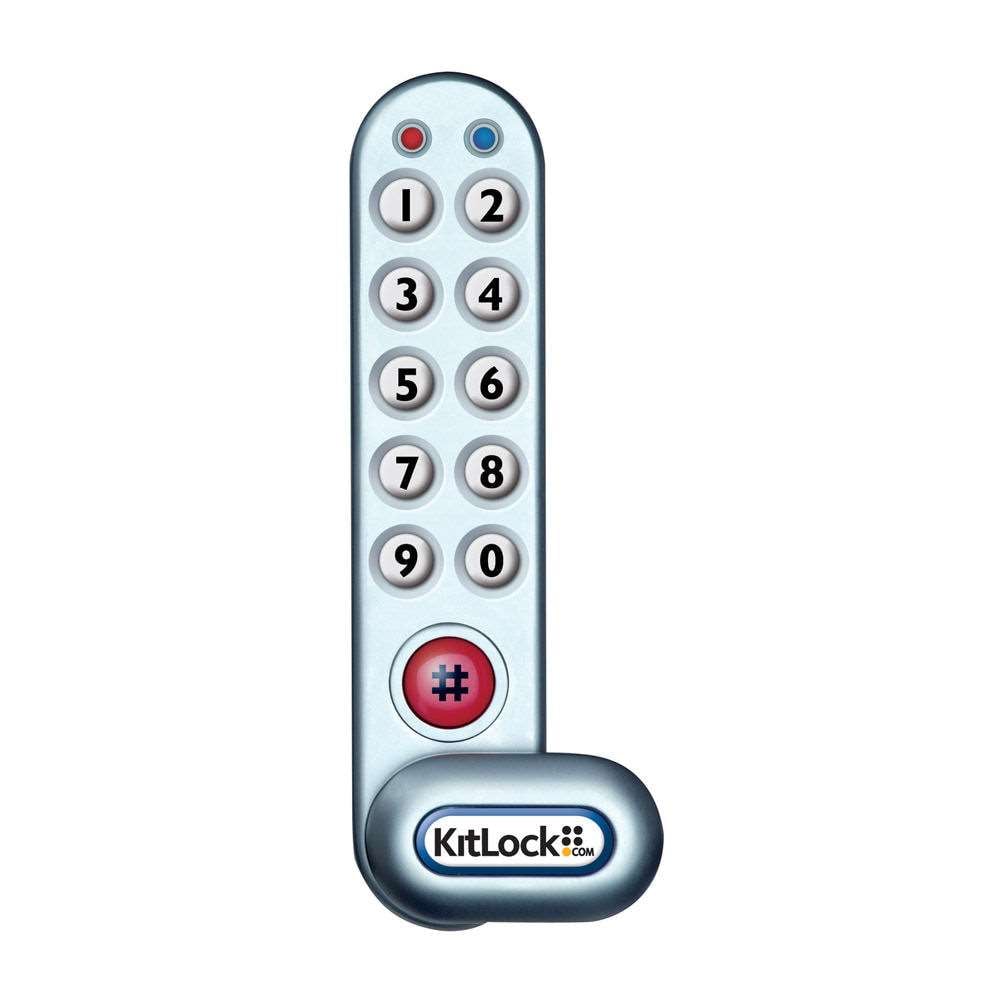

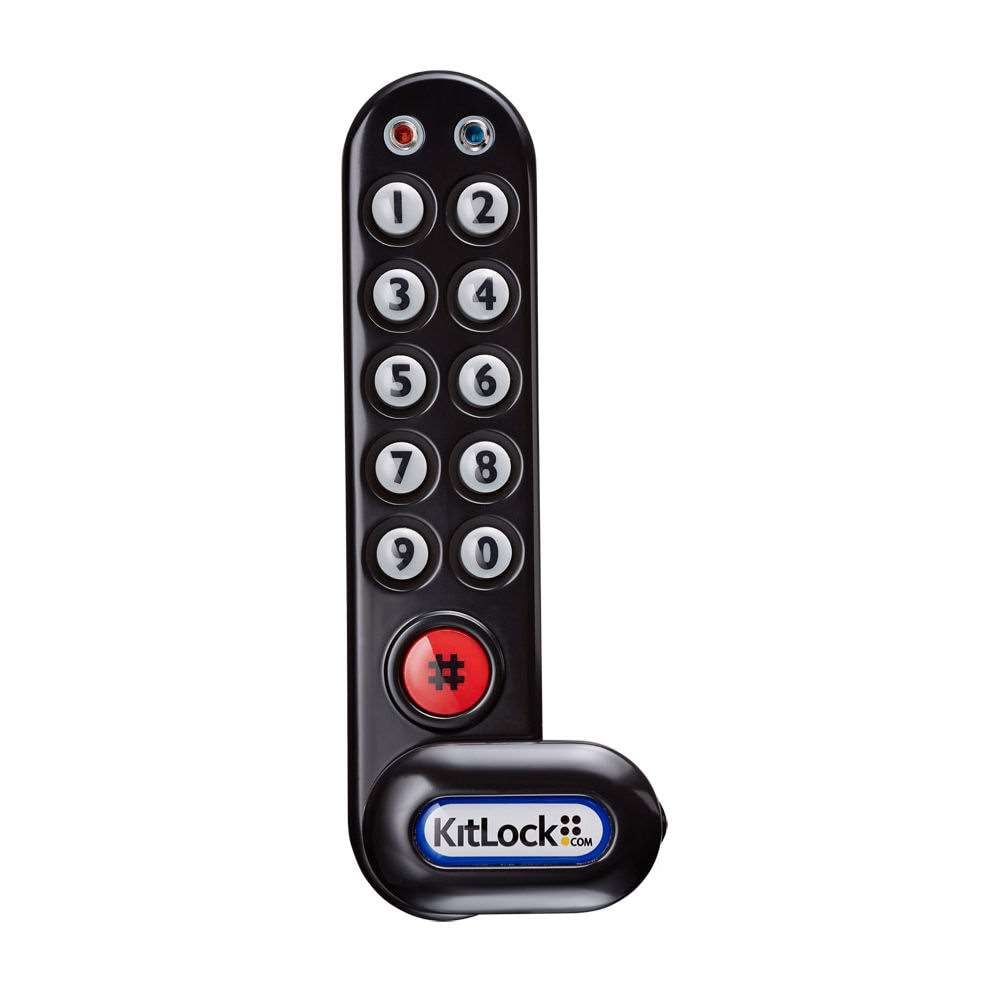

    • Multiple Finishes: Choose from silver grey, and black
    • Easy fit
    • Vertical, horizontal models
    • Battery override; PP3 battery can be placed against the external contacts and using the master code to gain entry

    Technical Information

    • Cam Fixing Point: 8mm (5/16”) square
    • Door Thickness: KitLock 1000 is supplied ready to fit to doors up to 19mm (3/4”) thick. For doors 6.35mm (1/4”), 12.7mm (1/2”), 25mm (1”), or 28.5mm (1-1/8″) thick, you will need to install the spare spindle provided. Save time and let us do this for you with our Custom Shell Size service.
    • IP Rating: IP54 (when fitted with optional gasket)

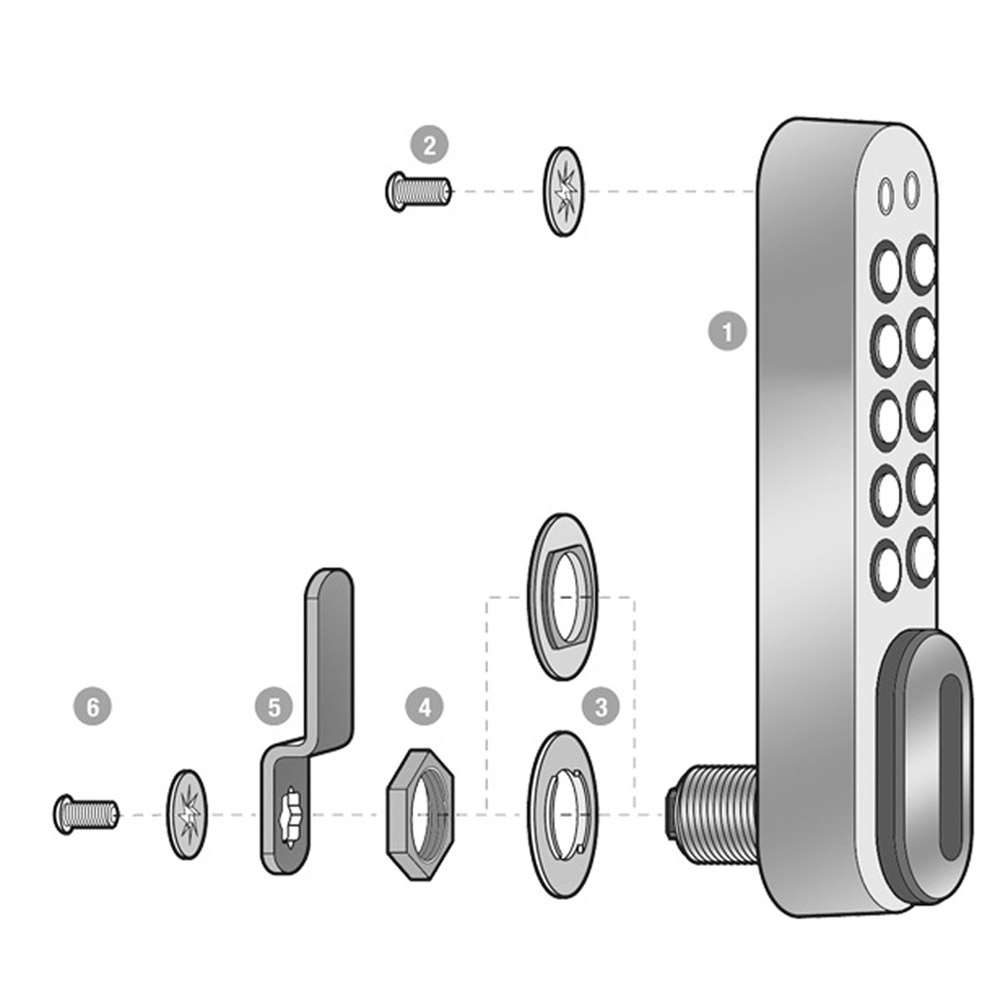

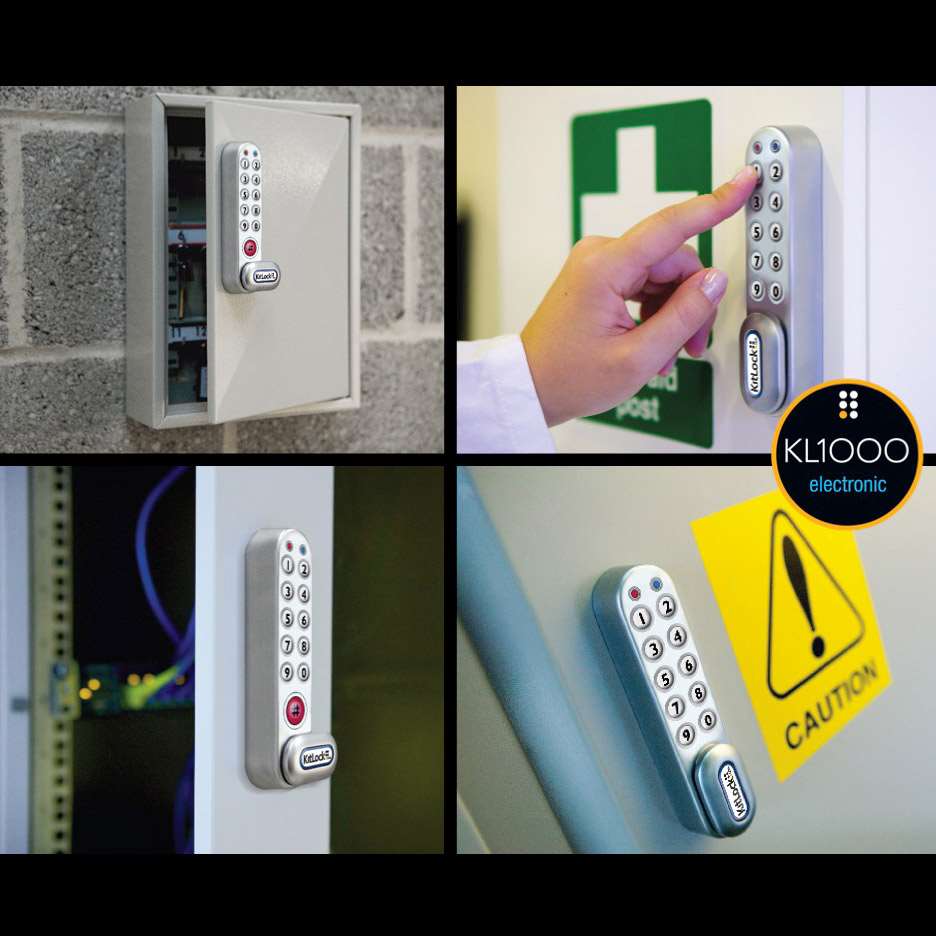

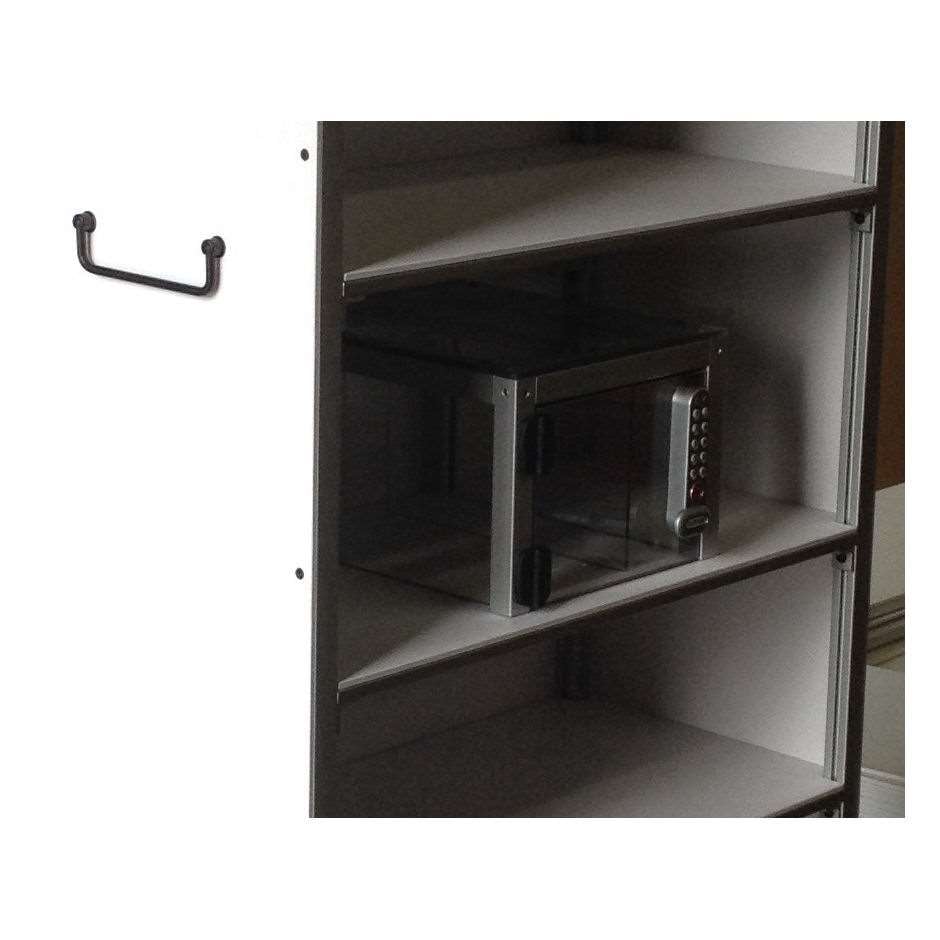

    KitLock 1000 are a quick retrofit for keyed cam locks supplied as standard on a wide range of lockers, cabinets and cupboards. The keyless locks are easy to fit, taking just a few minutes to remove the existing cam lock and then making an additional top fixing for the new lock. KL1000 can also be fitted to a locker or cabinet that does not have an existing locking device already fitted, giving the user immediate, simple, keypad access without the hassle of keys! Once in place the lock will perform 15,000 openings on just two AAA batteries. Common uses include cabinets, lockers, medical carts, gun boxes, safes for offices, schools, warehouses, hospitals, care homes, nurseries, hotels, leisure facilities, and the home.


    Manufacturer Codelocks
    Battery Type AAA
    Warranty 2 Year Manufacturer
    Handle Type Lever Handle Door Locks
    Access Type Keypad - Digits
    Locking Device Cam
    Brand KitLock

    Door requirements

    Battery Life 15,000 Cycles


    Code Length 4 digits

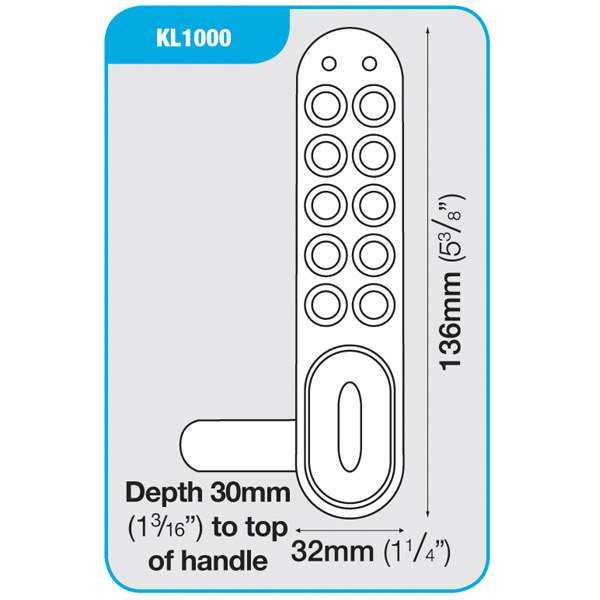

    Exterior Dimensions 5 3/8 in. (136mm) (H) x 1 1/4 in. (32mm) (W) x 1 3/16 in. (30mm) (D) to top of handle
    Door Thickness Minimum 1/4 in.
    Door Thickness Maximum 1 1/8 in.
    Exterior Dimensions 5 3/8 in. (136mm) (H) x 1 1/4 in. (32mm) (W) x 1 3/16 in. (30mm) (D) to top of handle
    Weight 1.5 lbs
