eMerge EL36-4M Elite

4-Door Access Control Platform

$1,702.99 See Price

In stock

Your Current Selections:
SKU: 620-100258P
  • Feature rich system designed for 4 – 128 multi-door, multi-site systems
  • Shared hardware and software architecture across all eMerge E3-Series means easy upgrades and expansion
  • Reliable, IT-friendly embedded Linux operating system eliminates:  Virus / spyware attacks; Operating System update dependency
  • eMerge Elite supplies the right amount of access control businesses need:  Starts at 4-doors / 8-reader capacity with out-of-the box expansion capability to 36-doors / 72-readers using modules and nodes
  • License key-based scalability up to 128 doors (Access Control Modules and Expansion Nodes also required)
  • Intuitive quick-start wizard allows for ultra-fast setup, saves hours of time versus traditional systems
  • Browser-based management enables system status and updates from any place, with any browser, on any operating system

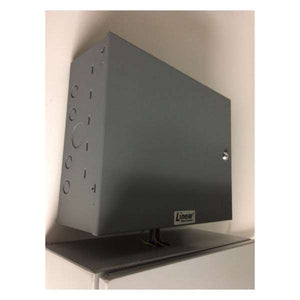

  • Metal enclosure with key lock
  • UL 294 Certified
  • Includes ODBC-compliant MySQL database with API
  • Model EL36-4M. Order p/n: 620-100258

Hardware Features

  • 100% solid state components for extended service life
  • High-speed processor handles multiple simultaneous users and more than 30 transactions per second
  • Integrated tamper switch and inputs / outputs for additional functionality
  • Optional Power over Ethernet (PoE) available (allows for backup power through a UPS)

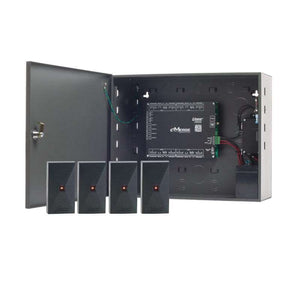

  • eMerge Elite includes: – 10-amp 12 VDC supervised power supply – Capable of housing one additional 2-door, or 4-door access control expansion module – Battery backup-ready enclosure

Software Features

  • One common software for all platforms, based on Linear’s industry leading access control software
  • Dashboard displays full system status at a glance including: Event and activity log; Customizable door diagrams/floor plans with factory default templates
  • Time-saving and convenient features: – Integrated card decoder – CSV flat file database import – Dynamic event filtering – Built in audit-trail – Automatic daily data backup to Micro SD or FTP-based storage – Usable from iPhone, iPad, Android or other mobile devices – E-mail, text message notifications – Simple, easy-to-use predefined reports – Built-in documentation library
  • Optional software updates for new feature and product enhancements
Linear Open and secure your doors with browser-based access control from Linear. The Elite appliance is a scalable 4-door system you can manage from anywhere you can get on the web. With no independent server, network, or dedicated workstation hardware needed, Elite lets you leverage your existing network infrastructure to deploy an entry-level, easy-to-use, expandable access system to control when and who can enter, and manage the entire application from any device, both locally and remotely. Backed by decades of experience, the full-featured software included with your self-contained hardware controller offers the type of programming you'd expect to find in systems for larger applications. The magic is in how simple Linear makes it to get up and running and start using it. After placing eMerge on your network, open your favorite web browser, type in the web address, and follow the setup wizard. Once you connect your door readers and electric locks (strikes, or maglocks), you can create access levels, user schedules, and begin issuing credentials. The Linear P-300HA is commonly used to control access with cards, while the Linear IEI SSW-iLW, (SSW-iLM for mullion mounts) and Prox.Pad give you additional options. A 10-amp power supply is included with the Elite product. This gives you enough wattage for the controller, and what you'll need at the door for your strikes and mags, up to 8 doors. An optional POE module is also available. The eMerge Elite platform comes with a software license for 4-doors, up-to 8 readers, and 5,000 users. Start with a couple perimeter and interior doors, and then as you need, simply purchase access control modules (2-door and 4-door) and expansion nodes (2-door and 4-door) to expand up to 36 doors. For facilities with larger user populations (up to 10,000), and/or the need to secure additional doors (up to 128), upgrade licenses are available. The Elite system is a step-up from eMerge Essential in capacity and features. Options to do badging, elevator control, timed anti-passback, one-time scheduled events, and threat level management are all turned on in Elite ensuring you're not caught flatfooted with a system incapable of handling your security needs.  The combination of dependable security and a full-featured system makes Elite a top-tiered choice for companies operating in the medical, industrial, retail, banking, transportation, and institutional fields of business.
Access Levels


Maximum Readers




Access Cards


Cards Per Person


Card Formats


Simultaneous System Users


User Defined Data Fields



18.75 (W) x 14.25 (H) x 6.5 (D) in. (47.6 cm x 36.2 cm x 16.5 cm)

Operating System

Embedded Linux


12V DC



On-board RAM

512MB DDR2 (333MHz)


8 GB Micro SD

Transactions Per Second

> 30





Time Specs




Online Transactions





eMerge, Linear


6 lbs


1 Year Manufacturer

Share your thoughts!

Let us know what you think...

What others are saying

There are no contributions yet.




Creating an account will allow you to easily place repeat orders, track them, and get first access to promotions and discounts!

Your privacy — along with your trust in our products and service — is very important to us. Rest assured GoKeyless RESPECTS your privacy. privacy policy

Continue as a Guest

Don't have an account? Sign Up

Customer Questions & Answers

  1. Q Can I hook up HID readers to this unit? answer now
    Asked by Fred on August 8, 2018 11:21 AM

    Yes, it will recognize Weigand input from HID readers.
